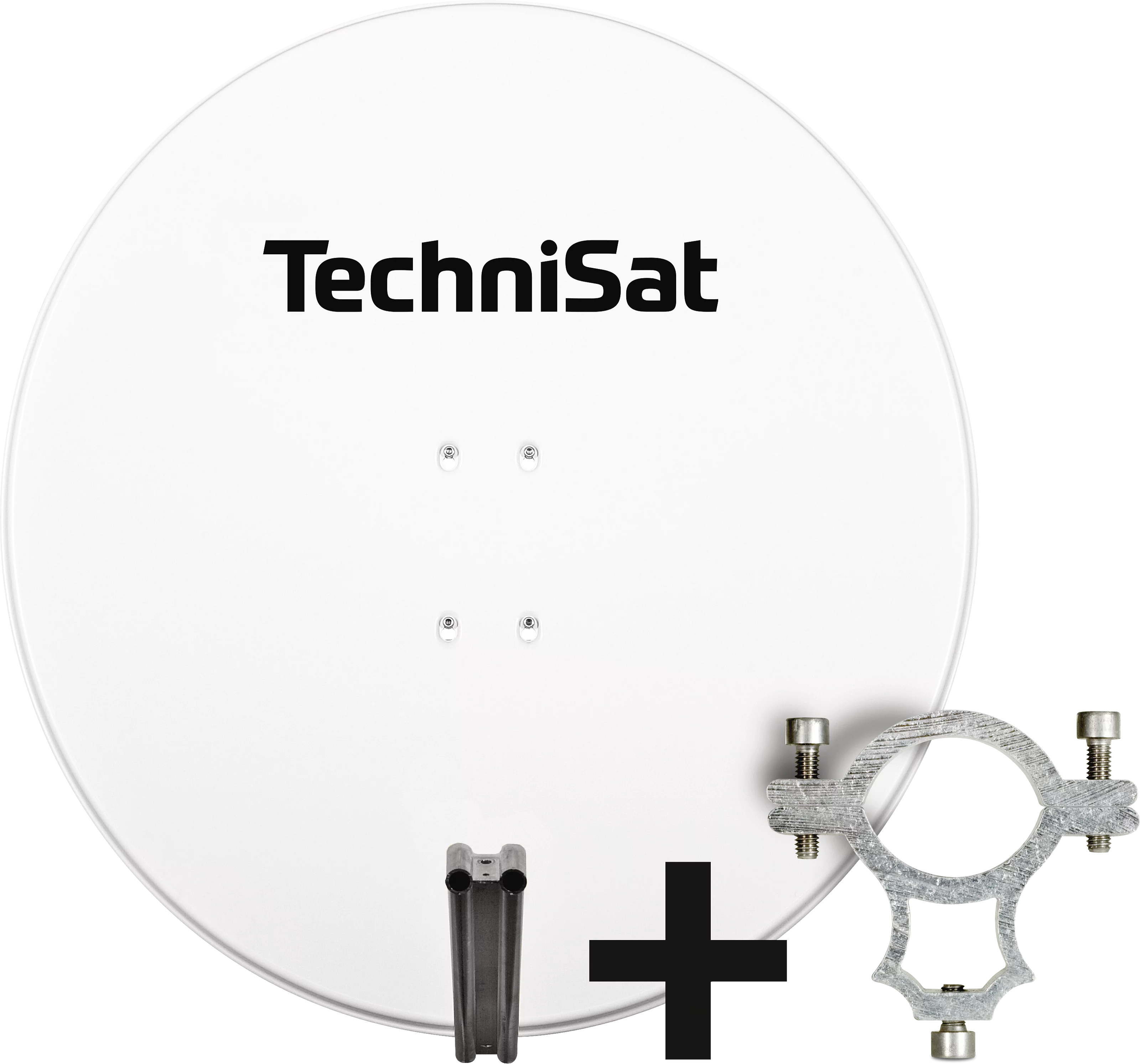

SATMAN 850 PLUS, with 40 mm retaining clip green
PLN 712.00*
SATMAN 850 PLUS, with 40 mm retaining clip
Digital Satellite dish with a diameter of 85 cm and completly pre-installed AZ/EL-mount including 40 mm LNB bracket.
PLN 712.00*
incl. VAT.
- The SATMAN 850 Plus is a high-quality, high-performance satellite dish made of premium aluminum with double-sided powder coating, guaranteeing exceptional weather resistance and long service life
- The satellite system is extremely powerful and easy to install thanks to the fully pre-assembled AZ/EL mount; the mast bracket is suitable for mounting on poles up to 6.5 cm in diameter
- The solid satellite dish with a diameter of 85 cm delivers stable and very good reception of free and encrypted TV and radio programs, including in UHD/4K, when optimally aligned
- Easy installation and secure hold: Every 40 mm LNB can be easily and stably mounted on the sturdy LNB clamp, e.g. the Black Edition TechniSat LNBs
- Scope of delivery: TechniSat SATMAN 850 PLUS, AZ/EL mount made of aluminum, 40 mm LNB clamp, stainless steel screws and washers, mounting instructions
Satellite dish antenna, AZ/EL bracket mount, LNB retaining clamp (40 mm), Screws, Instruction manual
The 85 cm offset mirror is made of first-class aluminum, powder-coated on both sides and is 100% rust-free. The associated AZ / EL bracket is also made from high-quality aluminum. All screws and washers are made of stainless steel. Thanks to the use of these materials, the outdoor system is extremely durable and absolutely weatherproof.
With the 6 color variants beige, polar white, slate gray, brick red, fir green and smiley yellow, the SATMAN 850 Plus adapts ideally to the respective environment.
Thanks to the special bowl holes, the mirror only needs to be hooked into the AZ / EL bracket and screwed tight.
Every 40 mm LNB can be mounted on the 40 mm LNB bracket. The Black Edition TechniSat LNBs are particularly suitable.
With the 6 color variants beige, polar white, slate gray, brick red, fir green and smiley yellow, the SATMAN 850 Plus adapts ideally to the respective environment.
Thanks to the special bowl holes, the mirror only needs to be hooked into the AZ / EL bracket and screwed tight.
Every 40 mm LNB can be mounted on the 40 mm LNB bracket. The Black Edition TechniSat LNBs are particularly suitable.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588285446 |
| Colour | fir/green |
| Item no. | 1285/1444 |
| Weight (Box) | 8,4 kg |
| Weight | 4,8 kg |
| Box | 87 x 91,5 x 23 cm |
| sonstiges | |
|---|---|
| bf_filter_diameter | 85 cm |
| bf_filter_austattung | without LNB |
| General characteristics | |
|---|---|
| Material strength | 1,6 mm |
| Coating | Powder-coated on both sites |
| Material | Aluminium |
| Technical data | |
|---|---|
| Rated measurement | 0,85 m |
| F/D | 0,67 |
| G/T | 17,2 |
| Gain | 38,2 dBi @11,3GHz |
| Offset angle | 21 ° |
| Mast Ø | 65 mm max. |
| Feed reception | for 40 mm LNB |
