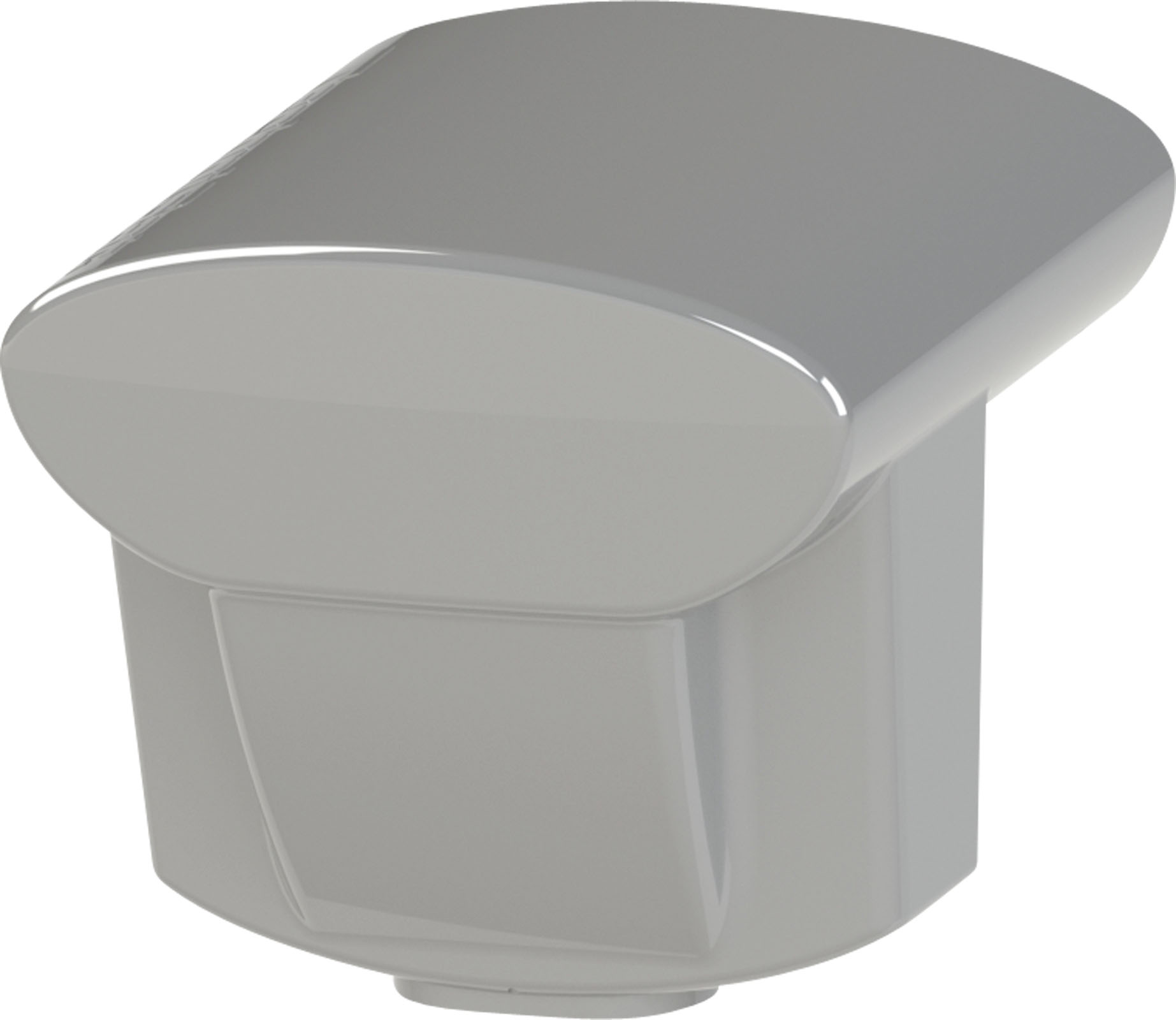

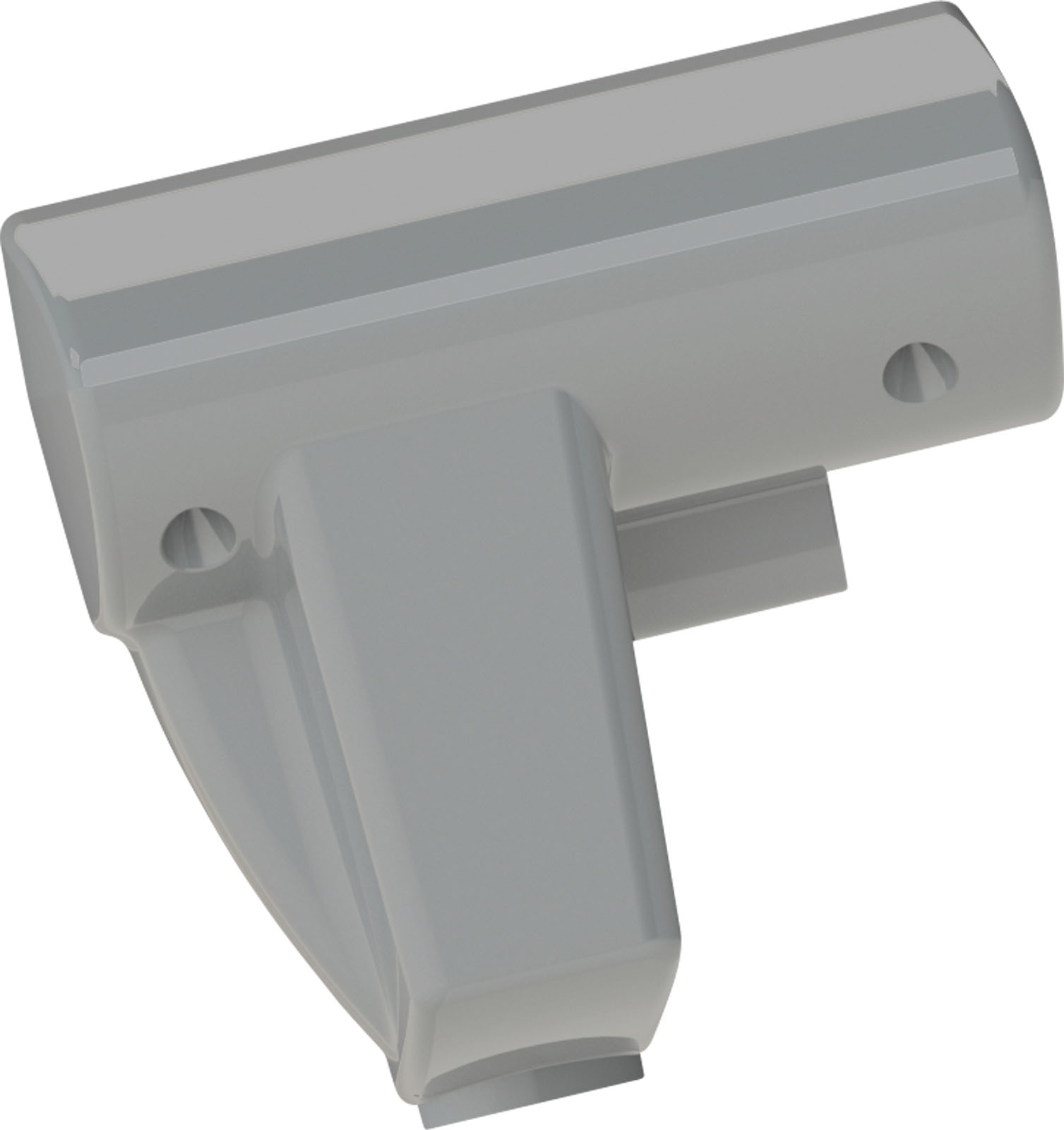

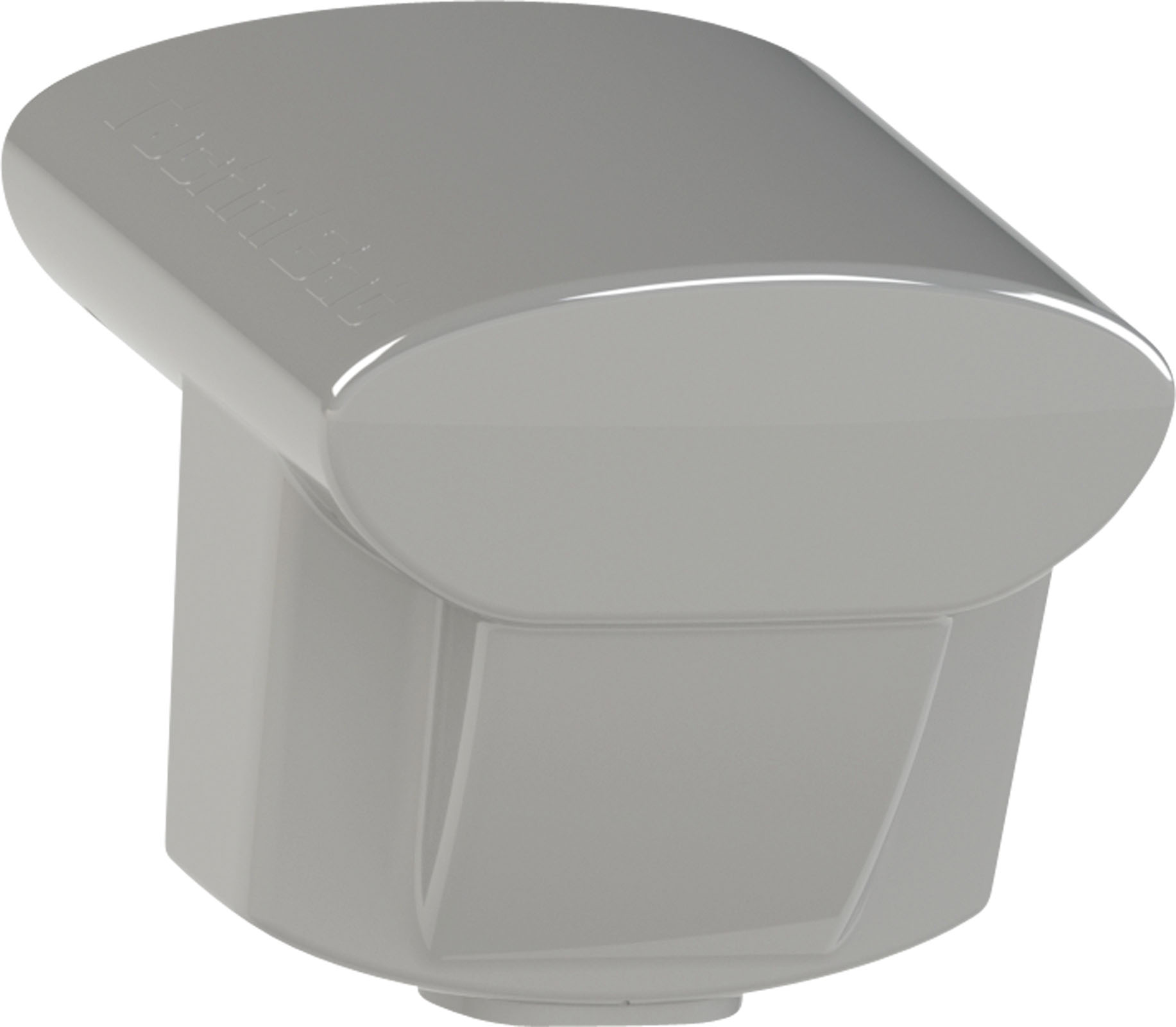

UNYSAT 24TN-LNB grey
PLN 360.00*
UNYSAT 24TN-LNB
SCR-LNB for 24 participants
PLN 360.00*
incl. VAT.
- 24 users on one cable
- SCR protocol according to EN50494 & EN50607
- Participants 1–8 work with EN50494 or EN50607.
- From participant 9 onward, only EN50607 is used.
- Passend für alle TechniSat SATMAN Spiegel
- Antenna alignment mode for easy positioning
UNYSAT-24TN-LNB
The UNYSAT-24TN-LNB can provide up to 24 participants via one coaxial cable with the complete programs of a satellite.
| Product Information | |
|---|---|
| Colour | grey |
| EAN | 4019588088245 |
| Item no. | 0000/8824 |
| Weight (Box) | 500 g |
| Weight | 440 g |
| Device (W x H x D) | 20 x 18,5 x 18,5 cm |
| Box | 21 x 21 x 19 cm |
| Local oscillator | |
|---|---|
| Accuracy | ± 1 MHz |
| Temperature drift | ± 2 MHz |
| Phase noise | -80 @10kHz |
| High band | 10,4 GHz |
| Low band | 10,4 GHz |
| LNB control | |
|---|---|
| Band switch | 22 kHz |
| DiSEqC | EN50494 & EN50607 |
| Vertical | 11,5 ... 14,5 V |
| Horizontal | 16 ... 19 V |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 90 % |
| Ambient temperature | -30 ... 60 °C |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | 1 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| Power consumption | max. 350 mA @13,5 V |
| Prepared for | |
|---|---|
| Number of clients | 24 |
| Number of orbit positions | 1 |
| Single-cable output | |
|---|---|
| Output frequency | 950 ... 2.150 MHz |
| Number of output channels | 24 |
| Frequency of the output channels | 975, 1025, 1075, 1125, 1175, 1225, 1275, 1325, 1375, 1425, 1475, 1525, 1575, 1625, 1675, 1725, 1775, 1825, 1875, 1925, 1975, 2025, 2075, 2125 MHz |
| Technical data | |
|---|---|
| Outputs | 1 |
| Skew | -20 ... 20 ° |
| Amplification | 55 dB |
| Feed reception | For SATMAN |
| Impedance | 75 Ω |
| Connector type | F socket |
