UNIX Twin Gold beige/orange
PLN 69.00*

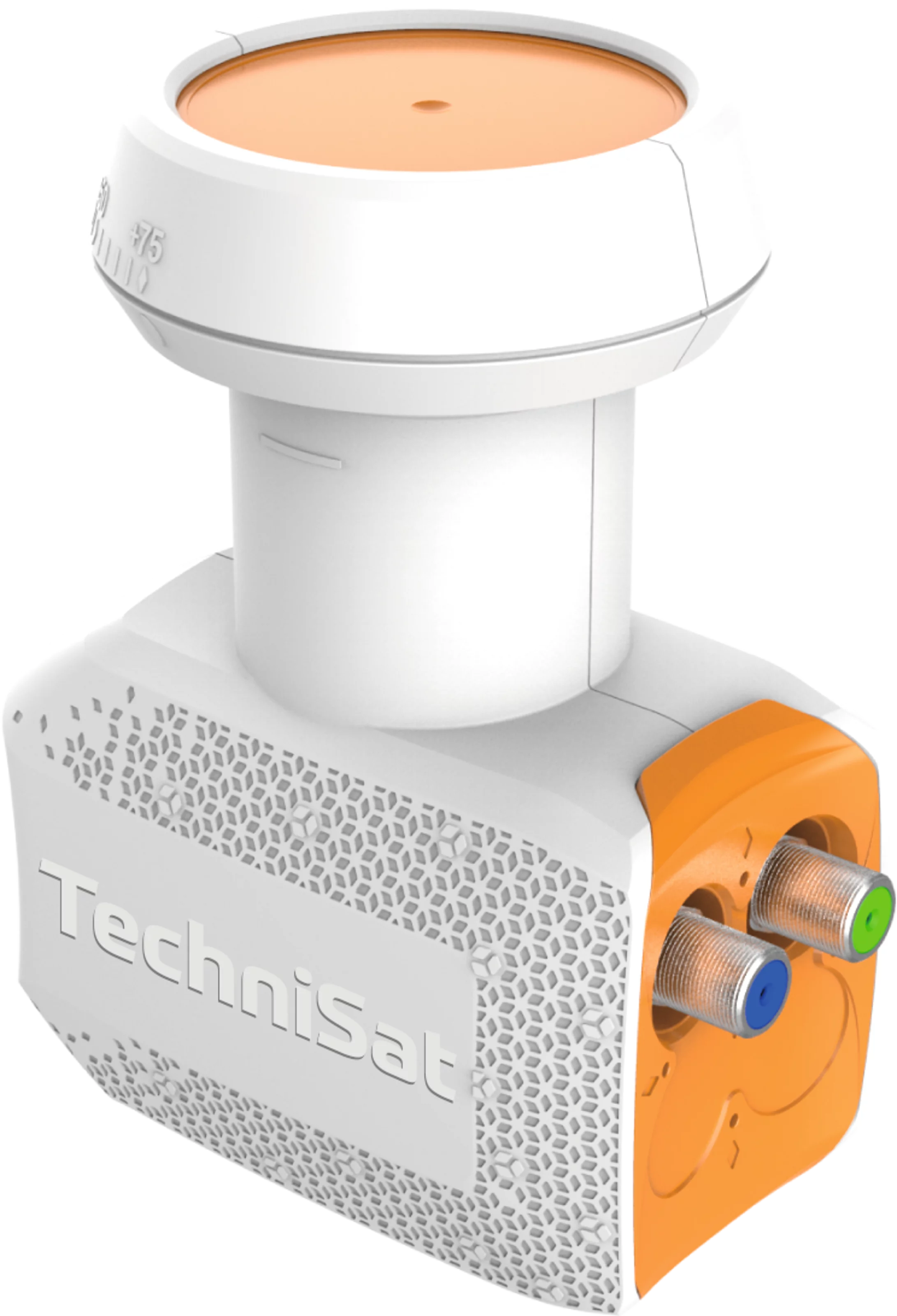

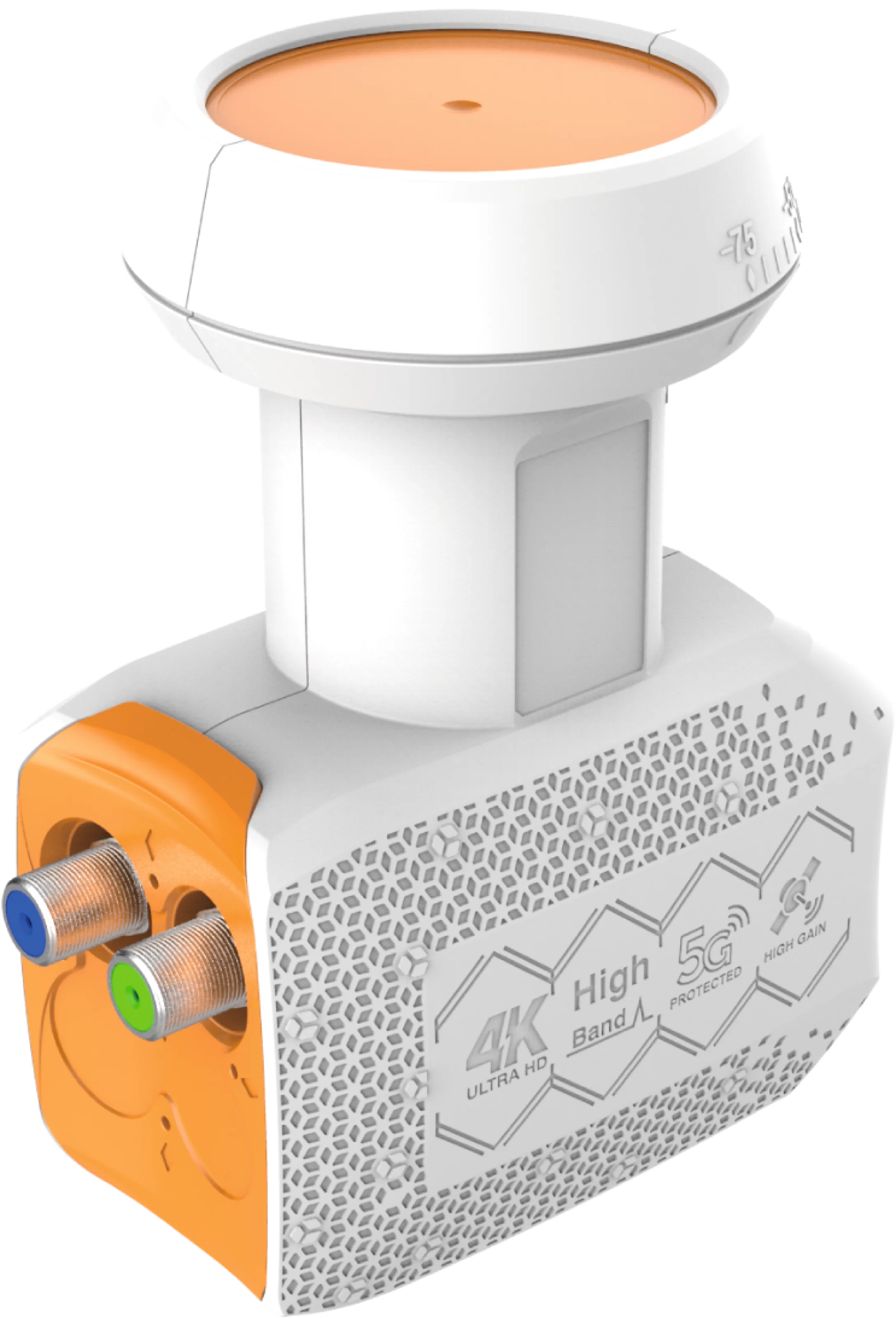

UNIX Twin Gold
High-qualitY twin converter for satellite installations with two receivers
PLN 69.00*
incl. VAT.
- Top-class reception performance for HD and UHD signals
- Simple and quick assembly
- High quality housing resistant to difficult weather conditions
- Very low noise figure
- Perfect for the TWIN decoder
- Low power consumption
High-qualitY satellite converter designed for use with a satellite dish equipped with a universal 40mm converter holder. The converter works with all DVB-S/DVB-S2 receivers. Used to receive satellite programs broadcast in the Ku band.
Recommended also for receiving programs in UHD/4K qualitY.
Equipped with two F outputs for connecting two decoders/TV sets or one device with a TWIN tuner.
Recommended also for receiving programs in UHD/4K qualitY.
Equipped with two F outputs for connecting two decoders/TV sets or one device with a TWIN tuner.
| Product Information | |
|---|---|
| EAN | 4019588768123 |
| Colour | beige/orange |
| Item no. | 76-4812-00 |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| LNB control | |
|---|---|
| Vertical | 10,5 ... 14 V |
| Horizontal | 16 ... 19 V |
| Band switch | 22 kHz |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 90 % |
| Ambient temperature | -30 ... 70 °C |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | 0,1 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 10,5 ... 19 V |
| Power consumption | max. 150 mA |
| Technical data | |
|---|---|
| Outputs | 2 |
| Impedance | 75 Ω |
| Feed reception | 40 mm |
| Connector type | f-connector |
| Amplification | 55 dB |
