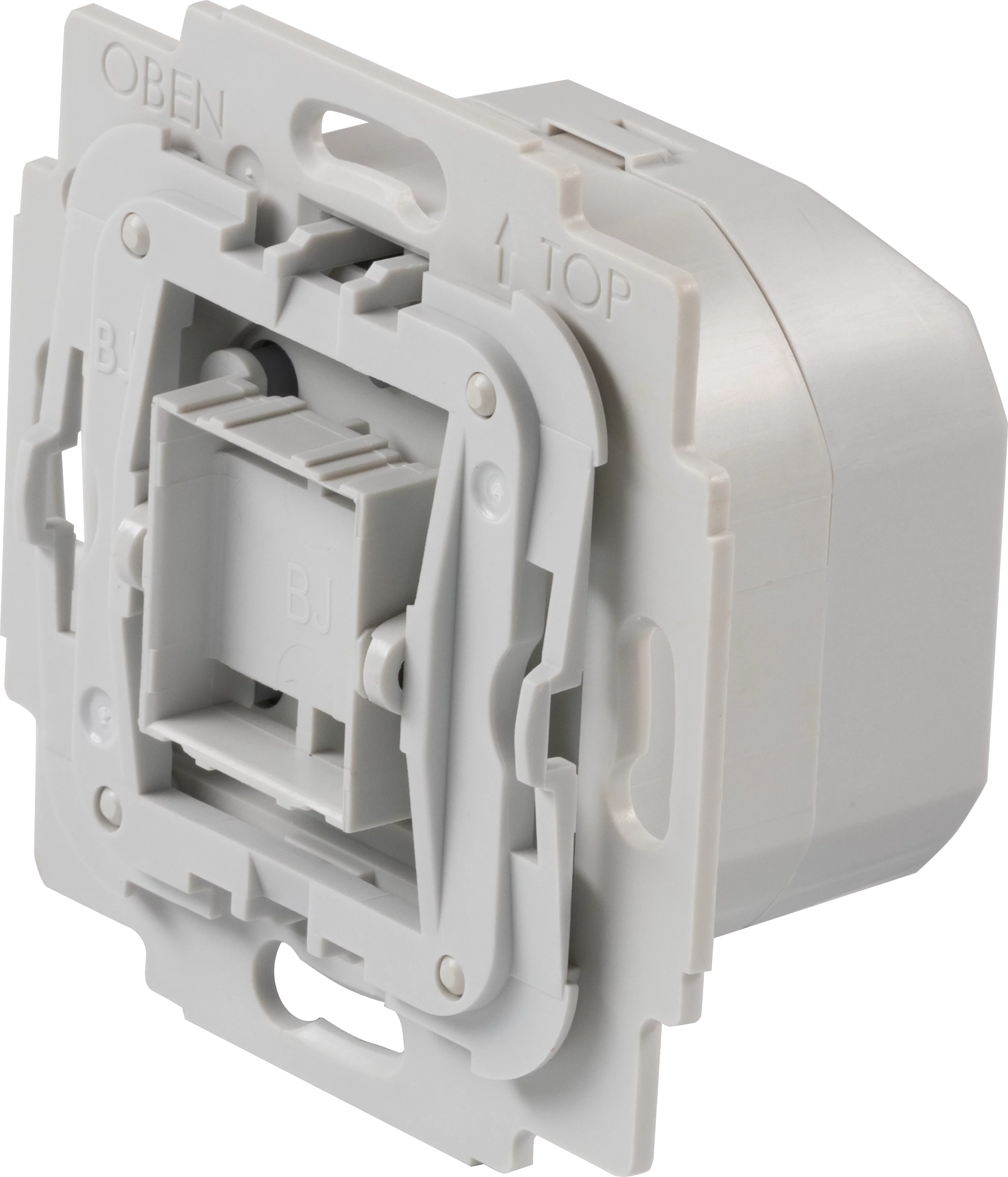

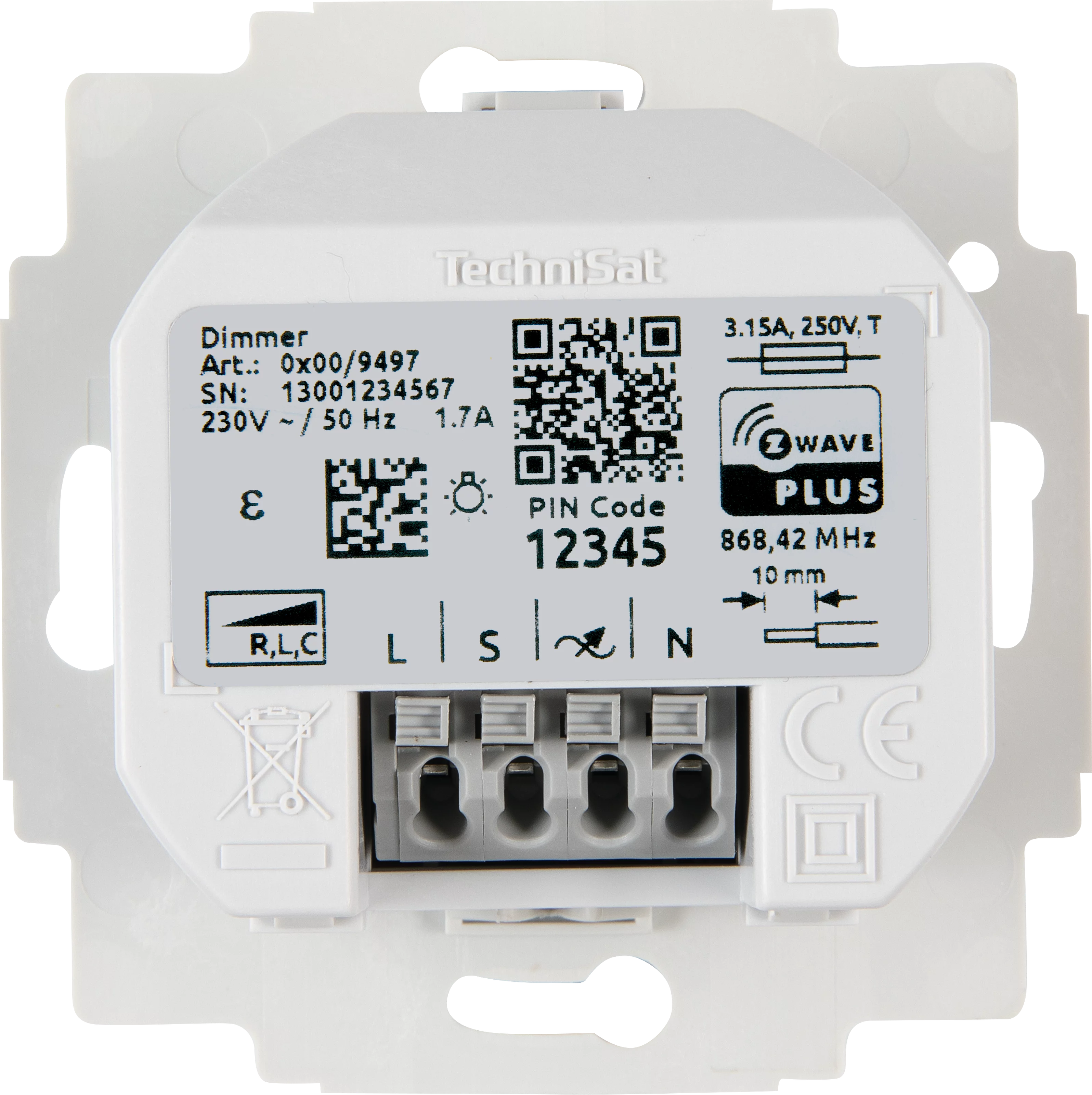

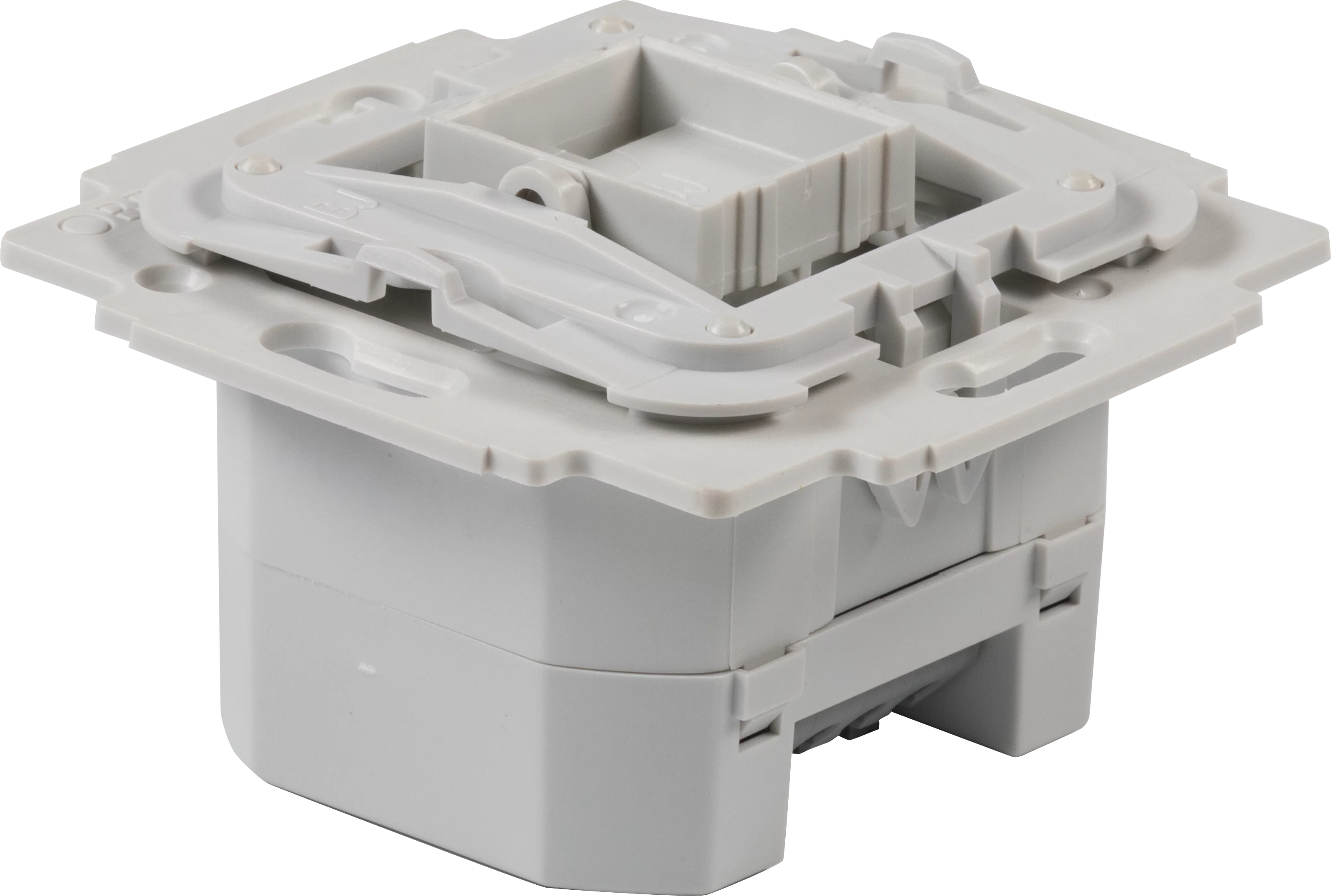

Dimmer flush mount comp. Busch-Jaeger light/gray
PLN 240.00*
Dimmer flush mount comp. Busch-Jaeger
Compatible with Busch-Jaeger switch ranges
PLN 240.00*
incl. VAT.
- Suitable for Busch-Jaeger switch systems: the flush-mounted unit replaces the existing module. Existing wiring, rocker switches, and cover frames are reused
- Integration into the smart home network also enables power consumption measurement and time-controlled scenarios. A Z-Wave controller is required for integration
- We rely on Z-Wave as a secure wireless protocol
Dimmer insert, compensation frame, assemblY instructions, fastening screws
The TechniSat dimmer controls the brightness of a ceiling lamp, for instance, via the rockers. At the same time, the system can also be integrated into a Z-Wave Smart Home system in order to set dazzling lighting accents or to create a special mood with lighting.
What's more, you can determine how much electricity you use and the dimmer can be integrated into complex schemes in smart home systems.
The dimmer can be installed in standard flush-mounted boxes (DIN 49073-1).
Installation:
The smart TechniSat flush-mounted insert is simply exchanged for the existing switch insert. The rocker and frame of the existing switch remain in place and are still used.
Compatible switch ranges (Busch-Jaeger):
Busch-Duro 2000® SI Busch-Duro 2000® SI Linear Reflex SI Reflex SI Linear future® linear solo® carat® Busch-axcent® alpha Busch-balance® SI
Compatible smart home systems:
All Z-Wave systems TechniSat Smart Home
What's more, you can determine how much electricity you use and the dimmer can be integrated into complex schemes in smart home systems.
The dimmer can be installed in standard flush-mounted boxes (DIN 49073-1).
Installation:
The smart TechniSat flush-mounted insert is simply exchanged for the existing switch insert. The rocker and frame of the existing switch remain in place and are still used.
Compatible switch ranges (Busch-Jaeger):
Compatible smart home systems:
| Product Information | |
|---|---|
| Colour | light/gray |
| EAN | 4019588394971 |
| Item no. | 0300/9497 |
| Weight (Box) | 130 g |
| Weight | 70 g |
| Device (W x H x D) | 7 x 7 x 4,5 cm |
| Box | 11,5 x 10,5 x 5,8 cm |
| Ambient storage conditions | |
|---|---|
| Temperature | -20 ... 60 °C |
| Humidity | 5 ... 90 % |
| Ambient operating conditions | |
|---|---|
| IP class | 20 |
| Humidity | 10 ... 75 % |
| Ambient temperature | 5 ... 35 °C |
| funk communication | |
|---|---|
| Telecommunication | Z-Wave Plus |
| funk_security_s2 | Yes |
| funk_smartstart | Yes |
| Range inside | max. 40 m |
| operating frequency | 868,42 MHz |
| Repeater function | Yes |
| Power supply | |
|---|---|
| Frequency | 50 Hz ± 10 % |
| Nominal voltage | 230 V ± 10 % |
| Effective output | 200 W |
| Power consumption | < 3 mA (without load) |
