DIGITRADIO UP 55 TEM Weiß
PLN 399.00*
DIGITRADIO UP 55 TEM
Set with flush-mounted radio and flush-mounted speaker
PLN 399.00*
incl. VAT.
- Compact digital radio: The flush-mounted radio consists of two units. Radio and speaker can be installed flexibly, e.g. in a double flush-mounted box, either vertically or horizontally
- Flexible: The radio is delivered without a cover frame, both inserts are 55 mm high and wide. They can be combined with standard cover frames from well-known switch program manufacturers
- Display/Operation: The OLED display shows station names and has a dimming function. Additionally, 20 DAB Plus and FM stations can be saved as favorites
- Features: The digital radio with sleep and alarm timer receives analog and digital radio stations and also allows wireless music streaming via Bluetooth
- Good to know and not a defect: Turn off power circuit before installation and only turn it back on after installing the radio and attaching the display, otherwise no display will appear
1x flush-mounting radio, 1x flush-mounting speaker with speaker cable (24 cm long), instruction manual

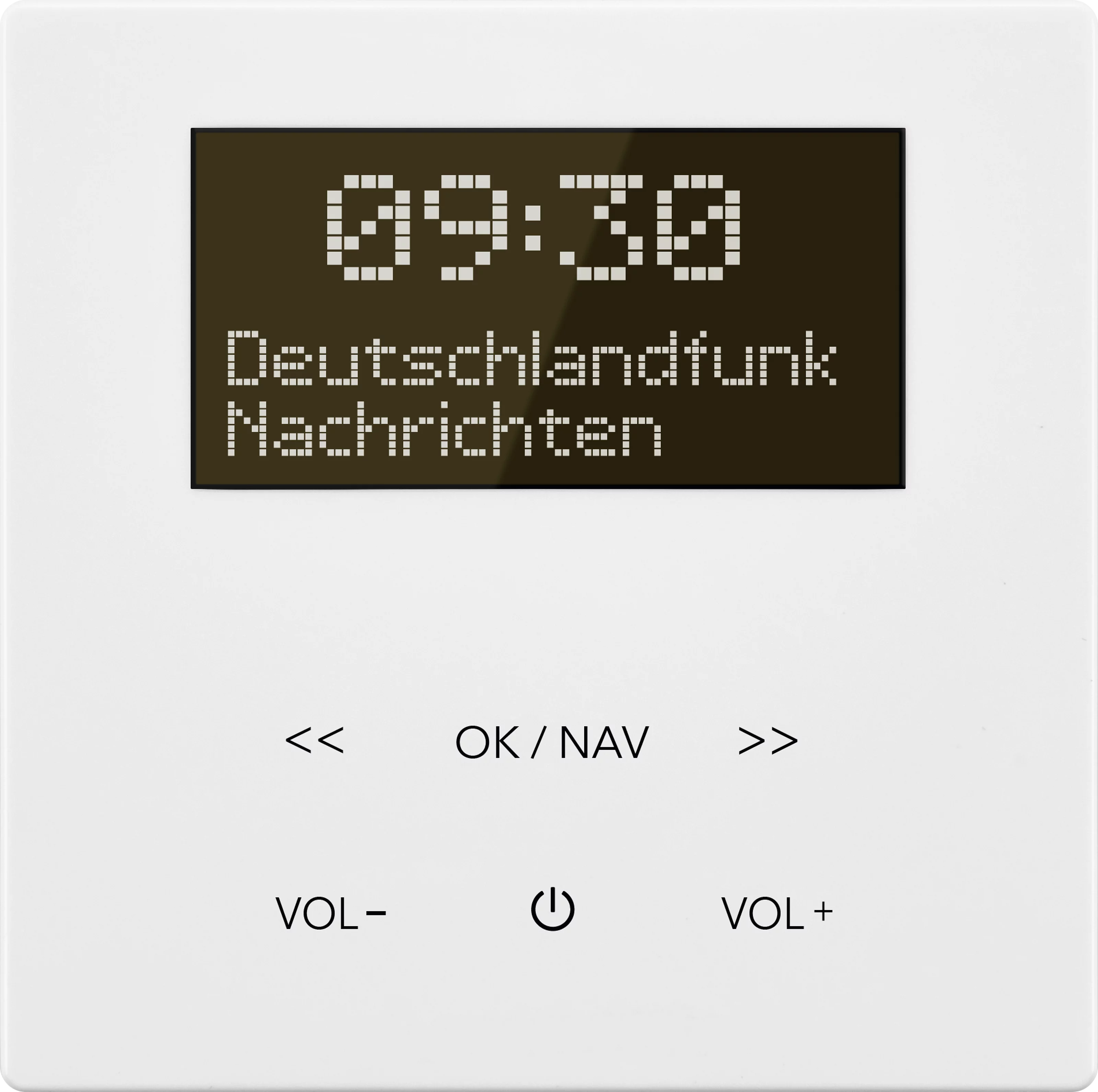

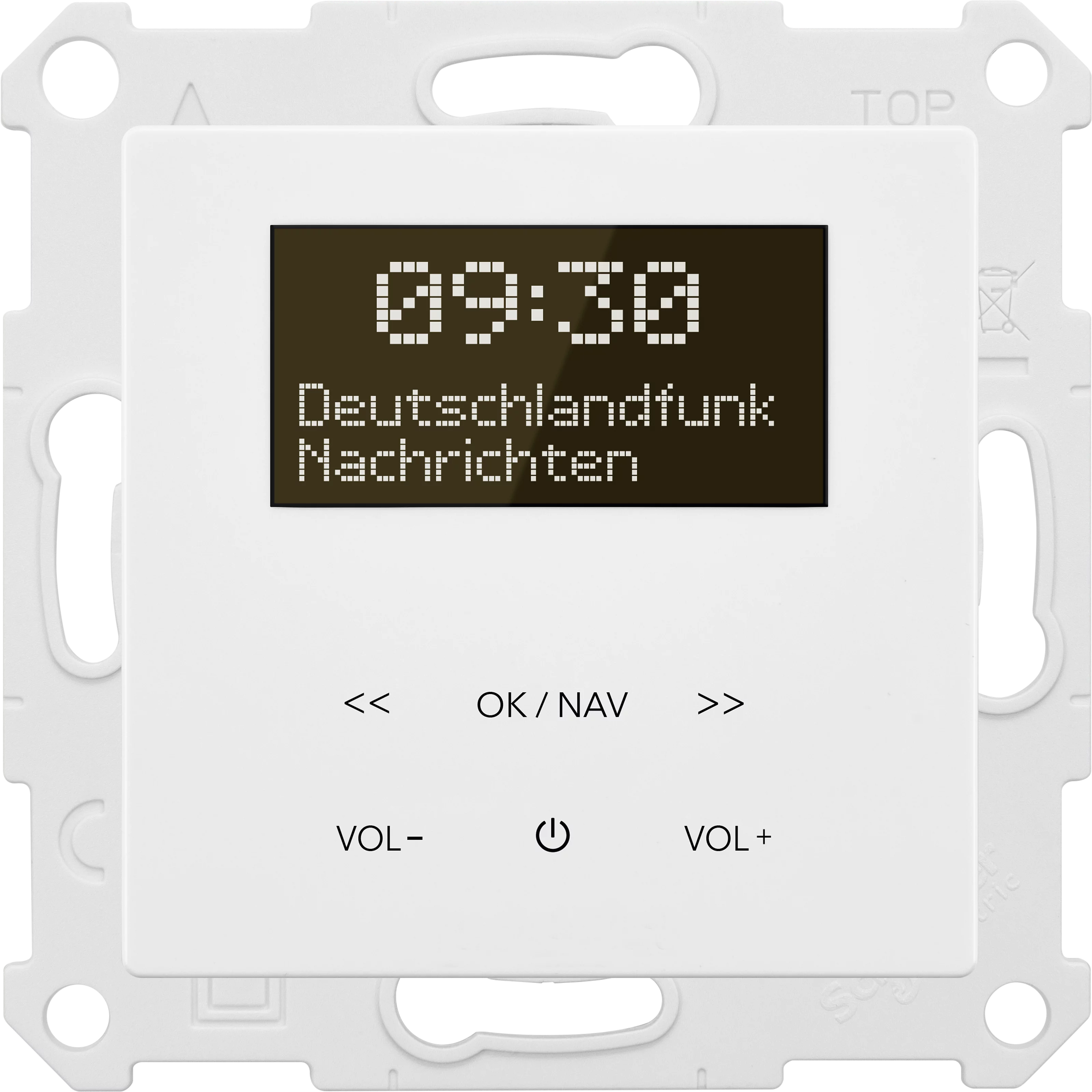

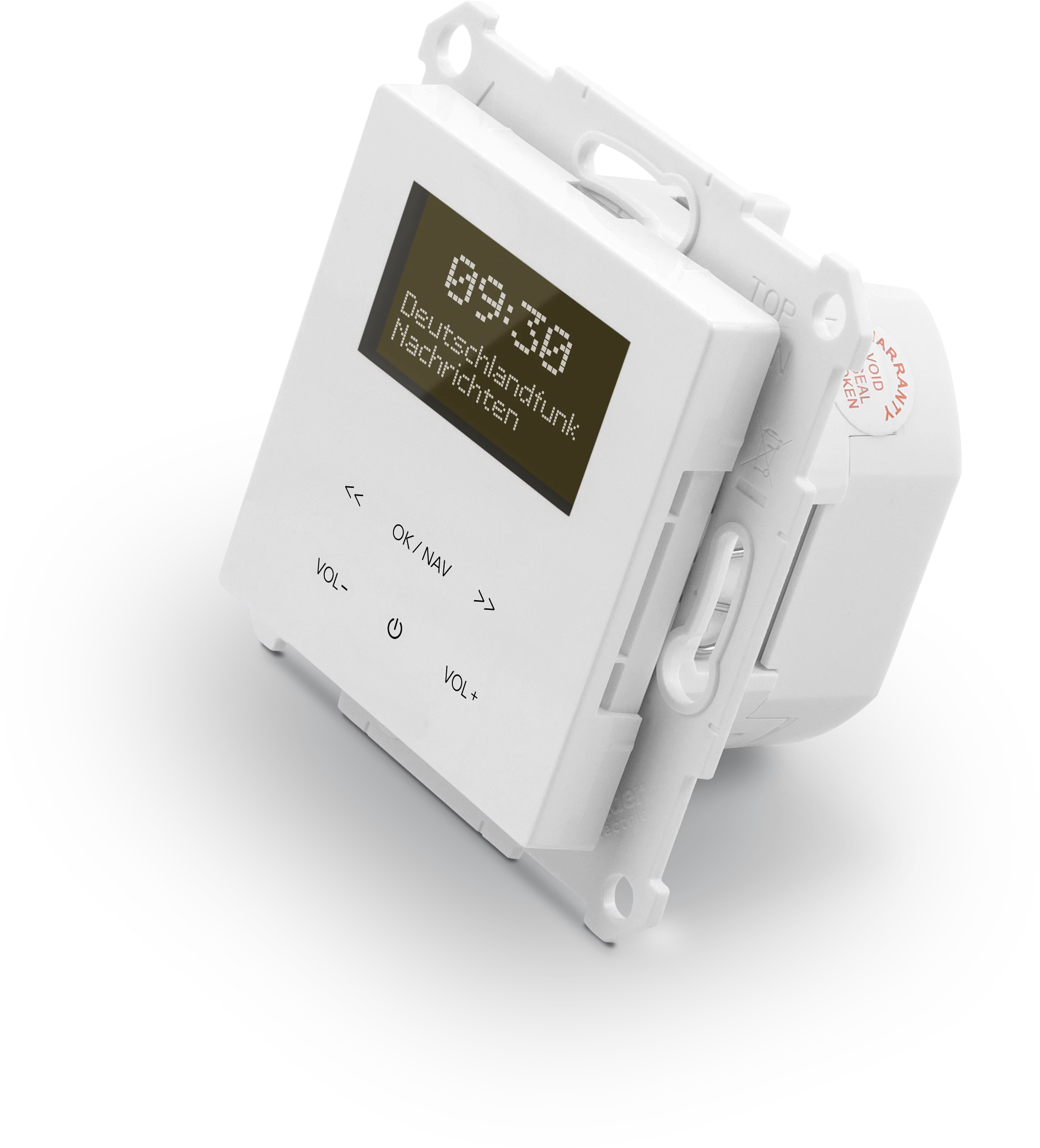

The TechniSat DIGITRADIO UP 55 is a compact, flush-mounted radio for flexible installation, for instance in a double flush-mounted socket. The device consists of two inserts: a flush-mounted radio with OLED display and touch operating panel, and a flush-mounted speaker. Both inserts measure 55 x 55 mm and can thus be combined with virtually all commercially-available mounting frames produced by renowned switch programme manufacturers. If desired, you can connect a second speaker to the radio section. The radio receives broadcasts via DAB+ and FM, and music streaming via Bluetooth, producing excellent sound quality from the speaker. Ideal for playlists and playing music via your smartphone. Featuring DAB+ and FM station memories, each with capacity for 20 stations. The time display with alarm function and sleep timer also makes the DIGITRADIO UP 55 an attractive proposition as a space-saving radio alarm. This unit is intended for flush-mounting only. Connection to the mains power may only be performed by certified electricians. Please note that a mounting frame is not included and you should continue to use your existing mounting frame.
| Product Information | |
|---|---|
| EAN | 4019588203914 |
| Colour | white |
| Item no. | 0020/3901 |
| Weight (Box) | 370 g |
| Weight | 170 g |
| sonstiges | |
|---|---|
| bf_filter_operating_mode | Mains operation |
| bf_filter_austattung | Bluetooth |
| bed_schutzklasse | IP 20 |
| radio_typ_unterputzradio | Ja |
| abmasse_stationaer | Yes |
| WLAN | |
|---|---|
| WLAN | 802.11 a / b / g / n (2.4 GHz and 5 GHz band supported) |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 - 75 % relative air humidity (non-condensing) |
| Ambient temperature | 5 - 35 °C |
| Bluetooth Version & Profile | |
|---|---|
| Bluetooth version | 5 |
| AVRCP (Audio Video Remote Control Profile) | Yes |
| A2DP (Advanced Audio Distribution Profile ) | Yes |
| Display | |
|---|---|
| Type | OLED |
| Resolution (vertical and horizontal) | 128x64 |
| Dimmable | Yes |
| General characteristics | |
|---|---|
| Colour | Front: RAL 9016, part: RAL 9010 |
| Handling/comfort | |
|---|---|
| Alarm | Yes |
| Sleep timer | Yes |
| Snooze | Yes |
| Favourites programme manager FM | 20 |
| Favourites programme manager DAB+ | 20 |
| Loudspeakers | |
|---|---|
| Output performance | 2x 2 W (RMS) for optional 2nd speaker |
| Mono speakers | Yes |
| Equalizer | Yes |
| Network & communication | |
|---|---|
| Bluetooth | Yes |
| Power consumption | |
|---|---|
| Standby | 0,5 W |
| Power consumption in standby mode with active network connection | 0,5 W |
| In operation | 6 W max. |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Radio / reception | |
|---|---|
| DAB+ | 174 - 240 MHz |
| FM/RDS | 87,5 - 108 MHz |
| Aerial | DAB / FM cable antenna |
| Radio type | |
|---|---|
| stationary radio | Yes |
| Supported formats & codecs | |
|---|---|
| Audio-Formats | MP3, FLAC, WMA, WAV, AAC+, AAC |
