CABLE CE HD RG6 white
CABLE CE HD RG6
Premium tripple screened RG6 coaxial cable , 120 dB screening
Content:
250 metre
(PLN 40,000.00 / 1 metre)
- Innenleiter aus massivem hochreinen Elektrolytkupfer!
- Physikalisch geschäumtes, stabiles PE-Dieelektrikumg= sehr gute Dämpfung und Alterungsbeständigkeit!
- Alufolie geklebt, dadurch erleichterte Steckermontage
- Geflecht aus verzinntem Kupfer; große optische Bedeckung. Sehr gute Leitfähigkeit.

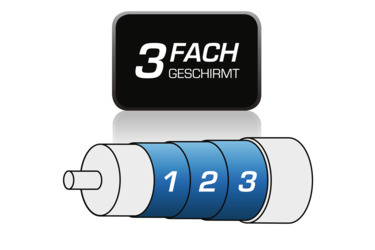

- 2. Alufolie geklebt. Komplettiert den 3-lagigen Außenleiter, der für beste Schirmeigenschaften sorgt!
- Erfüllt EN 50117/ Schirmungsklasse A+
100m reel
This product is manufactured in Germany and represents the highest quality standards. Precise workmanship and strict controls ensure long-lasting reliability.
The CoaxSat 120-4.6 is a triple-shielded premium coaxial cable, ideal for signal transmission in broadband cable networks. Its very low transfer impedance makes it perfectly suited for the reliable transmission of sensitive DOCSIS signals used for internet and VoIP. Only high-quality electrolytic copper with a purity level of ≥ 99.99% is used in the manufacture of this cable. Meter markings on the cable facilitate handling. Naturally, this first-class cable also meets the stringent requirements of cable network operators.
| Product Information | |
|---|---|
| EAN | 4019588769540 |
| Cable length | 250 m |
| Colour | white |
| Item no. | 76-4954-00 |
| Weight (Box) | 518 g |
| Weight | 196 g |
| Attenuation | |
|---|---|
| 65 MHz | 5,7 |
| 100 MHz | 7 |
| 200 MHz | 9,8 |
| 300 MHz | 12,4 |
| 450 MHz | 14,43 |
| 862 MHz | 20,01 |
| 1000 MHz | 21,49 |
| 1350 MHz | 24,5 |
| 1750 MHz | 27,8 |
| 2050 MHz | 30,2 |
| 2250 MHz | 32,3 |
| Technical data | |
|---|---|
| Frequency range | 5 ... 3.000 MHz |
| Impedance | 75 Ω (± 3) |
| Inner cable diameter | 1,02 mm (18AWG) |
| Inner cable material | Copper bare (OFC) |
| Isolation | Zell-PE |
| Diameter dielectric | 4,8 mm (± 0,1) |
| Outer cable | 1x Alum. foil + 1x tinned coppper braiding + 1x Alum. foil |
| Sheath | PVC, withe |
| Diameter with coating | 6,9 mm (± 0,2) |
| Bending radius | ≥ 70 mm |
| Capacity | 52 pF |
| Shrinkage factor | 0,85 |
