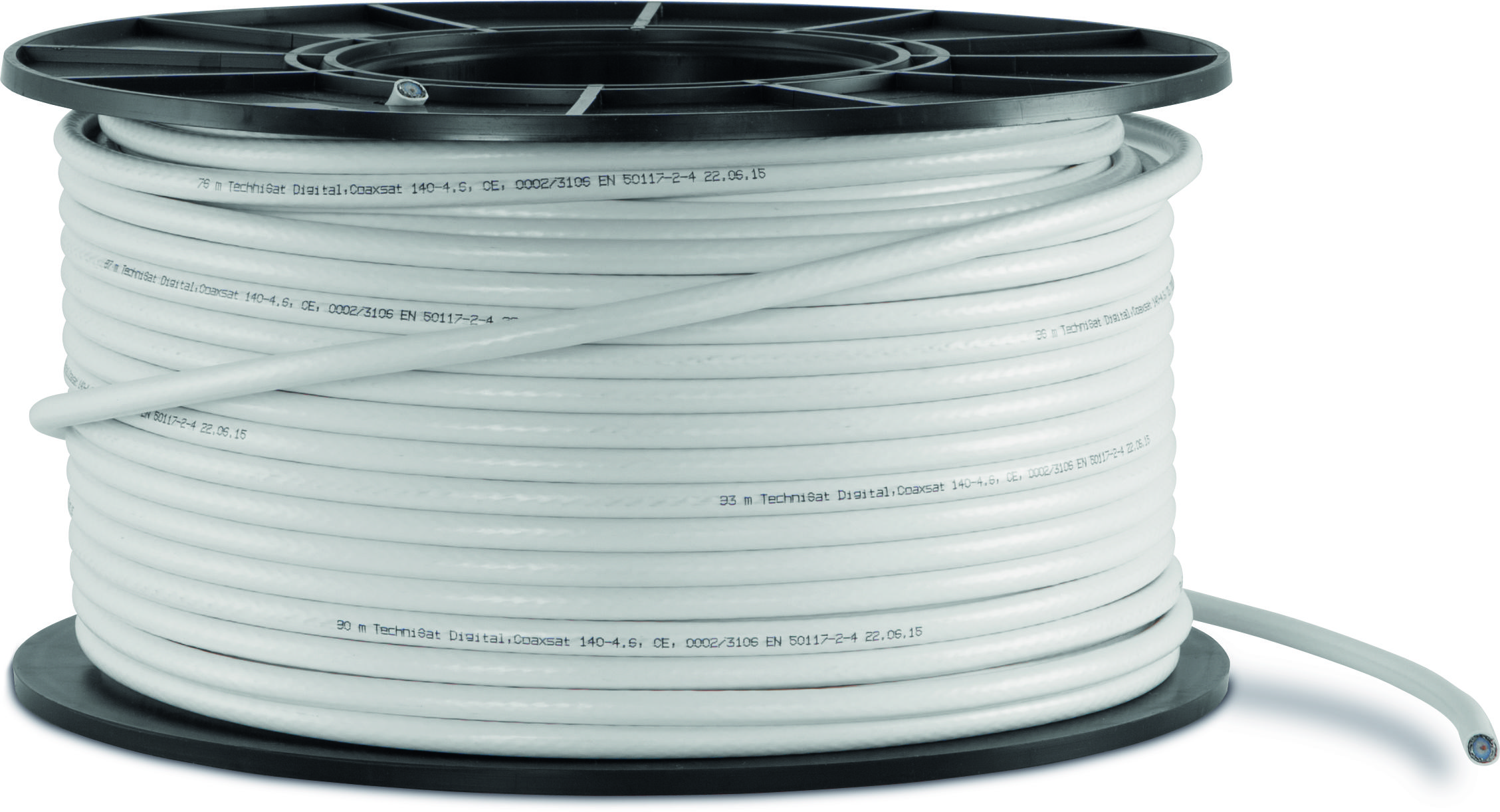

COAXSAT 140-4.6, 100 m reel white
PLN 770.00*
COAXSAT 140-4.6, 100 m reel
High-end quadruple screened RG6 coaxial cable with 140 dB screening
PLN 770.00*
incl. VAT.
Content:
100 metre
(PLN 7.70 / 1 metre)
- Inner conductor made of solid, high-purity electrolytic copper!
- Physically foamed, stable PE dielectric = excellent attenuation and aging resistance!
- Aluminum foil laminated, making connector installation easier.
- Braided with tinned copper; large optical coverage. Very good conductivity.
- Complies with EN 50117 / Shielding class A+
100m reel
This product is manufactured in Germany and represents the highest quality standards. Precise workmanship and strict controls ensure long-lasting reliability.
The CoaxSat 140-4.6 is a quadruple-shielded, high-end coaxial cable with a shielding effectiveness of 140 dB. It is ideally suited for signal transmission in broadband cable networks and satellite distribution systems. Due to its very low transfer impedance, it is also perfectly suited for the reliable transmission of sensitive DOCSIS signals used for internet and VoIP. Only high-quality electrolytic copper with a purity level of ≥ 99.99% is used in the cable's construction. Meter markings on the cable facilitate handling. Naturally, this premium cable also meets the stringent requirements of cable network operators.
| Product Information | |
|---|---|
| Coil length | 100 m |
| EAN | 4019588231061 |
| Cable length | 100 m |
| Colour | white |
| Item no. | 0002/3106 |
| Weight (Box) | 6,5 kg |
| Weight | 6,13 kg |
| Device (W x H x D) | 27,5 x 27,5 x 14,5 cm |
| Box | 27,5 x 27,5 x 14,5 cm |
| Attenuation | |
|---|---|
| 5 MHz | 0,48 |
| 10 MHz | 2,2 |
| 25 MHz | 3 |
| 45 MHz | 4 |
| 100 MHz | 6,1 |
| 200 MHz | 8,7 |
| 300 MHz | 9,6 |
| 450 MHz | 13,7 |
| 800 MHz | 18,5 |
| 1000 MHz | 20,5 |
| 1350 MHz | 23,5 |
| 1750 MHz | 25,6 |
| 2050 MHz | 29,4 |
| 2250 MHz | 30,5 |
| Return loss | |
|---|---|
| 5 - 30 MHz | ≥ 28 dB |
| 30 - 65 MHz | ≥ 28 dB |
| 65 - 470 MHz | ≥ 28 dB |
| 470 - 1800 MHz | ≥ 27 dB |
| 1800 - 2450MHz | ≥ 20 dB |
| Technical data | |
|---|---|
| Frequency range | 5 ... 3.000 MHz |
| Impedance | 75 Ω (± 3) |
| Inner cable diameter | 1 mm (18AWG) |
| Inner cable material | Copper bare (OFC) |
| Isolation | Zell-PE |
| Diameter dielectric | 4,65 mm (± 0,1) |
| Outer cable | 1x Alum. foil + 1x tinned coppper braiding + 1x Alum. foil |
| Sheath | PVC, withe |
| Diameter with coating | 7 mm (± 0,2) |
| Bending radius | ≥ 50 mm |
| Capacity | 55 pF |
| Shrinkage factor | 0,85 |
| Shielding factor | ≥ 140 dB ≙ Klasse A+ |
| Transfer impedance | |
|---|---|
| 5MHz | ≤ 0,7 |
| 30 MHz | ≤ 0,15 |
