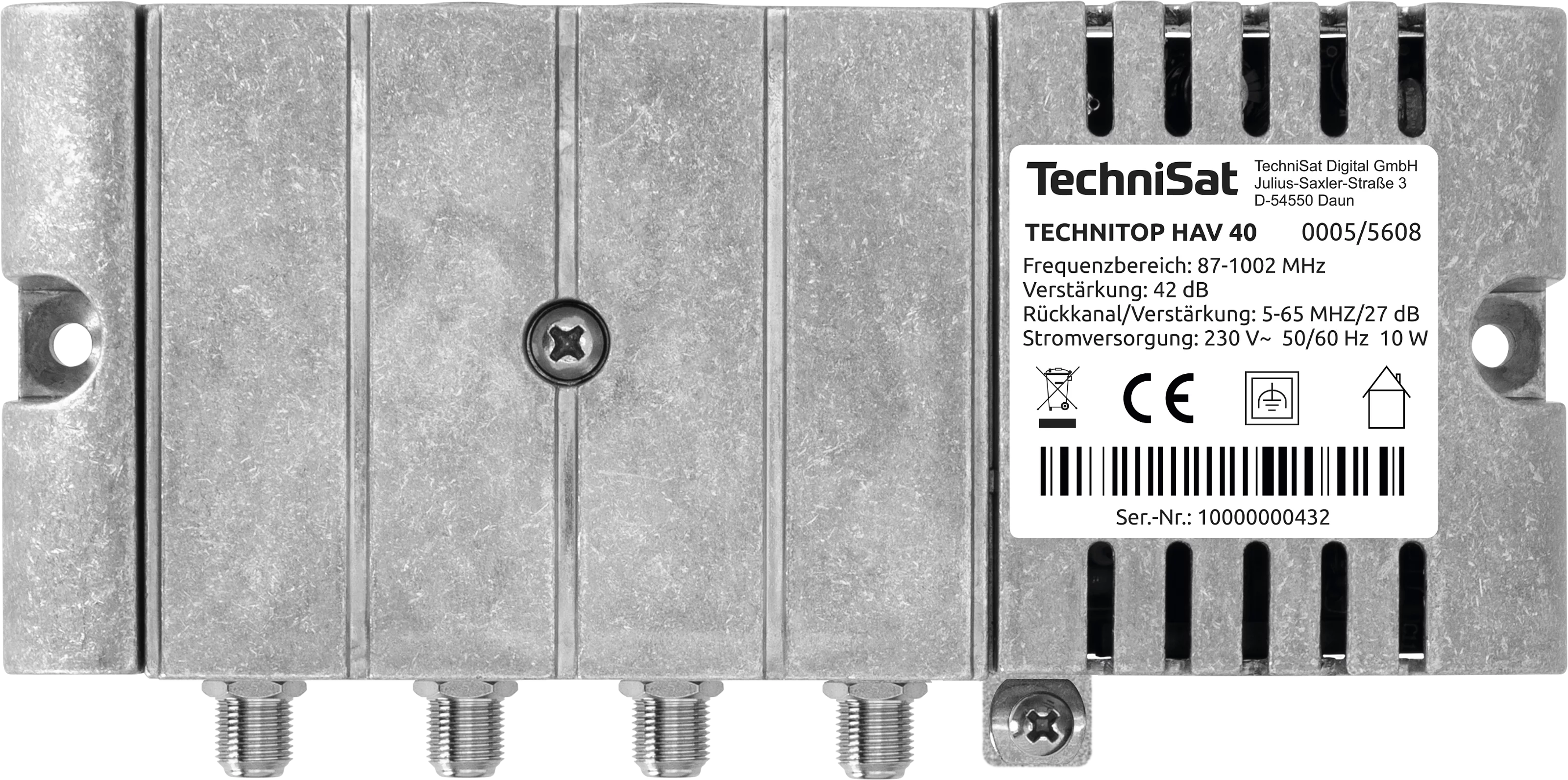

TECHNITOP HAV 40
CATV amplifier with 42 dB gain and active return path of 5-65 MHz.
PLN 784.00*
incl. VAT.
- Downstream 87...1006 MHz
- Intermediate attenuation and equalization switchable
- Upstream 5–65 MHz
- Attenuation and equalization adjustable
- Alu-Druckgussgehäuse
- Shielding Class A according to EN 500083-2
- Measurement sockets at input and output
TECHNITOP HAV 40, mains cable, manual
The CATV amplifier TECHNITOP HAV 40 is a return path enabled house connection amplifiers for CATV distribution systems.
In the forward path of 85-1006 MHz, the maximum gain is 36 dB. In return path the gain is a maximum of 27 dB in the range of 5-65 MHz. Attenuation and equalization can be set separately for both directions of transmission.
In the forward path of 85-1006 MHz, the maximum gain is 36 dB. In return path the gain is a maximum of 27 dB in the range of 5-65 MHz. Attenuation and equalization can be set separately for both directions of transmission.
| Product Information | |
|---|---|
| EAN | 4019588556089 |
| Colour | silver |
| Item no. | 0005/5608 |
| Weight (Box) | 780 g |
| Weight | 700 g |
| Device (W x H x D) | 18,5 x 9,1 x 4,7 cm |
| Box | 20,5 x 5,8 x 15 cm |
| Ambient operating conditions | |
|---|---|
| Temperature | -20 ... 50 °C |
| IP class | 20 |
| Ambient temperature | 10 ... 75 °C |
| Output level | |
|---|---|
| Standard IMA UHF | 111 dB |
| Standard IMA UHF | 111 dB |
| IMA DIN 45004B VHF | 102 dB |
| IMA DIN 45004B UHF | 102 dB |
| Power requirement | |
|---|---|
| Operating voltage | 230 V |
| Power input | 4 W |
| Power supply | |
|---|---|
| Nominal voltage | 230 V ~ |
| Frequency | 50 / 60 Hz |
| Effective output | 10 W |
| Range of adjustment | |
|---|---|
| Attenuator | 18 dB |
| Equaliser | 18 dB |
| Technical data | |
|---|---|
| Frequency range | 87 ... 1.006 MHz |
| Output level | 114 (CTB, CSO EN60728-3) |
| Interstage attenuator | 10 dB switchable |
| Frequency range return path | 5 ... 65 MHz |
| Amplification | 42 dB |
| Noise factor | ≤ 6 dB |
| Shielding factor | ≥ 80 dB EN 50083-2 (Klasse A) |
| Output + input measuring points | -20 dB (± 2,5) |
| Connector type | F female |
| Impedance | 75 Ω |
| Return loss | ≥ 14 dB (-1,5 dB/Okt.) |
