Passive splitter 9P2 silver
PLN 500.00*

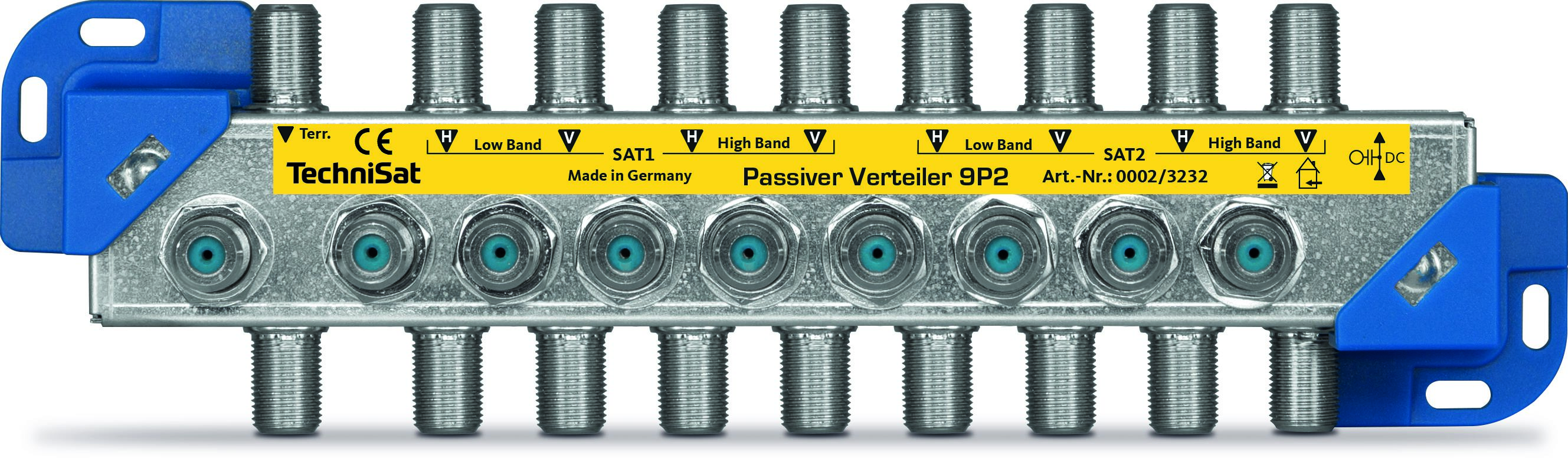

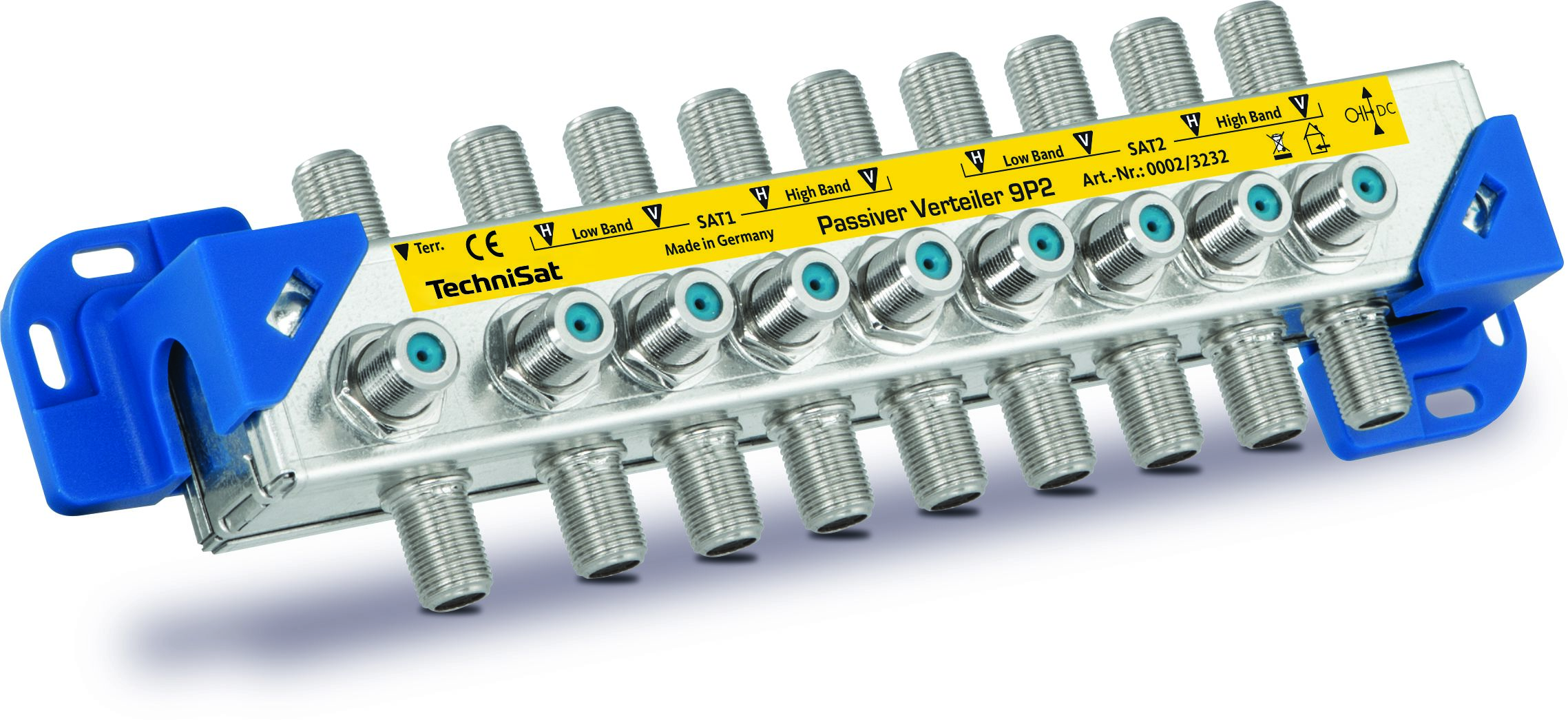

Passive splitter 9P2
Passive splitter for 2 orbital positions
PLN 500.00*
incl. VAT.
Passive Splitter 9P2, instruction manual
This product is manufactured in Germany and represents the highest quality standards. Precise workmanship and strict controls ensure long-lasting reliability.
The passive splitter 9P2 is a component of the system GigaSwitch. It is used for power splitting of the signals of a path and can be used anywhere where his loss (4 dB) is tolerable.
| Product Information | |
|---|---|
| Colour | silver |
| EAN | 4019588232327 |
| Item no. | 0002/3232 |
| Weight (Box) | 360 g |
| Weight | 270 g |
| Device (W x H x D) | 20,8 x 4,2 x 5,5 cm |
| Box | 25,2 x 7,4 x 4,7 cm |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -25 ... 55 °C |
| Decoupling | |
|---|---|
| Output | 35 dB |
| Trunks | 40 dB |
| General characteristics | |
|---|---|
| Top features | Verteilt eine Stammleitungstrasse auf 2 Trassen mit nur 4 dB Dämpfung |
| Top features | Rückkanaltauglich von 2...68 MHz |
| Top features | Keine Stromversorgung nötig - Gerät ist passiv |
| Top features | Gleiches Rastermass der F-Buchsen wie 9er GigaSwitch und TechniRouter |
| Power supply | |
|---|---|
| Power consumption | 0 mA (passiv) |
| Reception range | |
|---|---|
| Sat | 950 ... 2.150 MHz |
| Terrestrial | 87 ... 790 MHz |
| Return path | 2 ... 68 MHz |
| Technical data | |
|---|---|
| Satellite inputs | 8 |
| Terrestrial input | 1 |
| Transmission loss | |
|---|---|
| Sat | 4 dB |
| Terrestrial | 4 dB |
