Inline amplifier 9Z2 silver/yellow
PLN 620.00*
PRODUCT NO LONGER AVAILABLE
Inline amplifier 9Z2
(0002/3231)
Amplifier for signal gain for 2 orbital positions
| Product Information | |
|---|---|
| EAN | 4019588232310 |
| Colour | silver/yellow |
| Item no. | 0002/3231 |
| Weight (Box) | 280 g |
| Weight | 190 g |
| Device (W x H x D) | 20,8 x 5,5 x 3,2 cm |
| Box | 25,2 x 7,4 x 4,7 cm |
| LNB control | |
|---|---|
| Current consumption | max. 850 mA |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -25 ... 55 °C |
| Amplification | |
|---|---|
| Sat | 15 ... 20 dB fest, schräglagenentzerrt |
| Terrestrial | 7 ... 14 dB einstellbar |
| Return path | -1 dB |
| Decoupling | |
|---|---|
| Trunks | 50 dB |
| General characteristics | |
|---|---|
| Top features | Kompensiert die Dämpfung von bis zu 60 m Koaxkabel |
| Top features | Rückkanaltauglich von 2...68 MHz |
| Top features | Optionale Stromversorgung über Steckernetzteil |

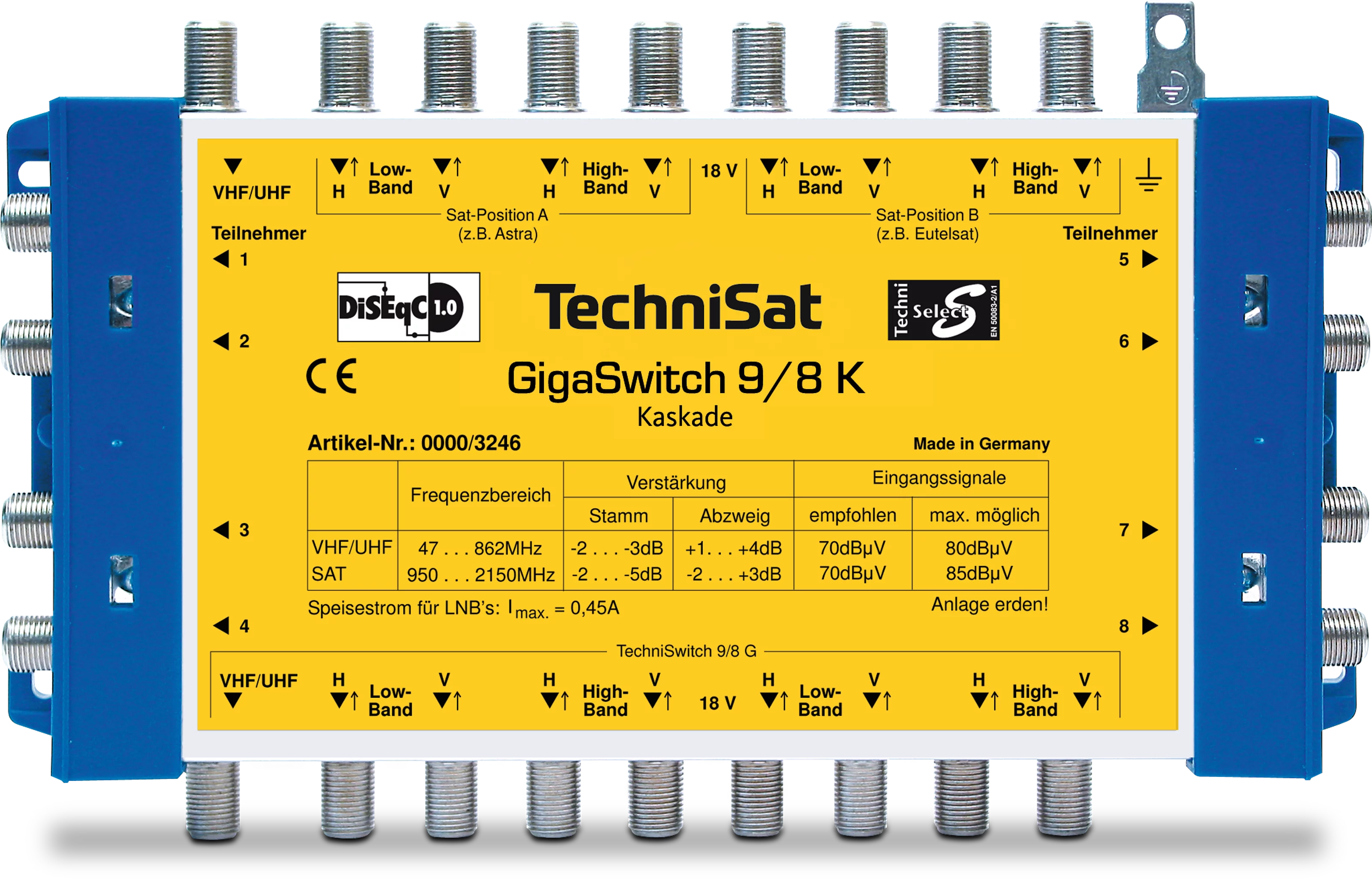

| Top features | Gleiches Rastermass der F-Buchsen wie GigaSwitch 9/8 und TechniRouter 9/8 |
| Power consumption | |
|---|---|
| In operation | 5,5 W |
| Power supply | |
|---|---|
| Nominal voltage | 15 V DC |
| Mains adapter | external (Optional) |
| Power consumption | typ. 340 mA @15 V |
| Reception range | |
|---|---|
| Sat | 950 ... 2.150 MHz |
| Terrestrial | 87 ... 790 MHz |
| Return path | 2 ... 68 MHz |
| Technical data | |
|---|---|
| Satellite inputs | 8 |
| Terrestrial input | 1 |
