COAXSAT 115-3.6, m 100eel white
PLN 550.00*
COAXSAT 115-3.6, m 100eel
High-end 3-way shielded RG6 coaxial cable , 120 dB screening
PLN 550.00*
incl. VAT.
Content:
100 Meter
(PLN 5.50 / 1 Meter)
- Triple-shielded high-frequency cable COAXSAT with a shielding factor of 115 dB / 3-layer outer conductor / glued aluminum foil / braid of tinned copper
- Ideal for signal transmission in broadband cable networks and satellite distribution systems. The high shielding ensures protection against all kinds of radio interference.
- Thanks to the small diameter of 5.6 mm, it is particularly suitable for installation in narrow empty conduits. Durable PVC blend still gives the cable the necessary flexibility.
- Inner conductor made of solid high-purity electrolytic copper / Physically foamed, stable PE dielectric for excellent attenuation and aging resistance.
100m ring
This product is manufactured in Germany and represents the highest quality standards. Precise workmanship and strict controls ensure long-lasting reliability.
Das 3-fach geschirmte Hochfrequenzkabel CoaxSat 115-3.6 ist geeignet für den Einsatz im Sat- und BK-Bereich. Durch seinen geringen Durchmesser von 5,6 mm eignet es sich besonders zur Verlegung in engen Leerrohren. Die hohe Abschirmung schafft Sicherheit gegen Funkstörungen aller Art.
| Product Information | |
|---|---|
| Colour | white |
| EAN | 4019588430112 |
| Item no. | 0004/3011 |
| Weight (Box) | 4,1 kg |
| Weight | 4,1 kg |
| Device (W x H x D) | 27,5 x 27,5 x 14 cm |
| Box | 55 x 45 x 40 cm |
| Attenuation | |
|---|---|
| 5 MHz | 2,45 |
| 10 MHz | 3,34 |
| 25 MHz | 5,05 |
| 45 MHz | 6,57 |
| 100 MHz | 7,2 |
| 200 MHz | 11,8 |
| 300 MHz | 13,9 |
| 450 MHz | 17,8 |
| 800 MHz | 24,6 |
| 1000 MHz | 28,7 |
| 1350 MHz | 33,2 |
| 1750 MHz | 38,6 |
| 2050 MHz | 42,9 |
| 2250 MHz | 45,3 |
| Return loss | |
|---|---|
| 5 - 30 MHz | ≥ 28 dB |
| 30 - 65 MHz | ≥ 22 dB |
| 65 - 470 MHz | ≥ 22 dB |
| 470 - 1800 MHz | ≥ 20 dB |
| 1800 - 2450MHz | ≥ 19 dB |
| Technical data | |
|---|---|
| Frequency range | 5 ... 3.000 MHz |
| Impedance | 75 Ω (± 3) |
| Inner cable diameter | 0,8 mm |
| Inner cable material | Copper bare (OFC) |
| Isolation | Zell-PE |
| Diameter dielectric | 3,6 mm (± 0,1) |
| Outer cable | 1x Alum. foil + 1x tinned coppper braiding + 1x Alum. foil |
| Sheath | PVC, withe |
| Diameter with coating | 5,6 mm (± 0,2) |
| Bending radius | ≥ 50 mm |
| Capacity | 55 pF |
| Shrinkage factor | 0,85 |
| Shielding factor | ≥ 115 dB ≙ Klasse A+ |
| Transfer impedance | |
|---|---|
| 5MHz | ≤ 0,8 |
| 30 MHz | ≤ 0,15 |

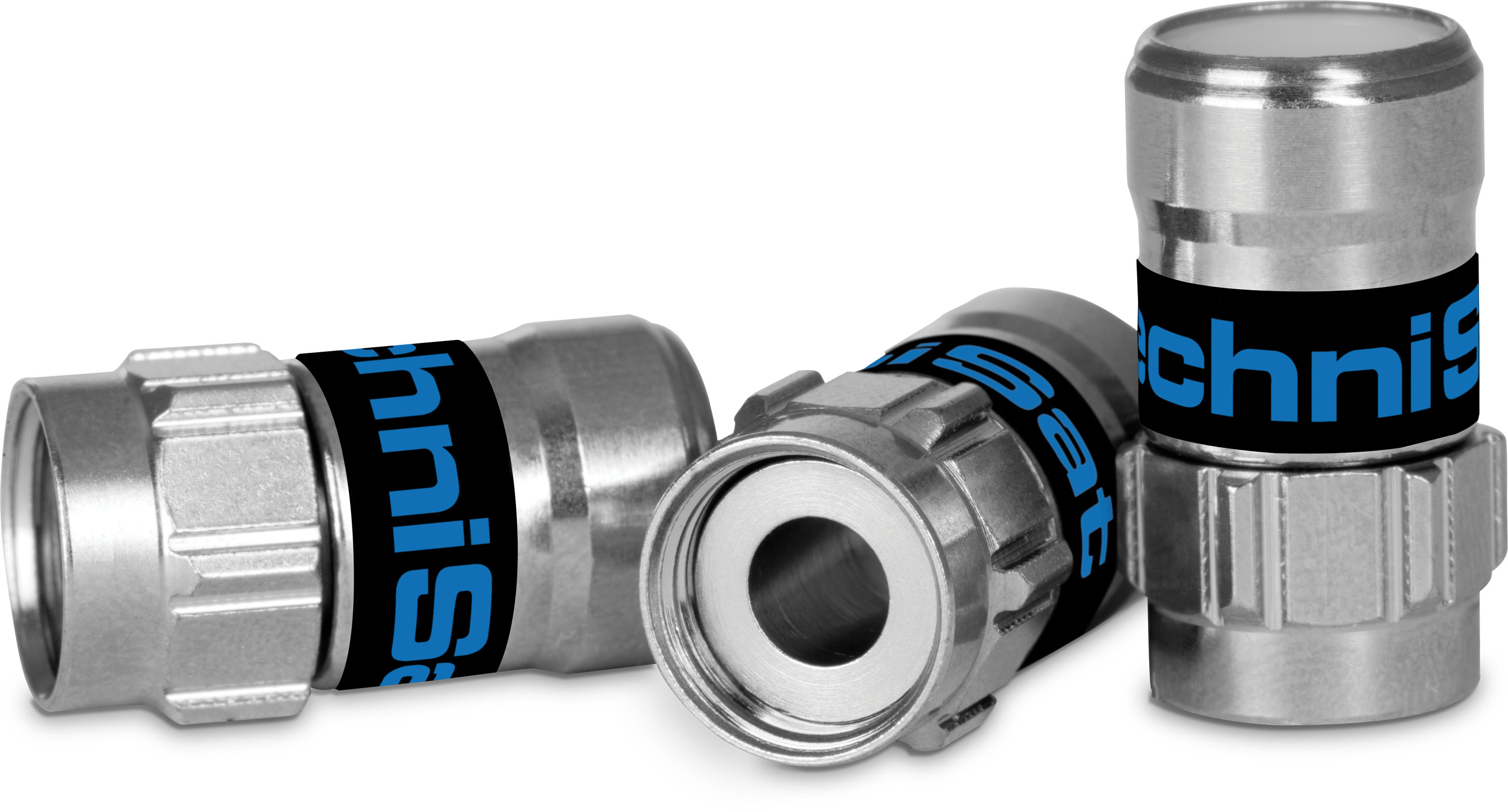

Optional accessories
