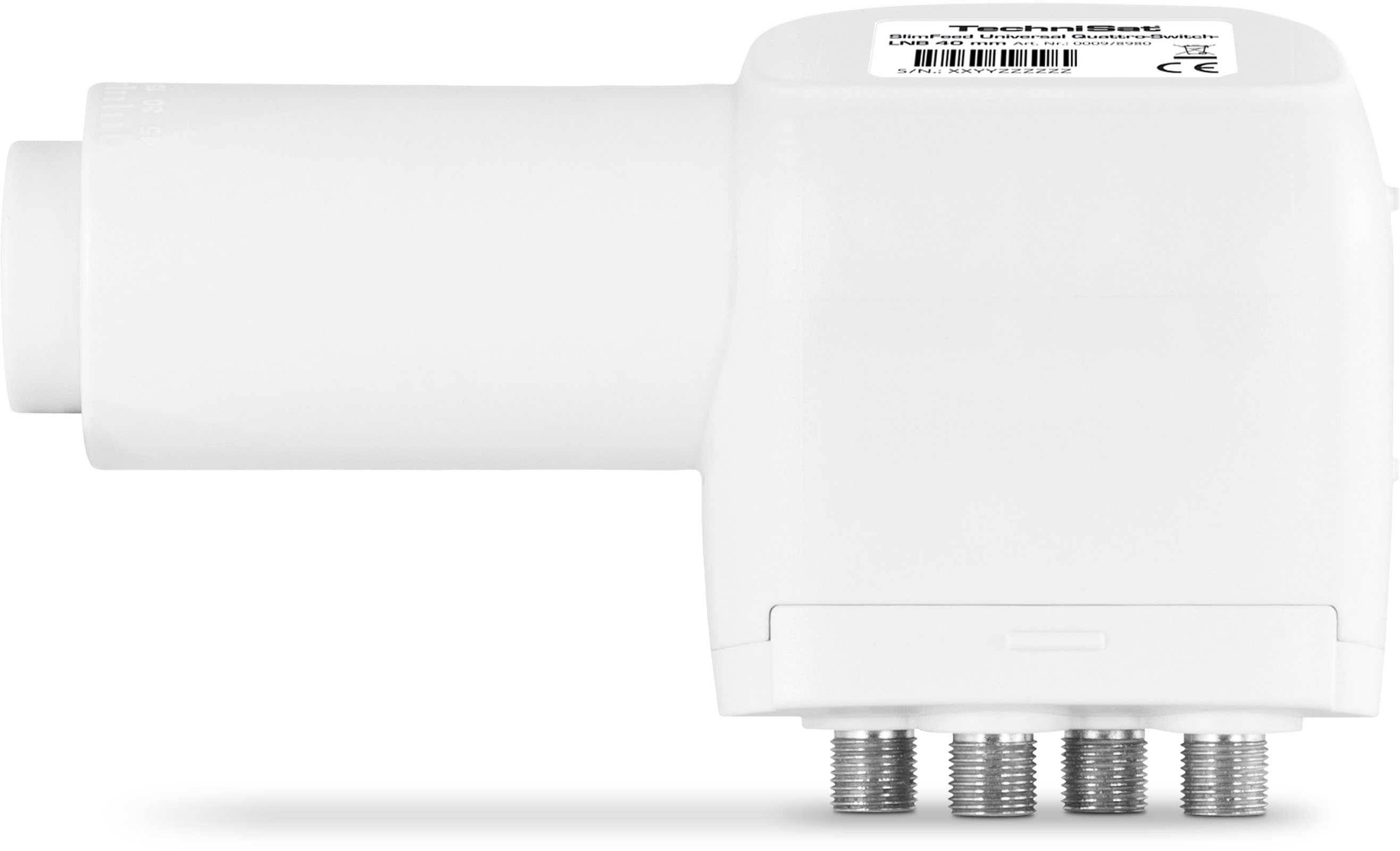

SlimFeed Universal-Quattro-Switch-LNB
(0009/8980)
Digital-LNB for four participants, can be used with the TechniSat-Vario System
| Product Information | |
|---|---|
| EAN | 4019588989801 |
| Colour | white |
| Item no. | 0009/8980 |
| Weight (Box) | 240 g |
| Weight | 200 g |
| Device (W x H x D) | 4,5 x 8,5 x 14 cm |
| Box | 5,2 x 8 x 15 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 0,5 MHz |
| Temperature drift | ± 1 MHz |
| Phase noise | -85 @10kHz |
| LNB control | |
|---|---|
| Vertical | 11 ... 14 V |
| Horizontal | 16 ... 20 V |
| Band switch | 22 kHz |
| Ambient operating conditions | |
|---|---|
| Humidity | 5 ... 100 % |
| Ambient temperature | -40 ... 65 °C |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | 0,1 dB typ. |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 11 ... 20 V |
| Power consumption | 180 mA (Typ.) |
| Technical data | |
|---|---|
| Outputs | 4 |
| Feed reception | ø 40 mm |
| Connector type | F-Buchse |
| Impedance | 75 Ω |
| Amplification | 60 ... 64 dB |
