RV 600-10 E
PLN 150.00*
PRODUCT NO LONGER AVAILABLE

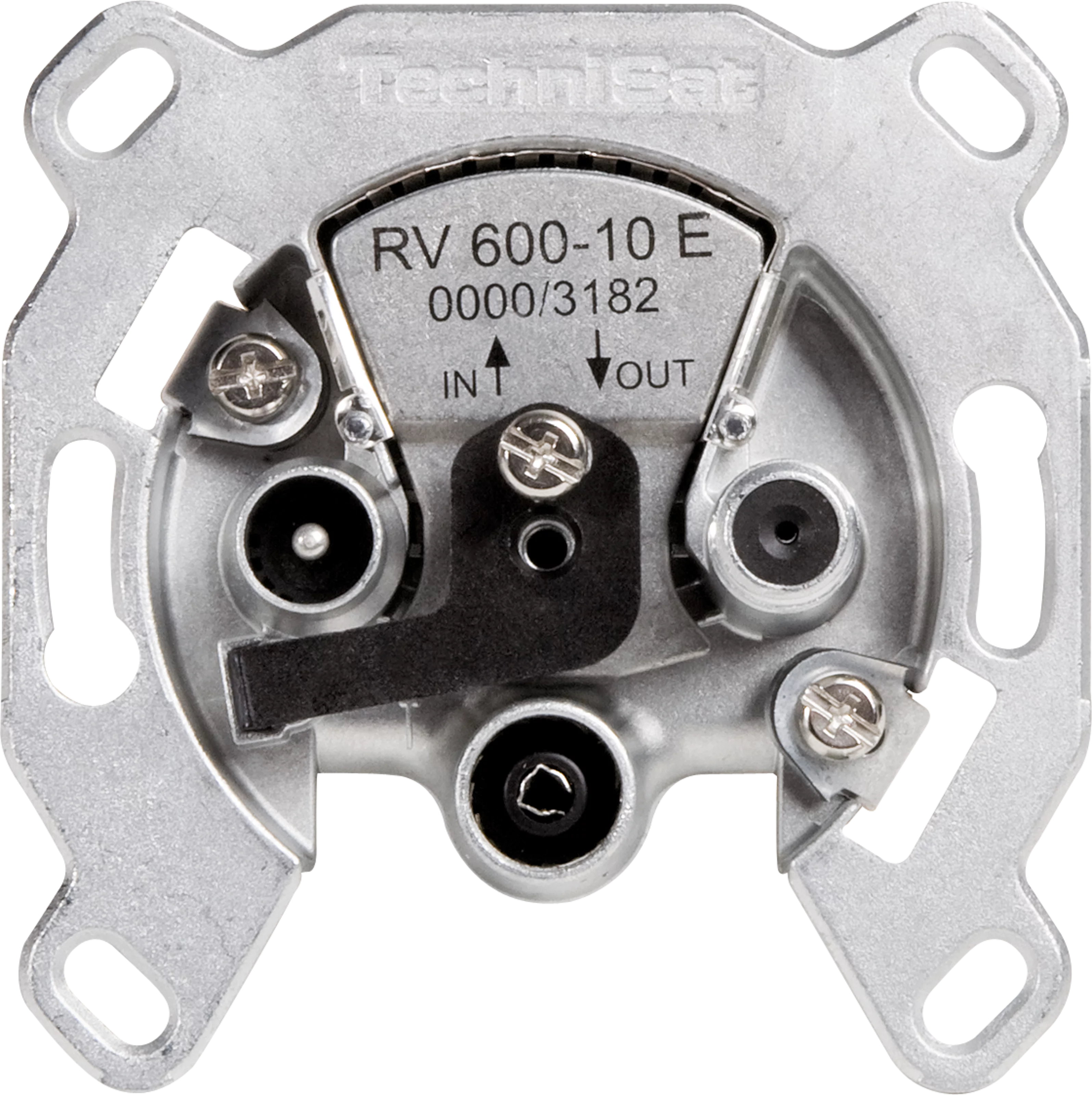

RV 600-10 E
(0000/3182)
Satellite pass-through socket for single-cable systems. Antenna socket with a 10 dB attenuation and electronic overload protection.
| Product Information | |
|---|---|
| EAN | 4019588031821 |
| Colour | silver |
| Item no. | 0000/3182 |
| Weight (Box) | 96 g |
| Weight | 1,4 g |
| Device (W x H x D) | 7 x 7 x 2,5 cm |
| Box | 20,5 x 7,5 x 14,5 cm |
| Connector type | |
|---|---|
| Radio | IEC connector (f) |
| TV | IEC connector (m) |
| SAT | F-socket |
| frequency range | |
|---|---|
| Radio | 87,5 ... 108 MHz |
| SAT | 950 ... 2.150 MHz |
| TV | 47...68/ 118 ... 862 MHz |
| Shielding factor | |
|---|---|
| 47 - 300 MHz | ≥ 85 dB |
| 300 - 470 MHz | ≥ 80 dB |
| 470 - 950 MHz | ≥ 75 dB |
| 950 - 2150 MHz | ≥ 55 dB |
| Tap loss | |
|---|---|
| Radio | 11 dB |
| SAT | 10 dB |
| TV | 10 dB |
| Transmission loss | |
|---|---|
| VHF | 1 dB |
| UHF | 1 dB |
| Sat | 1,9 dB |
