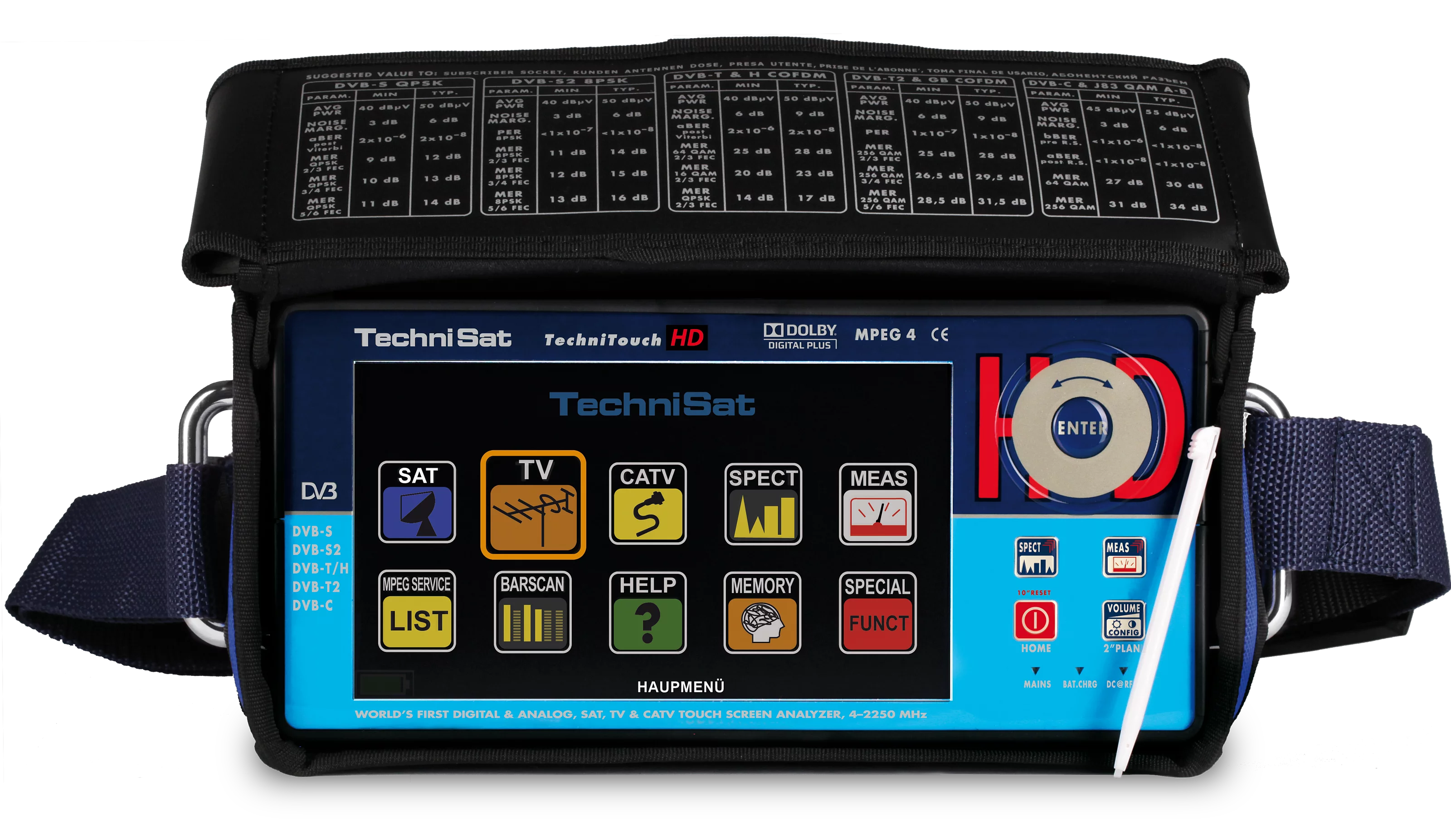

TechniTouch HD
(0001/3434)
PROFESSIONAL COMBINED ANALYZER, 4-2.250 MHz, for SAT QPSK/8PSK - TV COFDM and CATV QAM signals
| Product Information | |
|---|---|
| EAN | 4019588134348 |
| Colour | blue |
| Item no. | 0001/3434 |
| Frequency range | |
|---|---|
| TV digital & analogue - Radio FM | 4 ... 930 MHz |
| Digital & analogue satellite | 930 ... 2.250 MHz |
| Memory schema | bis zu 99 Pläne |
| Programmes | 199 Programme je Plan |
| General characteristics | |
|---|---|
| Input impedance | 75 Ω |
| Replaceable input jack | F, BNC, IEC |
| RF input protection | max. 60 VAC |
| Analogue TV | 5 ... 125 |
| Analogue SAT | 30 ... 125 |
| SAR QPSK | 30 ... 125 |
| COFDM (demodulated) | 30 ... 125 |
| RF level | 30 ... 125 dBµV |
| Measurement result indication | PEGEL/POWER niedrig/Hoch |
| File Manager | für Organisation von Programm- und Messdaten-Speicher |
| ENCODER/dial | Ja (Touch-Sensor) |
| LNB stream measurement | 0 ... 500 mA |
| Measurements display / classification | 0,1 dB (Pegel und Power) |
| Unit of measurement | dBµV/dBm (wählbar) |
| RBW @ -3dB | 100 kHz (FM), 130 kHz (TV), 4 MHz (SAT) |
| Accuracy of measurement | typ. 1,5 dB SAT; 1 dB TV |
| Measurement stability dB/°C (-10°C - 50°C) | 0,03 (TV); 0,1 (SAT) |
| AC/DC adapter | 230 VAC / 12 VDC (3A) (Steckernetzteil) |
| Voltage supply | 12 VDC (3A) |
| Battery standby time at 25°C | 6 - 10 Stunden |
| Low battery alarm | Akustisch und Symbol im Display |
| Display | 7" 16:9 Farb-TFT-LCD Touchscreen |
| Automatic power off via timer | 5 min (Ein/Aus) |
| RF input/output voltage | Off, 13V, 18V, 24V, 22kHz (0,3A) |
| Audio | 2 x 0,5 W Lautsprecher (regelbare Lautstärke) |
| Sound/buzzer | für Qualität oder Pegel-Indikation, wählbar |
| Interface | USB 2.0 |
| Audio/Video input/output | HDMI out & AV in/out |
| Measurement DVB-S2 | |
|---|---|
| QPSK selectable standard | DVB kHz |
| Symbol rate | 2 ... 45 @ 1KS/s Schritte |
| FEC (auto. recognition) | 1/2, 2/3, 3/4, 4/5, 5/6, 6/7, 7/8, 8/9 |
| MPEG-2 and MPEG-4 HD | Ja |
| NET. ID | Programmlist, VideoPID, AudioPID, Verschlüsselung |
| Noise Margin / Signal Reserve and SNR accuracy of measurement | 1 dB |
| Conditional access | CAM-Einschub |
| Measurement DVB-T | |
|---|---|
| Offset frequency | 166 kHz |
| MER and BER measurement tolerances | 1 dB typ. (2 db Max.) |
| MER measurement | ≤ 38 dB |
| BER | bBER bis zu 1x10E-5; aBER bis zu 2x10E-8 |
| Automatic recognition and display | Constellation, Guard Interval, FEC |
| Constellation | 16-, 32-, 64-, 128-, 256-QAM |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Spectrum inverted | automatisch |
| Automatic quality analysis | FAIL - MARGIN - PASS |
| Noise Margin / Signal Reserve and SNR accuracy of measurement | 1 dB |
| Measurement SAT | |
|---|---|
| DiSEqC "a-b-c-d" | vorprogrammiert und einfach zu nutzen. Zur Ansteuerung fast aller LNBs (analog oder DiSEqC, singel und dual feed) und Multischalter (analog oder DiSEqc mit 4, 8, 12, 16 Eingängen und SCR-LNBs). |
| S.C.R | 1 bis 8 Anwender |
| LNB LO frequency | 0 ... 20.000 MHz durchgehend |
| Reception range | 930 ... 2.250 MHz |
| SPAN | 50 - 100 - 200 - 500 - Full (Total) |
| db / div | 5 |
| Dynamic range display | > 30 dB |
| MRK measurement illustration | 0,1 dB |
| Filter measurement bandwidth | 4 MHz @ -3 dB |
| Reference level | 0 ... 130 |
| Other configurable spectrum parameters / functions | MAX HOLD (peak memory) / Max Wert einfrieren; SAT POINTING Optimale Parameter-Einstellung zur Ausrichtung der SAT-Antenne |
| Measurement TV analog | |
|---|---|
| Frequency range | 44 ... 870 MHz |
| Input impedance | 75 Ω |
| RF level measurement range | 5 ... 125 |
| Measurements display | 0,1 dB |
| Multi standard | M-N-B-G-I-D-K-PAL-NTSC (SECAM L France) |
| A/V (audio/video) ratio accuracy | 1,5 dB Typ. |
| Measurement TV Terrestrial | |
|---|---|
| Frequency range | 4 ... 930 MHz |
| Reception range | 4 ... 65 MHz |
| SPAN TV band (spread) | 2-5-7-10-20-50-100-200-500-VHF-UHF-FULL |
| db / div | 10 |
| Dynamic range | 60 dB |
| Measurements display | 0,1 dB |
| Filter measurement bandwidth | TV 130 @ -3 dB |
| Reference level | 0 ... 130 |
| Automatic power / level position marker | für Digital-Signale im Zentrum des Trägers für analoge Signale auf dem Video-Träger |
| Other configurable spectrum parameters / functions | MAX HOLD (max. Wert einfrieren) |
| INGRESS spectrum | 4 ... 65 MHz |
| Leakage / interference radiation measurement | Antenne und Entfernungs-Parameter einstellbar |
| Measuring DVB-C | |
|---|---|
| Demodulated QAM signals | Annex A - B - C, down tream DOCSIS |
| Symbol rate | 2.000 ... 9.000 |
| Constellation diagram display | 16-, 32-, 64-, 128-, 256-QAM |
| MER measurement | 64-QAM > 36dB; 128-QAM > 38dB; 256-QAM > 40dB |
| BER measurement | bis zu 1x10E-9 |
| Spectrum inverted | automatisch |
| Multiplex flatness | 0,7 dB typ. |
| Automatic quality analysis | FAIL - MARGIN - PASS |
| Noise Margin / Signal Reserve and SNR accuracy of measurement | 1 dB |
| C/N measurement tolerance | 60 dB im Spectrum typ. |
| Power supply | |
|---|---|
| Rechargeable battery | Li-Ion; 10,8 V/4,5 Ah |
| Battery life | 2 Std. @ 25°C |
| Nominal voltage | 110 ... 240 V |
| Battery charging time | 2 Std. umd 50% Kapazität zu erreichen |
| Frequency | 50 ... 60 Hz |
| Mains adapter | extern (Steckernetzteil) |
