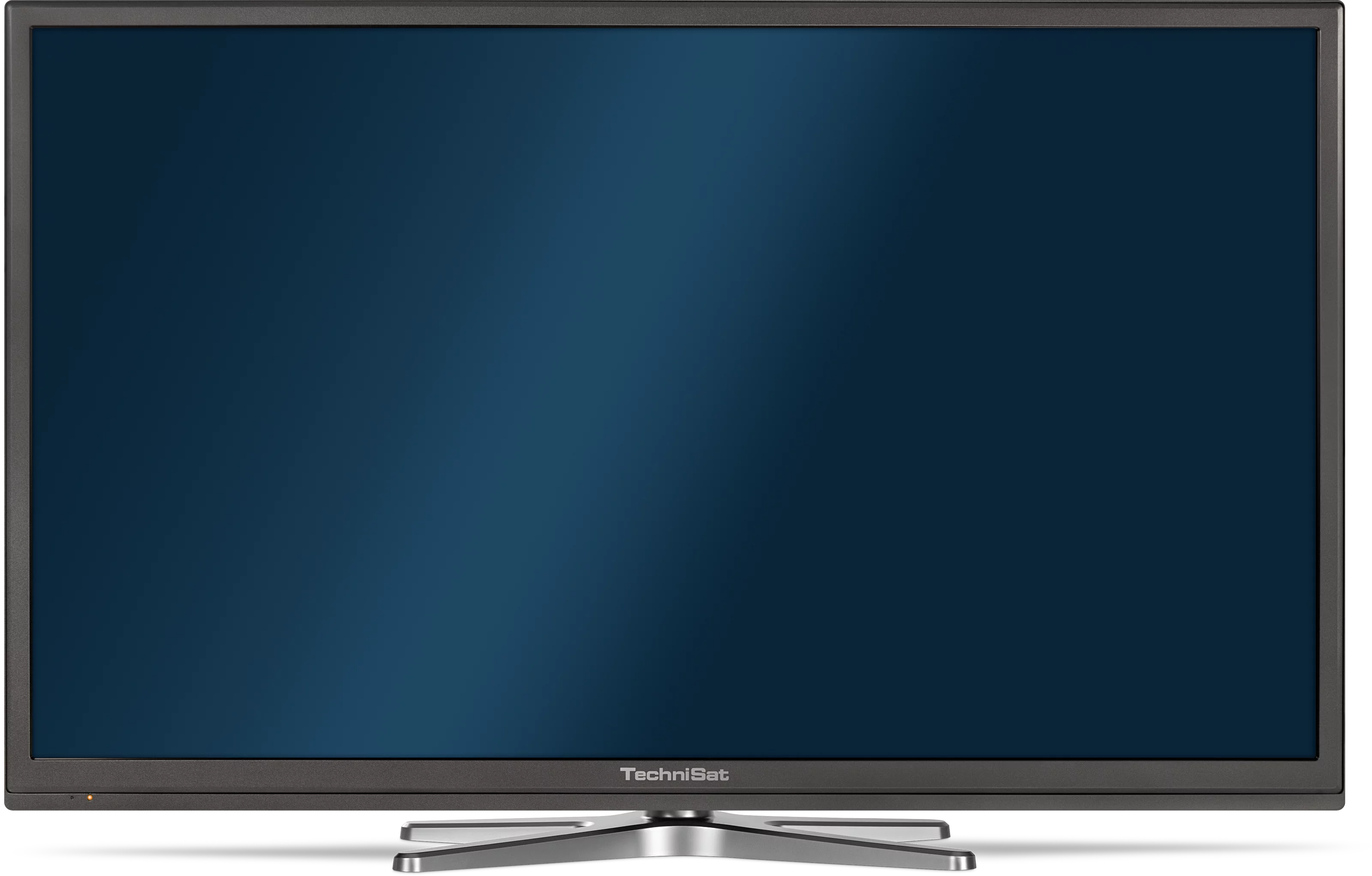

TECHNISMART 47, dark grey-metallic (119 cm)
(5047/8100)
SmartTV with QuattroTuner, internet functionality and the possibilty to connect an external USB storage device for recording TV- and radio channels
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588547810 |
| Item no. | 5047/8100 |
| Colour | anthrazit metallic |
| LNB control | |
|---|---|
| Vertical | 14 V |
| Horizontal | 18 V |
| Band switch | 22 kHz |
| Current consumption | max. 550 mA |
| DiSEqC | 1.x |
| TechniSat added value services | |
|---|---|
| AUTOINSTALL | Yes |
| Internet/Network | |
|---|---|
| HbbTV | Yes |
| Audio | |
|---|---|
| Speakers | 2x 8 W |
| Connections | |
|---|---|
| HDMI™ (in) | 4 (1x seitlich) |
| Common Interface Plus (CI+) | Yes |
| Digital optical audio out | Yes |
| AV input | Yes (3,5mm Klinke seitlich) |
| Audio in/AUX in | Yes (Cinch) |
| Subwoofer output | Yes |
| VGA | Yes |
| YUV (component input) | Yes (YPbPr) |
| Scart | 2 |
| S Video | Yes (via SCART) |
| Ethernet 10/100 (RJ-45) | Yes |
| F socket | 1 |
| IEC-Connector | Yes |
| Decryption system | |
|---|---|
| CI+ | Yes |
| Dimensions / Weight | |
|---|---|
| Set width without stand | 1.085 mm |
| Weight without stand | 15,7 kg |
| Set depth without stand | 65 mm |
| Set height without stand | 650 mm |
| Display | |
|---|---|
| Size (cm) | 119 cm |
| Frequency | 200 Hz CMPR (Clear Motion Picture Rate) |
| Format | 16:9 |
| Contrast ratio | 1400:1 |
| Brightness | 350 cd/m² |
| Response time | 8 ms |
| Angle of view | 178°/178° |
| Format switchover | Auto; 16:9, subtitle, 14:9, 14:9 Zoom, 4:3, cinema |
| Zoom | Yes |
| Size (inches) | 47 |
| Resolution (vertical and horizontal) | 1920x1080 |
| Type | Full HD eLED |
| Handling/comfort | |
|---|---|
| Alarm | Yes |
| Sleep timer | Yes |
| Hotel mode | |
|---|---|
| Protected access to hotel mode | Yes |
| Customisable start screen | Yes |
| USB cloning function | Yes |
| Lockable volume | Yes |
| Menu locking | Yes |
| Teletext deactivation | Yes |
| Control panel lock | Yes |
| Alarm function | Yes |
| Sleep timer | Yes |
| Selectable start source | Yes |
| Selectable start channel | Yes |
| Other features | |
|---|---|
| OSD languages | English, German, French, Greek, Italian, Lithuanian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory | 10.000 |
| Power consumption | |
|---|---|
| Energy class | A |
| In operation | 84 W |
| annual energy consumption when switched on | 122 kilowatt hour per annum |
| Standby | 0,24 W |
| Power switch | Yes |
| Contains no mercury | Yes |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Supported formats & codecs | |
|---|---|
| Video-Codecs | MPEG-2, MPEG-4, MPEG-1, H.264, VC-1 |
| Video-Formats | MKV, MP4, MOV, MPG, VOB, WMV, Xvid, FLV, DAT, AVI, ASF |
| Picture-Formats | BMP, JPEG, PNG |
| Audio-Formats | WAV, MP3, AAC, M4A, MP2, DDAC3, WMA |
| Tuner | |
|---|---|
| DVB-S tuner | 1 |
| DVB-C Tuner | 1 |
| DVB-T Tuner | 1 |
| Analogue UHF/VHF/CATV tuner | 1 |
| Input impedance | 75 Ω |
| TECHNIROUTER ready | Yes |
| Tuner - Analogue | |
|---|---|
| Video standards | PAL, SECAM, NTSC |
| Reception range | 42 ... 862 MHz |
| Tuner - Cable | |
|---|---|
| Reception range | 42 ... 1.002 MHz |
| Demodulation | QAM |
| Tuner - Sat | |
|---|---|
| DVB-S | QPSK |
| DVB-S | 1 ... 45 |
| Reception range | 950 ... 2.150 MHz |
| DVB-S2 | 8PSK - QPSK |
| Tuner - Terrestrial | |
|---|---|
| Demodulation | COFDM |
| wall bracket | |
|---|---|
| VESA wall mounting standards | VESA 400x400 |
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
