DIGIPLUS UHD S black titanium/black
PLN 1,299.00*
PRODUCT NO LONGER AVAILABLE

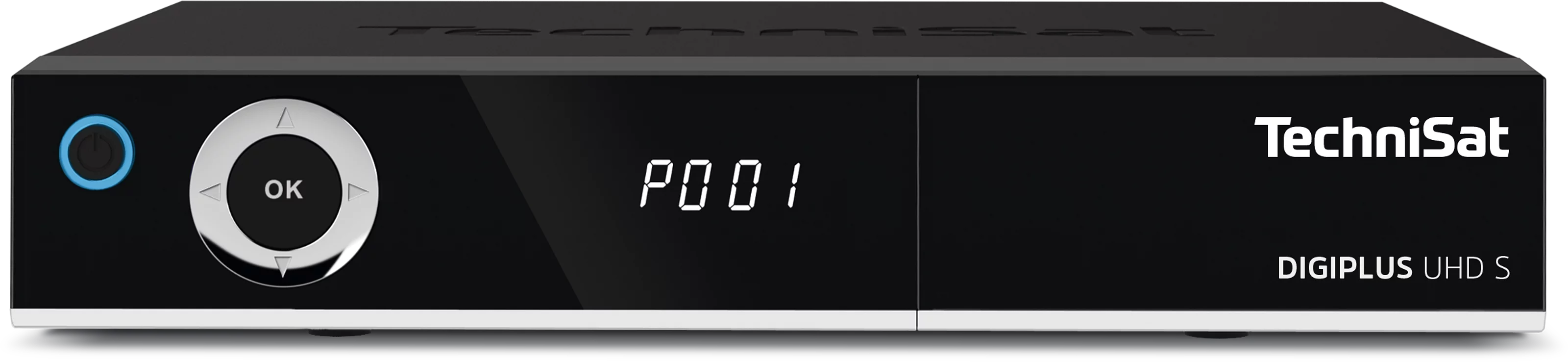

DIGIPLUS UHD S
(0000/4759)
Digital UHD/4K satellite receiver with twin tuner
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588047594 |
| Colour | black |
| Item no. | 0000/4759 |
| Weight (Box) | 1,35 kg |
| Weight | 636 g |
| Device (W x H x D) | 22 x 4 x 17,5 cm |
| Box | 31 x 8 x 19,5 cm |
| Multimedia | |
|---|---|
| DVR function | Ja |
| DVR storage medium | via USB |
| Timeshift | Yes |
| Recordings edition function | Yes |
| Recordings folder management | Yes |
| WLAN | |
|---|---|
| WLAN | 802.11n a/b/g (2,4 GHz / 5 GHz) |
| 5 GHz | Yes |
| 2,4 GHz | Yes |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 75 % |
| Ambient temperature | 5 ... 35 °C |
| LNB control | |
|---|---|
| Vertical | 14 V |
| Horizontal | 18 V |
| Band switch | 22 kHz |
| Current consumption | max. 400 mA (kurzschlussfest) |
| DiSEqC | 1.0 / 1.2 / SCR1 / SCR2 |
| TechniSat added value services | |
|---|---|
| AUTOINSTALL | Yes |
| TECHNIMATIC | Yes |
| SFI+ | Yes |
| ISIPRO | Yes |
| ISI-Mode | Yes |
| TECHNIFAMILY | Yes |
| Internet/Network | |
|---|---|
| ISIO Internet | Yes |
| HTML 5 support | Yes |
| HbbTV | Yes |
| Internet speed test | Yes |
| Webbrowser | Yes |
| Audio | |
|---|---|
| audio_klare_sprache | Yes via USB |
| Connections | |
|---|---|
| HDMI™ (out) | 1 (4K 50/60p / HDCP 2.2) |
| USB | 2 (USB 2.0) |
| Common Interface Plus (CI+) | Yes |
| Digital electric audio output (S/PDIF) | Yes |
| F socket | 2 |
| Connector for external IR-Receiver | 1 |
| DC IN | 1 |
| Ethernet 1Gbit/s (RJ-45) | 1 |
| Decoder | |
|---|---|
| Video decoder | MPEG-2 MP@HL/ML, H.264/MPEG-4 AVC, H.265/HEVC |
| Audio decoder | MPEG-1 & MPEG-2 Layer I, II, III |
| Decryption system | |
|---|---|
| CI+ | Yes |
| Display | |
|---|---|
| Picture in Picture (PIP) | Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD) |
| Picture and Picture (PAP) | Yes |
| Freeze frame | Yes |
| Zoom | Yes |
| UHD/4K upscaling | Yes |
| SD | Yes |
| HD | Yes |
| UHD | Yes |
| 2160p | Yes |
| 1080p | Yes |
| 1080i | Yes |
| 720p | Yes |
| 576p | Yes |
| 576i | Yes |
| Type | 7-segment, 4-digits, white |
| Handling/comfort | |
|---|---|
| Smart Home client | Yes |
| Page memory | 1.000 |
| Teletext subtitles | Yes |
| Media Player | Yes |
| Parental Control | Ja |
| Alarm | Yes |
| Clock | Yes |
| Ideal for camping | Yes |
| Remote control | Yes |
| Teletext | Yes |
| Hotel mode | Yes |
| Sleep timer | Yes |
| Autostandby | Yes |
| Selection regional channels | Yes |
| Channel presets | 9.999 |
| Hotel mode | |
|---|---|
| Protected access to hotel mode | Yes |
| Customisable start screen | Yes |
| Lockable volume | Yes |
| Menu locking | Yes |
| Control panel lock | Yes |
| Integrated LED clock | Yes |
| Selectable start source | Yes |
| Selectable start channel | Yes |
| Network & communication | |
|---|---|
| 1000Base-T | Yes |
| DHCP | Yes |
| RTP | Yes |
| UPnP | Yes |
| TCP/IP | Yes |
| IGMP | Yes |
| HTTPS | Yes |
| IPv4 | Yes |
| HTTP | Yes |
| UDP | Yes |
| Other features | |
|---|---|
| OSD languages | English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Power consumption | |
|---|---|
| Standby LED | 0,4 W |
| In operation | 17,1 W |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Mains adapter | external DC12V/3A |
| Streaming | |
|---|---|
| DLNA Server | Yes |
| Cloud store | Ja |
| Parental Control | Yes |
| DLNA Client | Yes |
| Supported formats & codecs | |
|---|---|
| Video-Codecs | MPEG-2, MPEG-4, MPEG-1, H.264 (bis H.264/AVC Level 4.2), H.265 |
| Video-Formats | M4V, MP4, MKV, MOV, MPG, MTS, TS, TS4, VOB, M2TS, AVI, ASF |
| Picture-Formats | BMP, JPEG, GIF, PNG |
| Audio-Formats | WAV, MP3, AAC, FLAC, M4A, MP2, DDAC3, AIFF |
| TechniSat CONNECT | |
|---|---|
| SFI | Yes |
| Tuner | |
|---|---|
| Tuner type | Twin-Tuner |
| DVB-S tuner | 2 |
| Single Cable Solution (SatCR) | SCR1 = EN50494, SCR2 = EN50607 |
| Satellite radio | Yes |
| Internet radio | Yes |
| Reception on | UHD-TV, HD-TV, SD-TV |
| TECHNISELECT 12 ready | Yes |
| TECHNIROUTER ready | Yes |
| DVB-IP (multicast) | 1 |
| Tuner - Sat | |
|---|---|
| Reception range | 950 ... 2.150 MHz |
| Viterbi rates | 1/2, 2/3, 3/4, 5/6, 7/8 , (auto) |
| DVB-S | QPSK |
| DVB-S | 2 ... 45 |
| DVB-S2 | 8PSK-QPSK |
| DVB-S2 | 10 ... 31 |
| FEC | Viterbi and Reed-Solomon |
