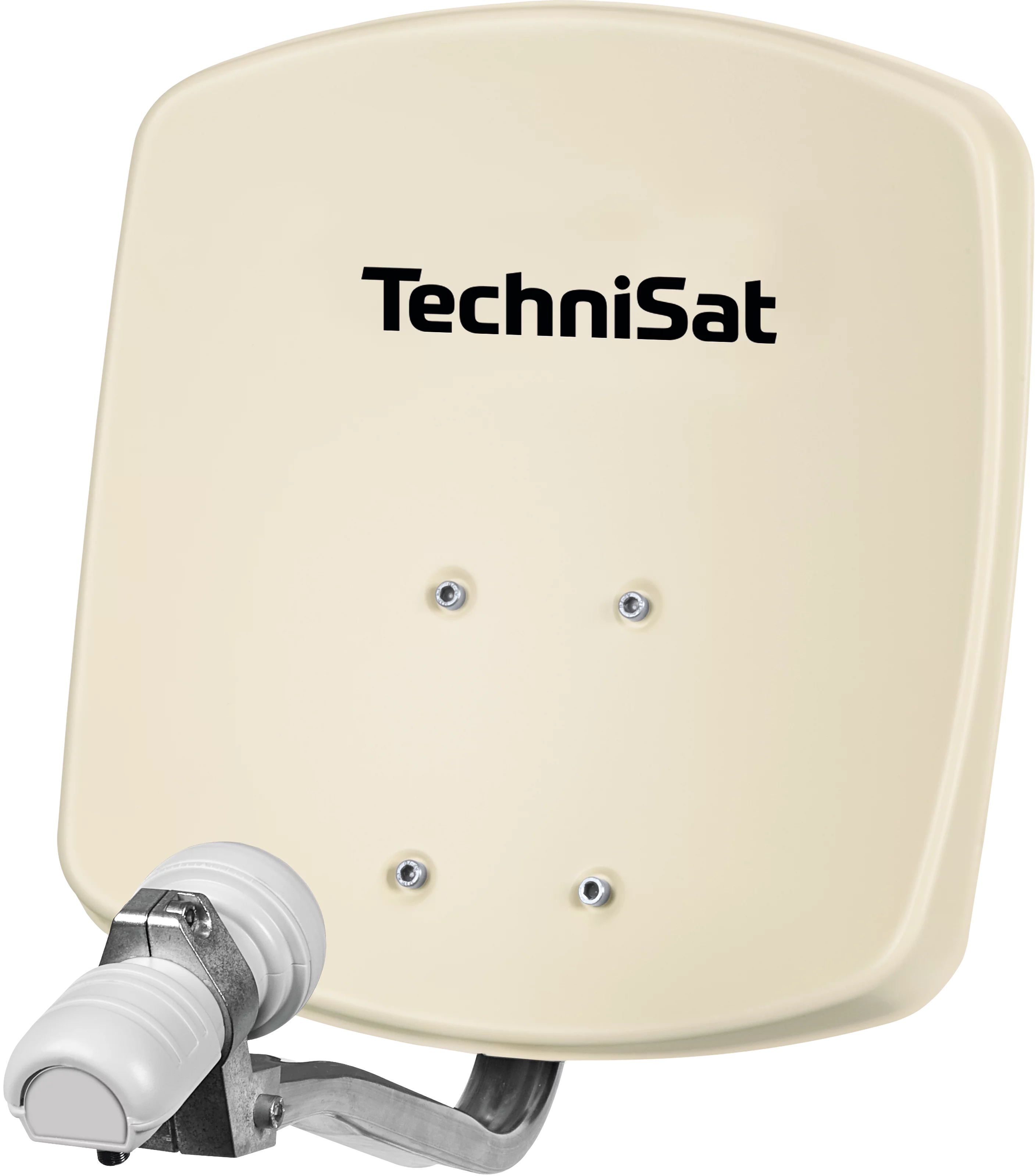

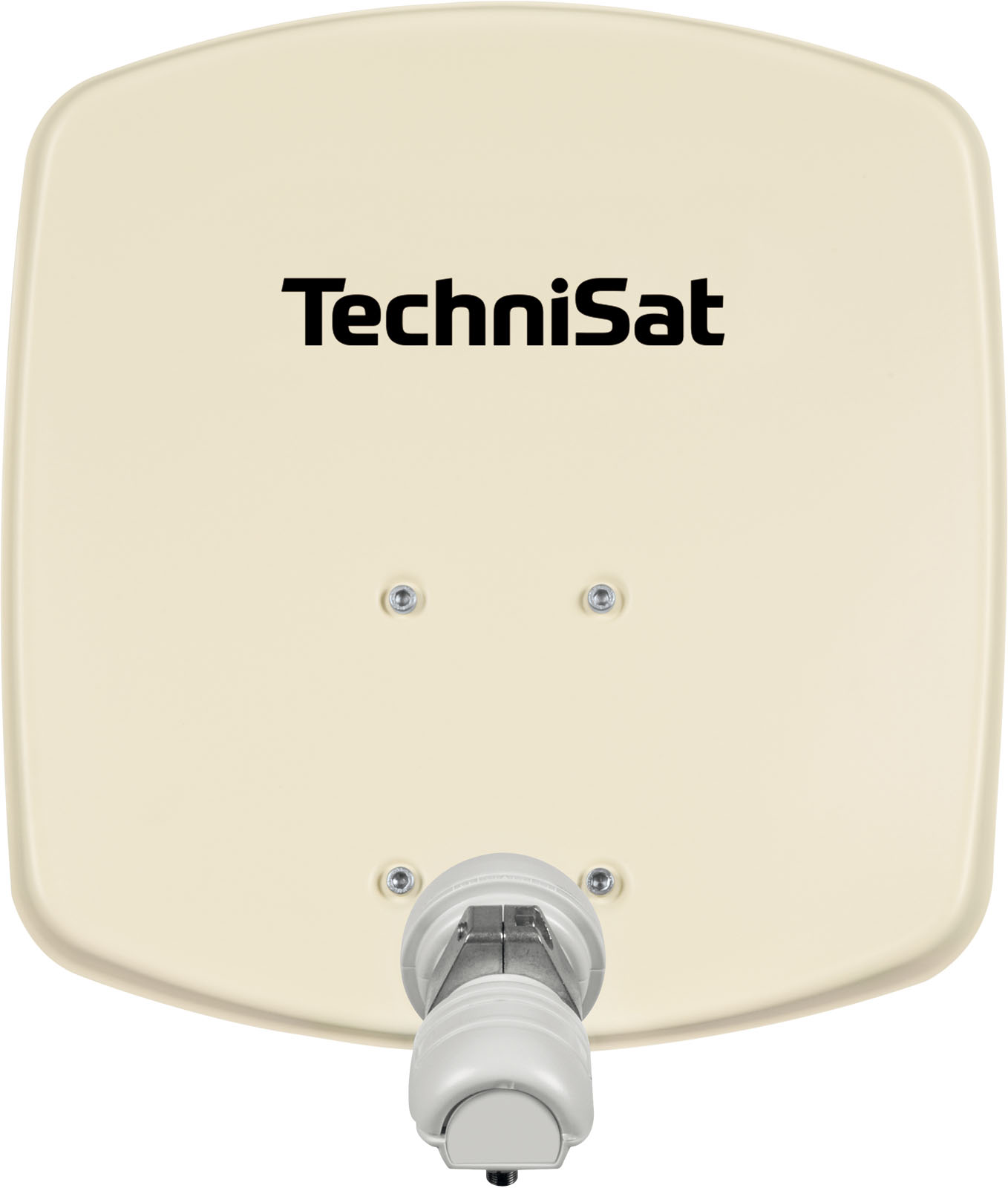

DIGIDISH 33, Universal-V/H-LNB beige
PRODUCT NO LONGER AVAILABLE
DIGIDISH 33, Universal-V/H-LNB
(1033/2194)
The DigiDish 33 is enormously high-performance for its size and takes up very little space
| Product Information | |
|---|---|
| EAN | 4019588332942 |
| Colour | beige |
| Item no. | 1033/2194 |
| Weight (Box) | 2,7 kg |
| Weight | 1,9 kg |
| Device (W x H x D) | 33 x 35 cm |
| Box | 40,5 x 39,5 x 22 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14 V |
| Horizontal | 16 - 19 V |
| Band switch | 22 kHz |
| General characteristics | |
|---|---|
| Material | Aluminium |
| Top features | Only 33 cm small |
| Top features | 1 or 2 participants |
| Top features | 1 orbital position (for example Astra 19.2° East) |
| Top features | Especially suitable for balcony installation / Ideal for the city |
| Top features | Ideal for ground and wall mounting |
| Material strength | 1 mm |
| Coating | Powder-coated on both sites |
| including Wall bracket | Yes |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,7 dB max. |
| Upper frequency range | 0,7 dB max. |
| Output frequency range | |
|---|---|
| Low band | 950 - 1.950 MHz |
| High band | 1.100 - 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 11,5 ... 19 V |
| Power consumption | max. 190 mA |
| Technical data | |
|---|---|
| F/D | 0,6 |
| Gain | 30 dBi @11,3 GHz |
| Offset angle | 30 ° |
| Feed reception | 40 mm |
