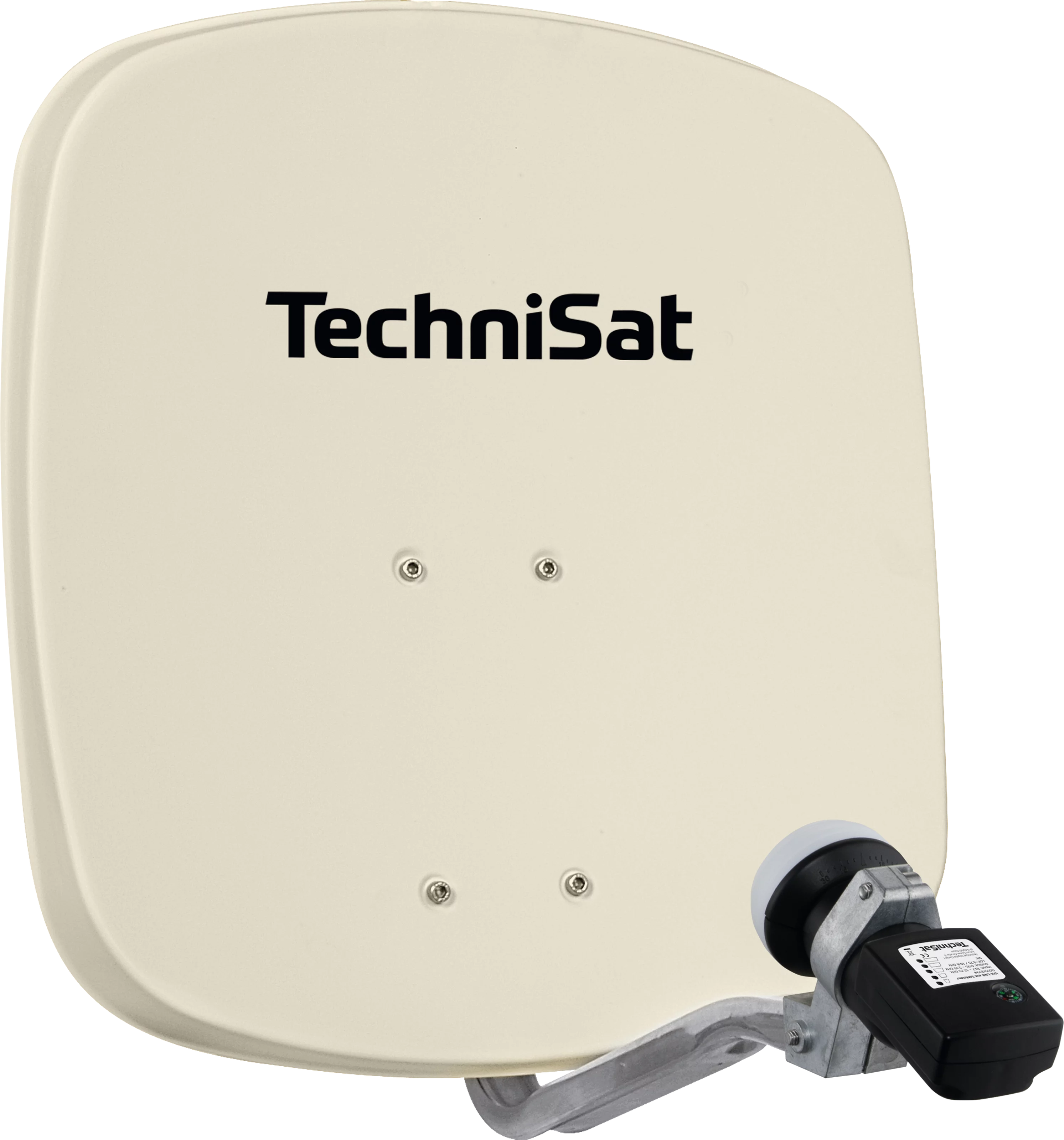

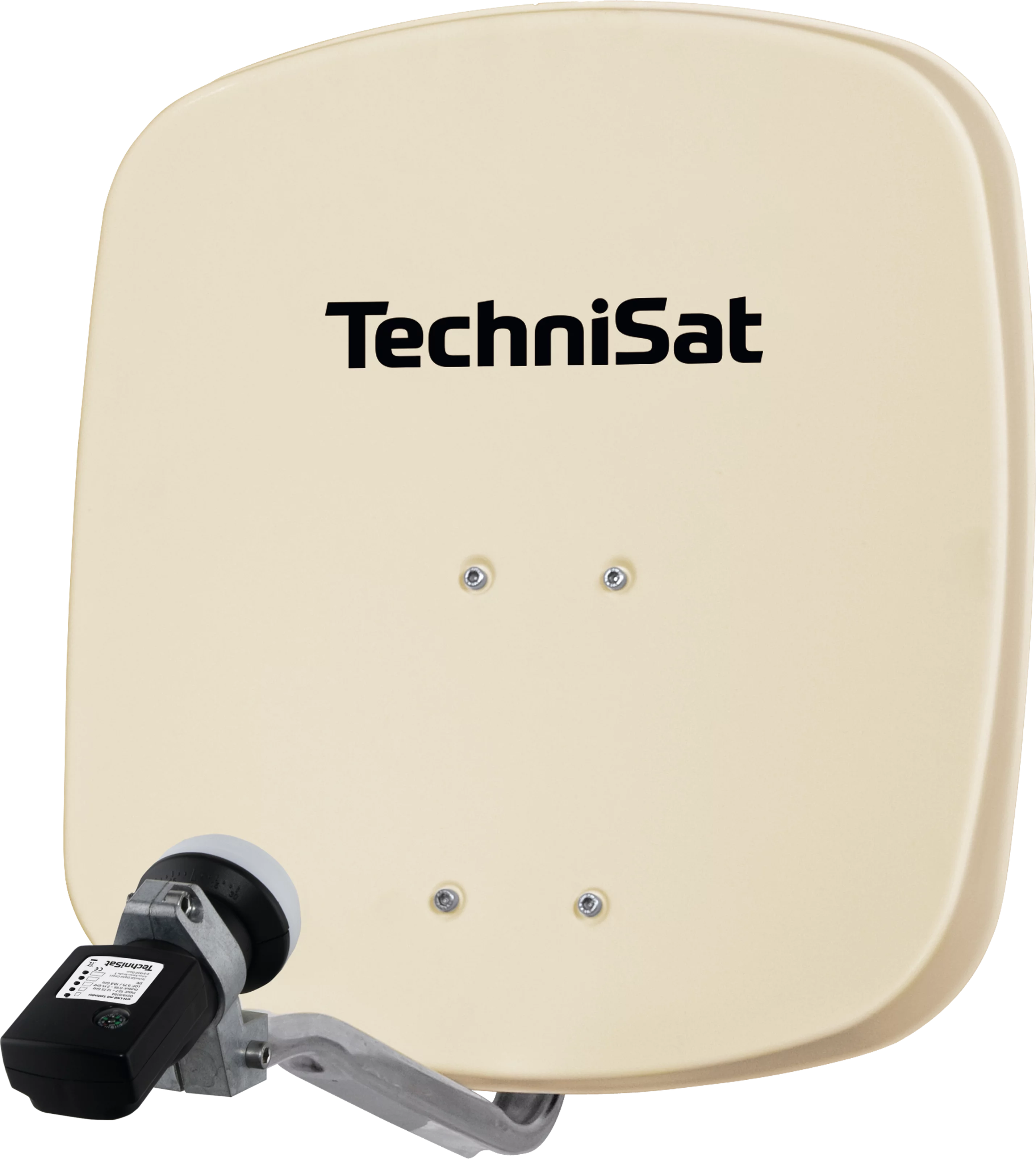

DIGIDISH 45 with sat finder V/H-LNB beige
PLN 320.00*
DIGIDISH 45 with sat finder V/H-LNB
Thanks to its ingenious reflector design the reception performance of the DigiDish 45 is better than with many 60 cm mirrors - and that is with a far lower size of reflector.
PLN 320.00*
incl. VAT.
- High-quality satellite dish: The aluminum-made reflector ensures long durability and weather protection thanks to its stable construction and double-sided powder coating
- Pre-assembled: Installation-friendly and warp-resistant satellite system for maximum reception performance – extremely stable and durable due to the use of only high-quality materials

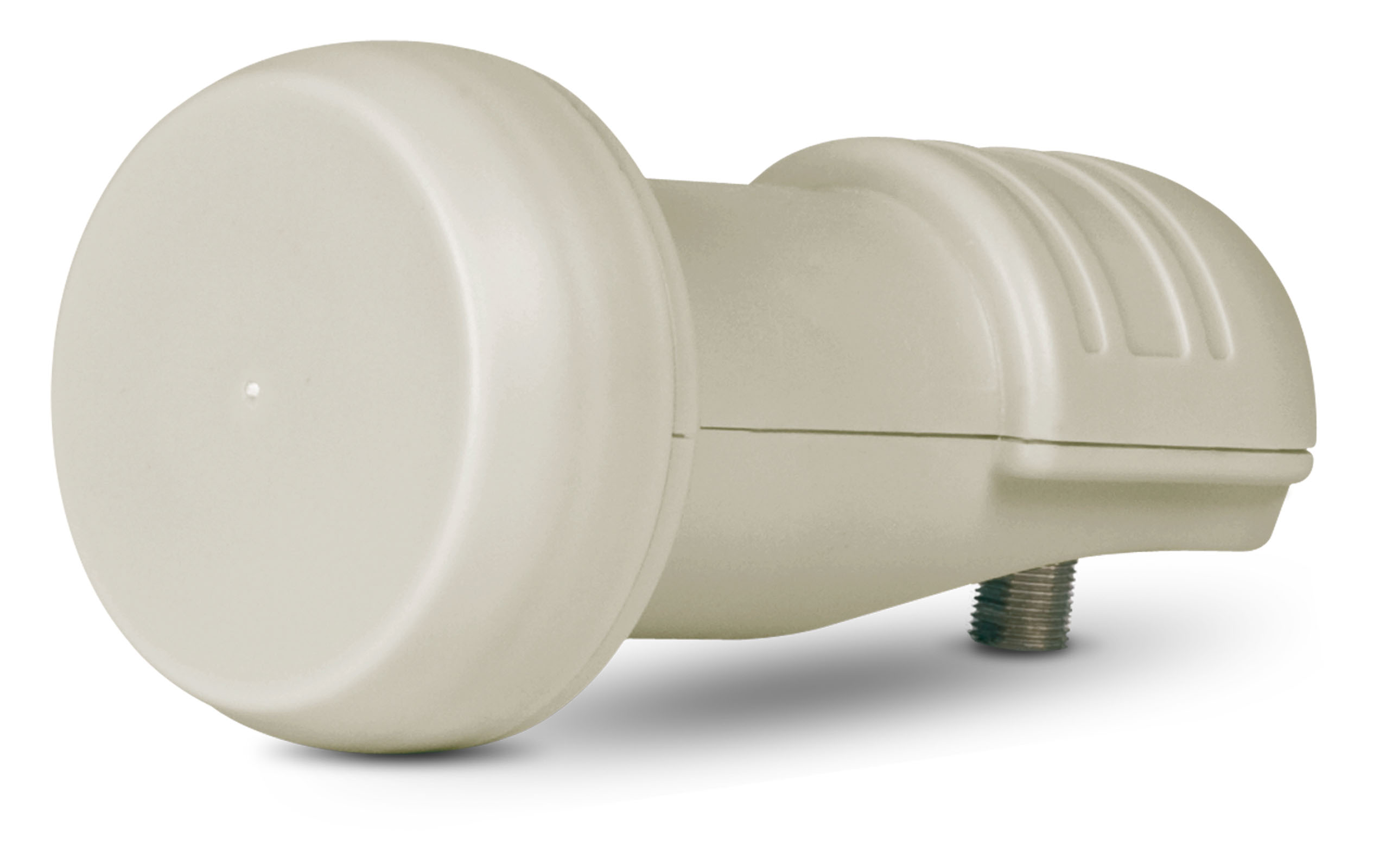

- Single-user reception: The satellite dish is delivered with a single LNB. Quick alignment via Satfinder: Level meter and compass are integrated in the LNB.
- Discreet installation: Thanks to the small and extremely space-saving design, the satellite dish is ideal for installation, e.g. on balconies or for camping use.
Satellite dish 45 cm, LNB, wall bracket, screws, tool, mounting instruction
High-performance aluminium offset dish antenna (45 cm)
The DigiDish 45 consists of high-quality aluminium and is powder-coated on both sides. The carefully calculated parabolic shape ensures that the reception performance of the DigiDish 45, which has a diameter of only 45 cm, is better than that of many 60 cm dishes - in spite of the much smaller size.
Simple installation
The DigiDish 45 is - just like the DigiDish 33 - ideal for mounting on balconies. The pre-assembled mounting bracket ensures installation of the dish is quick and easy.
The DigiDish 45 consists of high-quality aluminium and is powder-coated on both sides. The carefully calculated parabolic shape ensures that the reception performance of the DigiDish 45, which has a diameter of only 45 cm, is better than that of many 60 cm dishes - in spite of the much smaller size.
Simple installation
The DigiDish 45 is - just like the DigiDish 33 - ideal for mounting on balconies. The pre-assembled mounting bracket ensures installation of the dish is quick and easy.
| Product Information | |
|---|---|
| EAN | 4019588041950 |
| Colour | beige |
| Item no. | 1045/8195 |
| Weight (Box) | 3,5 kg |
| Weight | 2,7 kg |
| Device (W x H x D) | 45 x 48 cm |
| Box | 51 x 51 x 23 cm |
| sonstiges | |
|---|---|
| bf_filter_diameter | 45 cm |
| bf_filter_number_of_participants | 1 |
| bf_filter_number_satellites | 1 |
| bf_filter_austattung | with LNB |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| Phase noise | -75 @10kHz |
| Temperature drift | ± 2,5 MHz |
| Accuracy | ± 1 MHz |
| LNB control | |
|---|---|
| Vertical | 12 - 14,5 V |
| Horizontal | 16 - 20 V |
| Band switch | 22 kHz |
| General characteristics | |
|---|---|
| Material | Aluminium |
| Material strength | 1 mm |
| Coating | Powder-coated on both sites |
| Colour | beige, polar white, slate-grey, brick-red |
| including Wall bracket | Yes |
| Handling/comfort | |
|---|---|
| SAT-Finder | Yes |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,7 dB max. |
| Upper frequency range | 0,7 dB max. |
| Noise figure | typ. 0,9 dB |
| Output frequency range | |
|---|---|
| Low band | 950 - 1.950 MHz |
| High band | 1.100 - 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 12 ... 20 V |
| Power consumption | typ. 150 mA |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 1 |
| Technical data | |
|---|---|
| Rated measurement | 0,45 m |
| F/D | 0,6 |
| Gain | 32,2 dBi @11,3 GHz |
| Offset angle | 30 ° |
| Feed reception | 40 mm |
