SCR-LNB beige
PLN 184.00*
SCR-LNB
SCR-LNB with 2 legacy outputs
PLN 184.00*
incl. VAT.
- 4 Receiver mit SCR-Unterstützung anschließbar
- 2 Receiver über Legacy-Ausgang anschließbar
- SCR-Protokoll gemäß EN 50494
- Wetterschutzgehäuse
- Feed-ø 40 mm
TechniSat SCR-LNB
The TechniSat SCR LNB can provide up to 4 participants via one coaxial cable with the complete programs of a satellite. This is also the ideal solution for signal feed-in of multi-tuner devices (twin / quad receiver) to watch a program while recording one or more other (DVR). The two additional LNB legacy outputs offer additional flexibility for the connection of non-SCR-compatible receivers. So can be operated without the use of a multi-switch up to six different digital TV sets or receiver.
| Product Information | |
|---|---|
| EAN | 4019588178861 |
| Colour | beige |
| Item no. | 0017/8886 |
| Weight (Box) | 344 g |
| Weight | 292 g |
| Device (W x H x D) | 14,5 x 6 x 11,5 cm |
| Box | 12,3 x 6,5 x 15 cm |
| sonstiges | |
|---|---|
| bf_filter_number_of_participants | 6 |
| bf_filter_number_satellites | 1 |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 3 MHz |
| Phase noise | -80 @10kHz |
| LNB control | |
|---|---|
| Vertical | 11,5 ... 14 V |
| Horizontal | 16 ... 19 V |
| Band switch | 22 kHz |
| DiSEqC | 1 |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -30 ... 60 °C |
| General characteristics | |
|---|---|
| Colour | white |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | 1 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| Power consumption | max. 280 mA @13,5 V |
| Single-cable output | |
|---|---|
| Output frequency | 950 ... 2.150 MHz |
| Number of output channels | 4 |
| Frequency of the output channels | 1210, 1420, 1680, 2040 MHz |
| Technical data | |
|---|---|
| Outputs | 3 ; 1x SCR (gilded), 2x Legacy |
| Amplification | 57 dB |
| Feed reception | ø 40 mm |
| Connector type | F-Buchse |
| Impedance | 75 Ω |

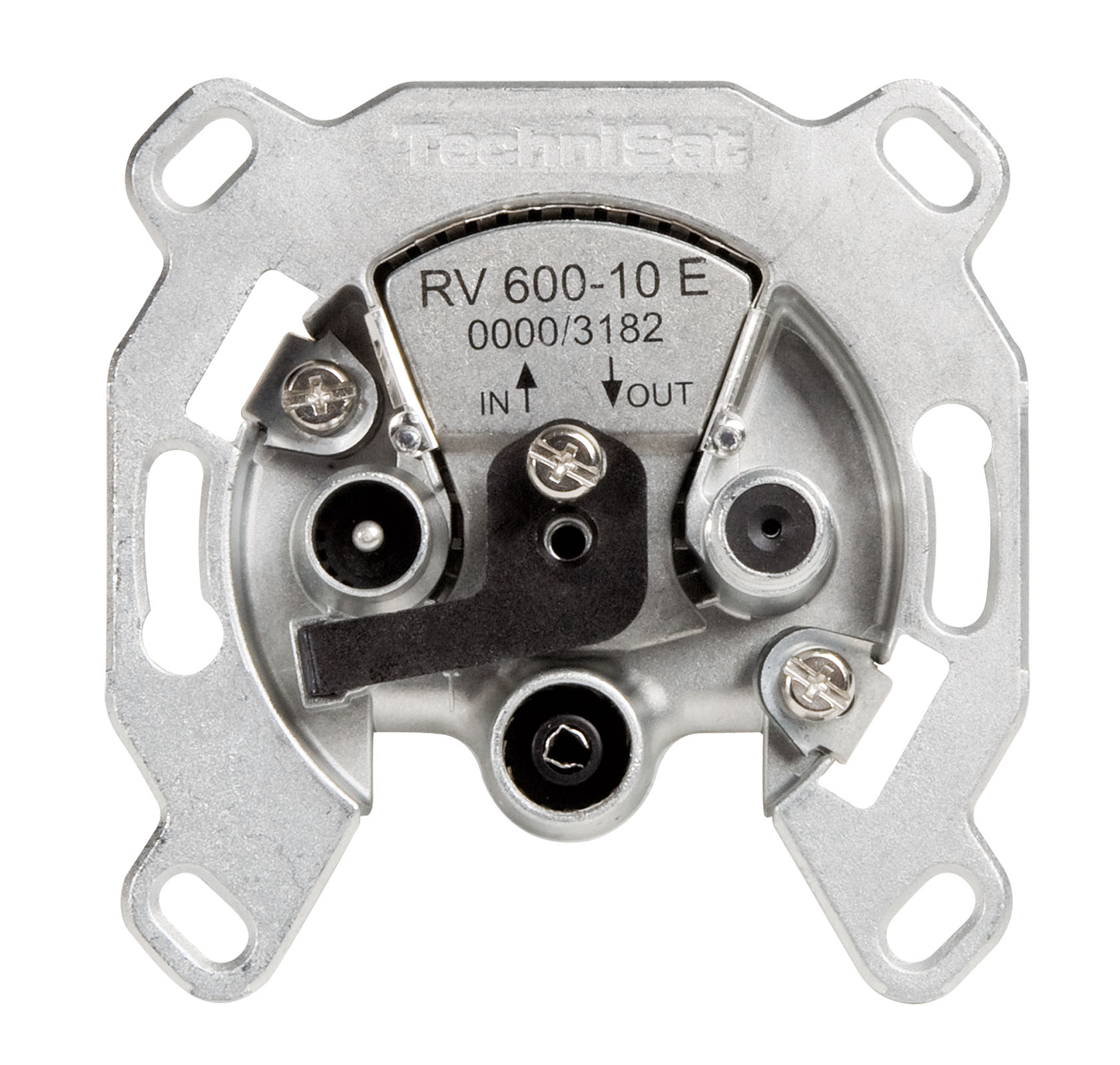

optionales Zubehör
