SKYRIDER DOME ISI Weiß
PLN 3,920.00*
PRODUCT NO LONGER AVAILABLE

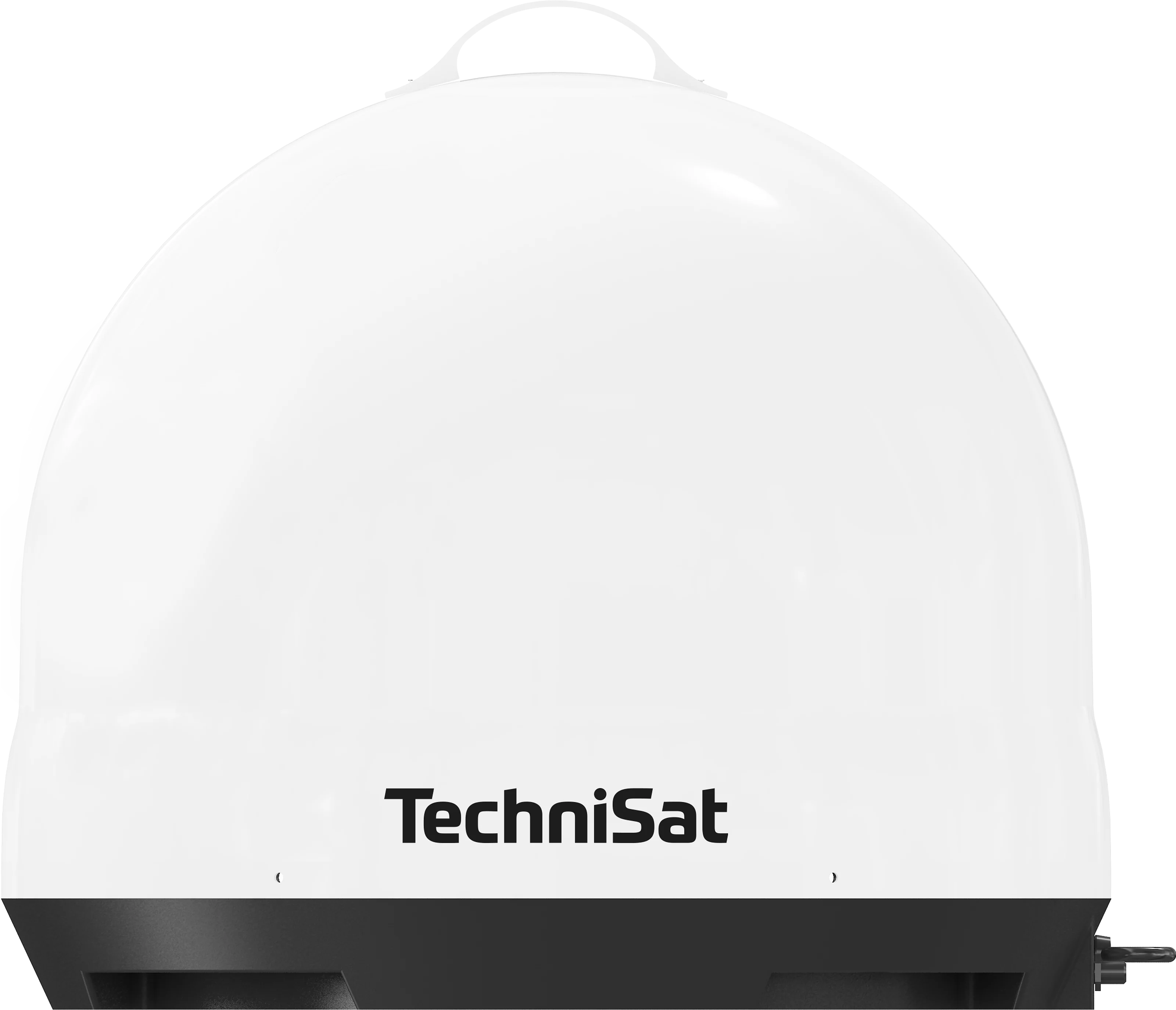

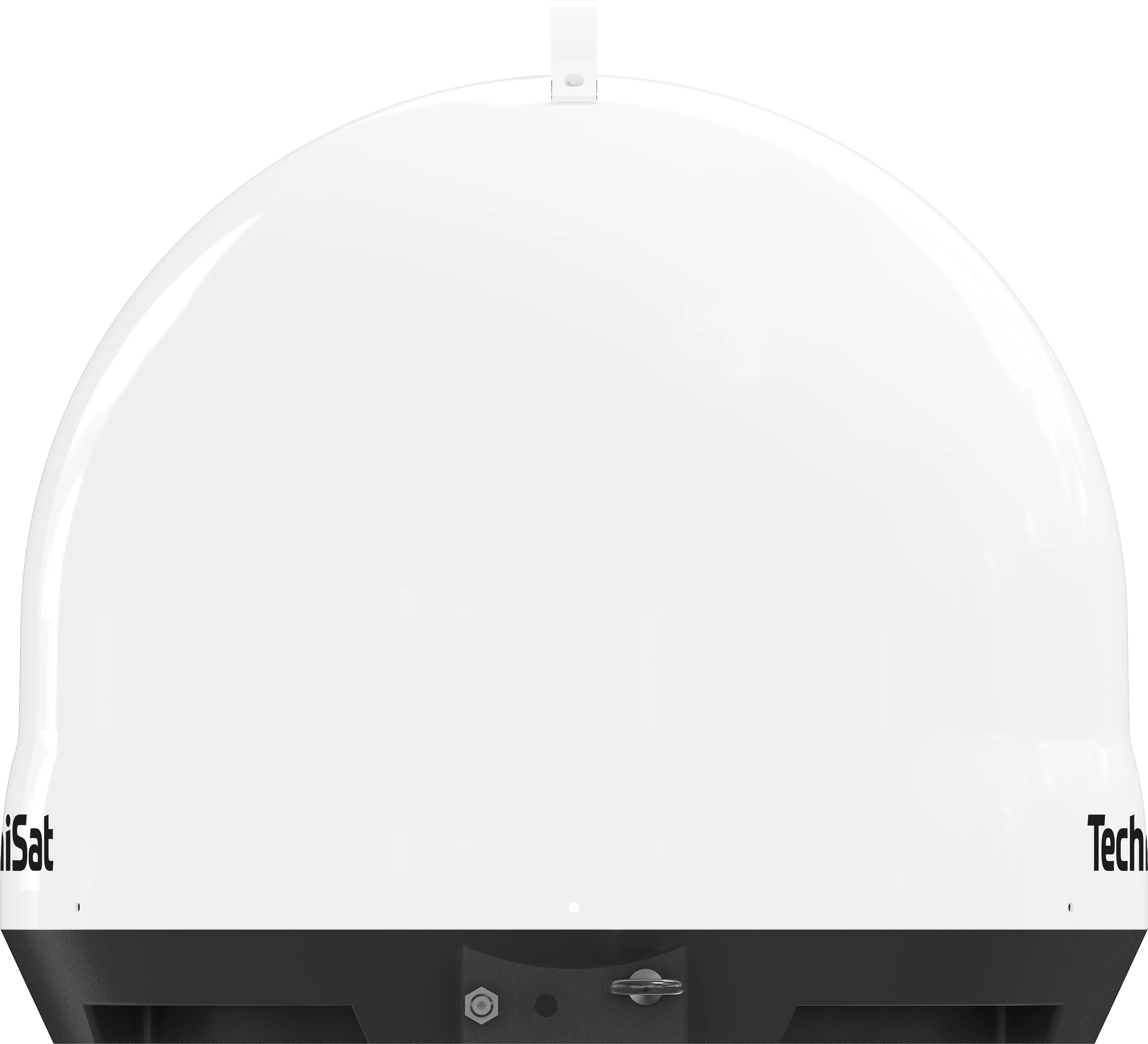

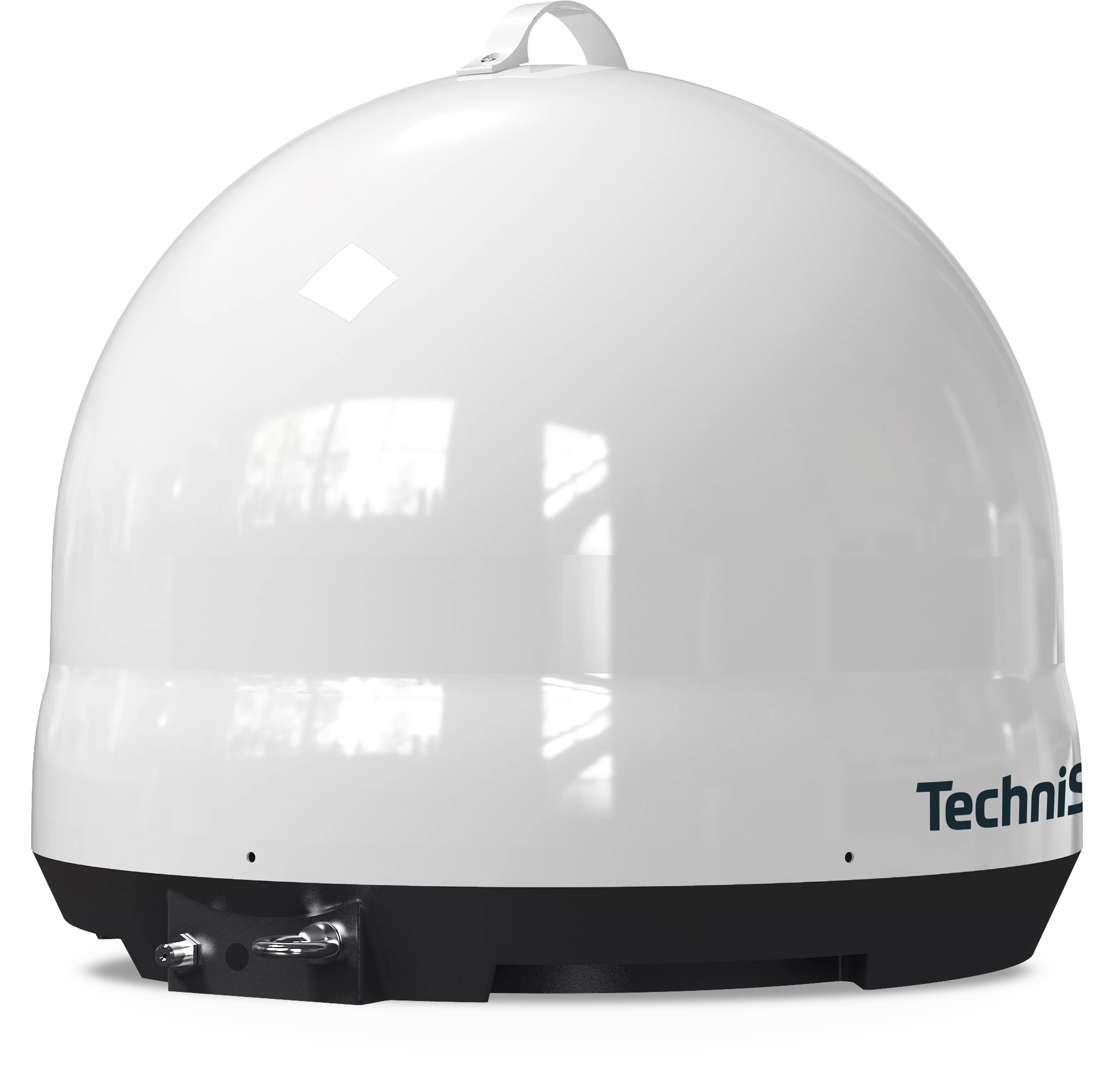

SKYRIDER DOME ISI
(0146/1580)
Compact, mobile and automatic DigitalSat sYstem with single LNB for Astra 19.2° East
| Product Information | |
|---|---|
| EAN | 4019588465800 |
| Colour | Weiß |
| Item no. | 0146/1580 |
| Weight (Box) | 6,7 kg |
| Weight | 4,1 kg |
| Device (W x H x D) | 45 x 41 x 45 cm |
| Box | 47,7 x 45,1 x 47,7 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz (± 3MHz) |
| High band | 10,6 GHz (± 3MHz) |
| LNB control | |
|---|---|
| Vertical | 11,5 ~ 14 V |
| Horizontal | 16 ~ 19 V |
| Ambient operating conditions | |
|---|---|
| IP class | X 6 |
| Ambient temperature | -10 ... 50 °C |
| General characteristics | |
|---|---|
| Material | plastic |
| Colour | white |
| Handling/comfort | |
|---|---|
| Satellite search time | Bis zu 180 s (typisch) |
| Ideal for camping | Yes |
| Input frequency range | |
|---|---|
| Low band | 10,7 - 11,7 GHz |
| High band | 11,7 - 12,75 GHz |
| Output frequency range | |
|---|---|
| Low band | 950 - 2.150 MHz |
| High band | 1.100 - 2.150 MHz |
| Power consumption | |
|---|---|
| In operation | 10 W max. (während der Satellitensuche) |
| Power supply | |
|---|---|
| Nominal voltage | AC 110 ... 240 V |
| Power consumption | 180 mA (LNB) |
| Effective output | 10 W / 340 mA max. |
| Prepared for | |
|---|---|
| Number of clients | 1 |
| Number of orbit positions | 1 (Astra 19.2° Ost) |
| Technical data | |
|---|---|
| Outputs | 1 |
| F/D | 0,23 |
| G/T | 9,7 |
| Gain | 31 dBi |
| Satellite positions | Astra 19,2° E |
| Connector type | F socket |
