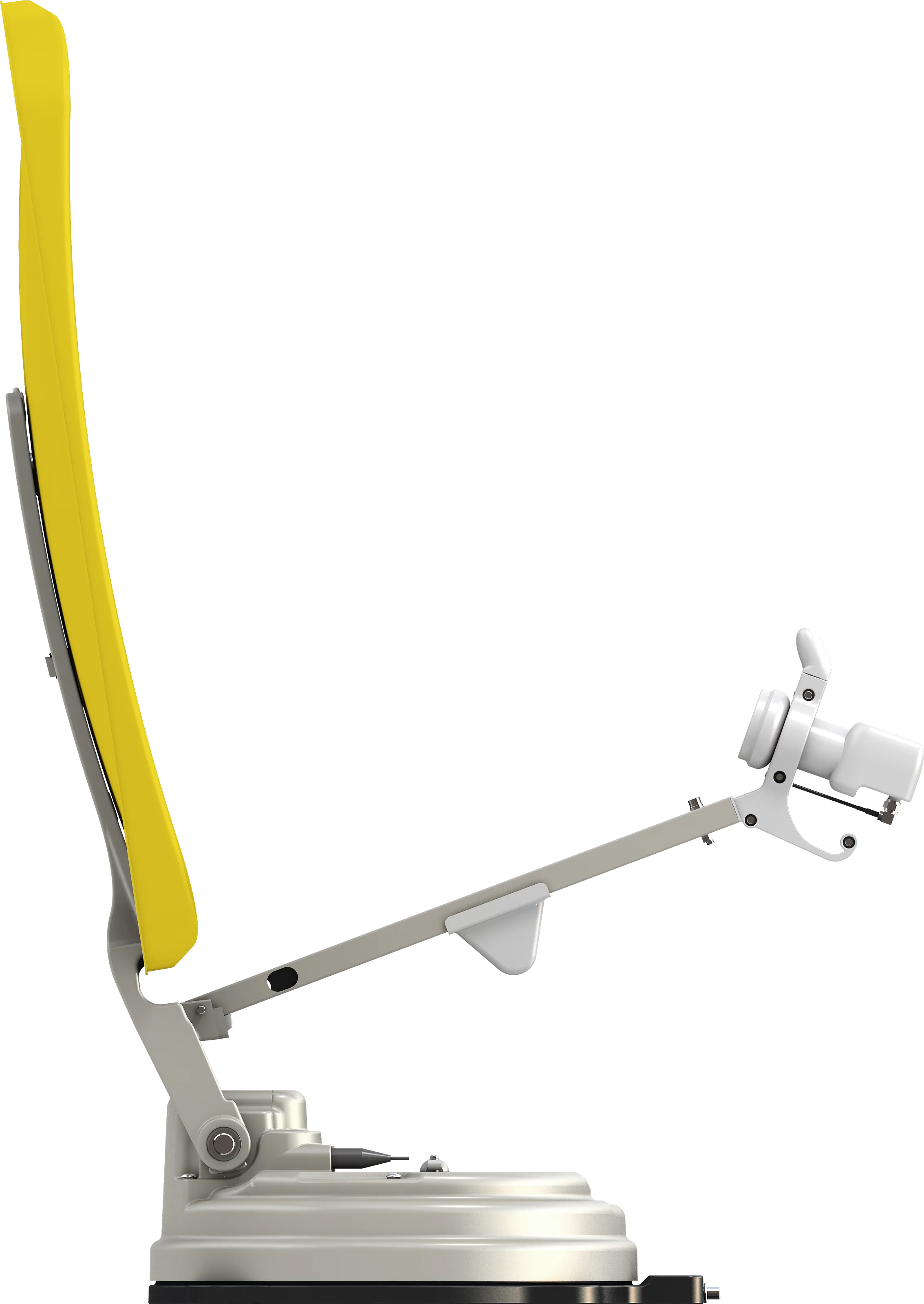

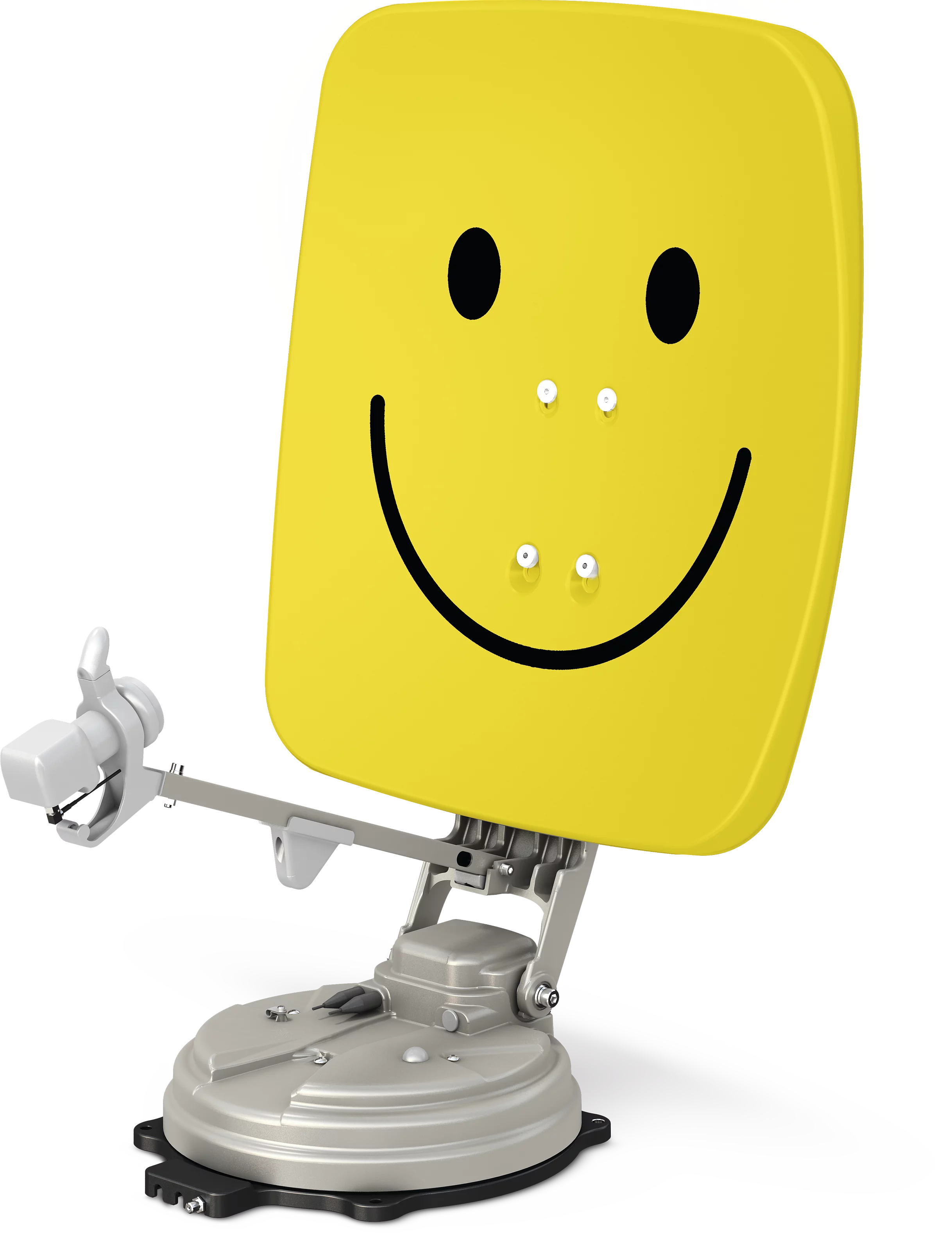

SKYRIDER 65 Single yellow with Smiley
PLN 4,900.00*
The camping boom is in full swing. More and more people are on the road in their own camper van criss-crossing Germany, Europe, sometimes even the globe. When people are on the road in their camper van for a lengthy time or they have made their camper their permanent home, the question arises: How can I receive my favourite TV and radio channels in my camper van? Our answer: With the SKYRIDER 65, a satellite receiver specially designed for use in camper vans and mobile homes, which guarantees the greatest possible TV and radio variety while on the go via satellite. The heart of the SKYRIDER 65 is the controller unit, a small box that you place inside your camper van. The unit is connected to the satellite antenna on the roof and, at the other end, the controller is connected to a receiver such as a satellite receiver or television. With the SKYRIDER 65 version with a single LNB, you can feed satellite signals to a single receiver/television, whereas with the twin LNB version, it is possible to feed two receivers/televisions at the same time. And all fully automatically. When you park up your camper van, satellite reception can be easily activated via the controller unit. The satellite antenna extends at the touch of a button. But only when the vehicle is parked up of course. When you're driving, the antenna remains folded up on the roof, protected against wind and low-lying bridges. By coupling it to the ignition of the camper van, you can be sure that the antenna does not straighten up while you're driving. Once the antenna is in the upright position, it will automatically start to align with the position of the desired satellite. Alignment takes three minutes at most - after that you will receive crisp, clear TV and radio channels. The controller unit is preset to receive ASTRA 19.2. This satellite allows you to receive the majority of well-known German-language TV channels. There are 10 pre-programmed satellites for receiving channels from abroad. Installing the SKYRIDER 65 is so simple. The SKYRIDER set contains a 65 cm high quality SATMAN 65 satellite antenna made of powder-coated aluminum, which sits on a motorised mount. The bracket can be mounted directly onto the roof of your camper. To do so, first apply a carrier plate to the roof using an industrial adhesive. The satellite antenna is securely fastened onto this carrier plate together with the bracket. Next the power supply for the motorised antenna is set up using the camper van's ignition and the satellite cable is routed from the LNB of the antenna to the controller unit inside the camper van - and the basic installation of the SKYRIDER 65 is all done.
Automatische DigitalSat-Empfangsanlage
für Camper/Wohnmobile
• automatisches Ausrichten nach dem gewünschten Satellit
• starke Empfangsleistung
• einfache Bedienung über einen Controller im Fahrzeuginneren
• viele vorprogrammierte Satelliten-Positionen


Der Campingboom geht weiter: Immer mehr Menschen ziehen mit dem eigenen Camper durch Deutschland, Europa, mitunter sogar durch die ganze Welt. Dabei stellt sich insbesondere denjenigen, die mit dem Campingmobil länger unterwegs sind oder die Ihren festen Platz gefunden haben, die Frage: Wie kann ich auch im Camper meine TV- und Radioprogramme empfangen? Unsere Antwort: Mit dem SKYRIDER 65, einer speziell für den Camping-Einsatz und das Wohnmobil konzipierten Sat-Empfangseinheit, die Ihnen auch unterwegs die ganz große TV- und Radiovielfalt via Satellit garantiert.


Besuchen Sie unsere TechniSat Homepage: https://www.technisat.de
Product Information
EAN 4019588155824
Colour yellow with Smiley
Item no. 1565/1582
Weight (Box) 20,25 kg
Weight 13,55 kg
Device (W x H x D) 67 x 18,5 x 98 cm
Box 98,5 x 71,8 x 42,9 cm
Ambient operating conditions
IP class X 6
Ambient temperature -20 ... 60 °C
Local oscillator
Low band 9,75 GHz
High band 10,6 GHz
LNB control
DiSEqC 1.0 / 1.1
Vertical 10,5 ~ 14,5 V
Horizontal 15,5 ~ 21 V
Dimensions / Weight
Device height (extended) 980 mm
Device height (retracted) 175 mm
General characteristics
Material plastic
Colour white
Handling/comfort
Maximum permissible speed 130 km/h
Satellite search time Bis zu 180 s (typisch)
Input frequency range
Low band 10,7 - 11,7 GHz
High band 11,7 - 12,75 GHz
Noise factor
Noise figure typ. 0,7 dB
Output frequency range
Low band 950 - 1.950 MHz
High band 1.100 - 2.150 MHz
Power consumption
In operation 50 W / 4 A max. (während der Satellitensuche)
Power supply
Nominal voltage DC 12 V
Power consumption 170 mA (LNB)
Effective output 50 W / 4,2 A max.
Prepared for
Number of orbit positions 10
Number of clients 1
Technical data
Outputs 1
F/D 0,6
G/T 14,5
Offset angle 27 ° (EL 0 ~ 145° / AZ 390°)
Gain 35,7 dBi
Amplification 55 ... 65 dB
Connector type F socket
Skew -90 bis 90 °
SATVISION 04/20 - Testnote: gut (90,8 %)

SATVISION 04/20 - Testnote: gut (90,8 %)

SATVISION 04/20 - Camping-Tipp

SATVISION 04/20 - Camping-Tipp
