TECHNINET BS3 base unit white/red
PLN 9,999,999.00*
PRODUCT NO LONGER AVAILABLE

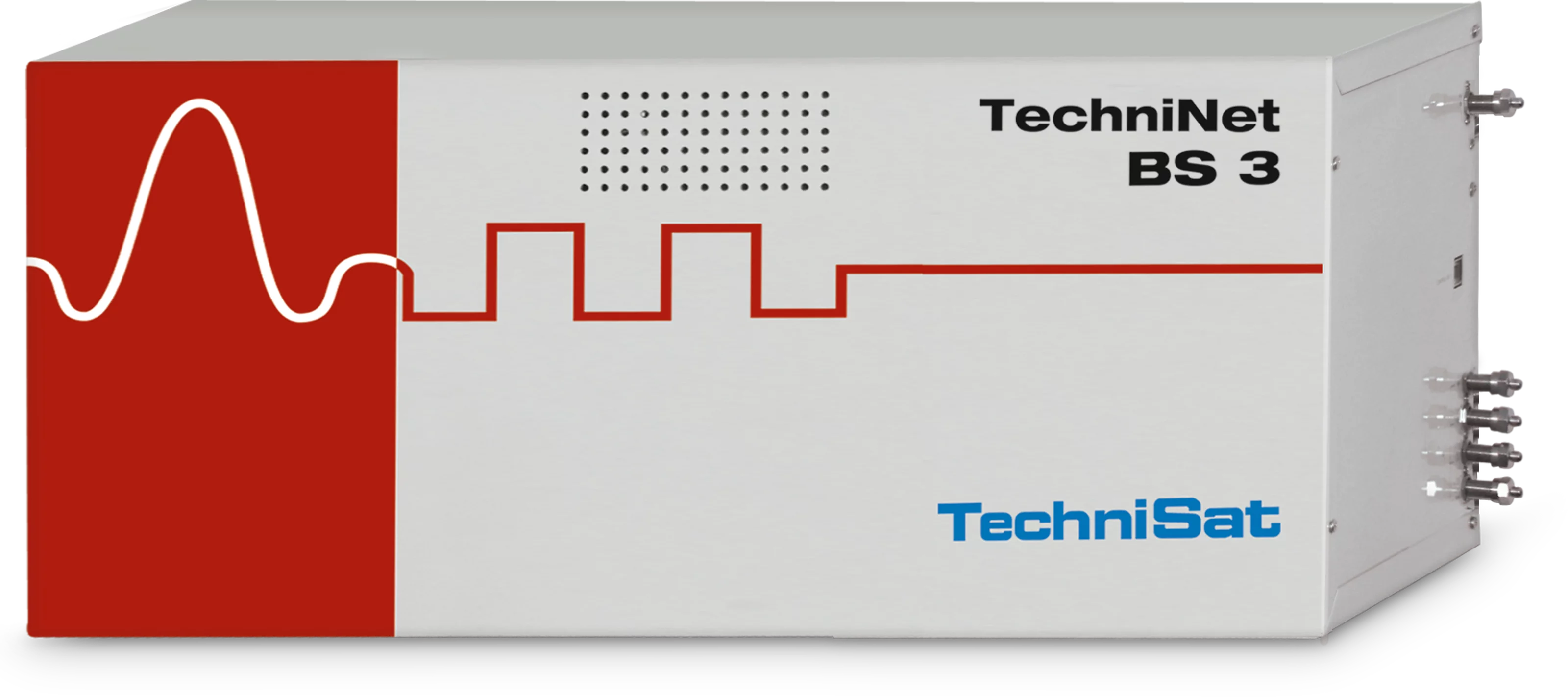

TECHNINET BS3 base unit
(0000/5947)
Professional digital head-station with integrated multi-switch system. With the TechniNet BS 3 you yourself decide which programmes are fed into your own cable network.
| Product Information | |
|---|---|
| EAN | 4019588059474 |
| Colour | white/red |
| Item no. | 0000/5947 |
| Weight (Box) | 10 kg |
| Weight | 7,26 kg |
| Configuration, monitoring | |
|---|---|
| Network interface | keiner |
| Service connection | RJ25, serial, for TechniNet Programmer |
| General | |
|---|---|
| Power supply | 100 ... 250 VAC / 50 ... 60 Hz |
| Power input | Max. 120 W |
| Nominal temperature range | 0 ... 45 °C |
| Relative humidity | 0 ... 80 % |
| EMV | EN50083-2, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003, EN61000-3-2:2066, EN61000-3-3:2008 |
| Security | VDE 0855-1, DIN EN 60728-11:2005 |
| General characteristics | |
|---|---|
| Top features | Kopfstation mit acht Steckplätzen für acht Karten |
| Top features | Mit integriertem Multischaltersystem 4/8 zum verteilen der ZF-Ebenen auf die Umsetzer-Karten |
| Top features | Programmierung über Kabelfernbedienung |
| Top features | Hochwertiges, effizientes Schaltnetzteil |
| Top features | Für TechiNet PAL 1 CI-Umsetzer, TechniNet AV/PAL-Umsetzer |
| Top features | Wandmontage |
| Power consumption | |
|---|---|
| Power switch | Yes |
| Power supply | |
|---|---|
| Frequency | 50 ... 60 Hz |
| Nominal voltage | 230 V |
| Mains adapter | internal |
| RF output | |
|---|---|
| Reception range | 42 ... 862 MHz |
| input / output | F-socket |
| Impedance | 75 Ω |
| Output level | ≤ 96 (± 3 dB) @ 256-QAM typisch |
| SAT IF input / Multiswitch | |
|---|---|
| Reception range | 950 ... 2.150 MHz |
| input / output | F-socket |
| Impedance | 75 Ω |
| Input level | 50 ... 90 (Summenpegel) |
| LNB voltage supply | 13 / 18 V & 22kHz |
| LNB power supply | Max. 300 mA je Eingang |
