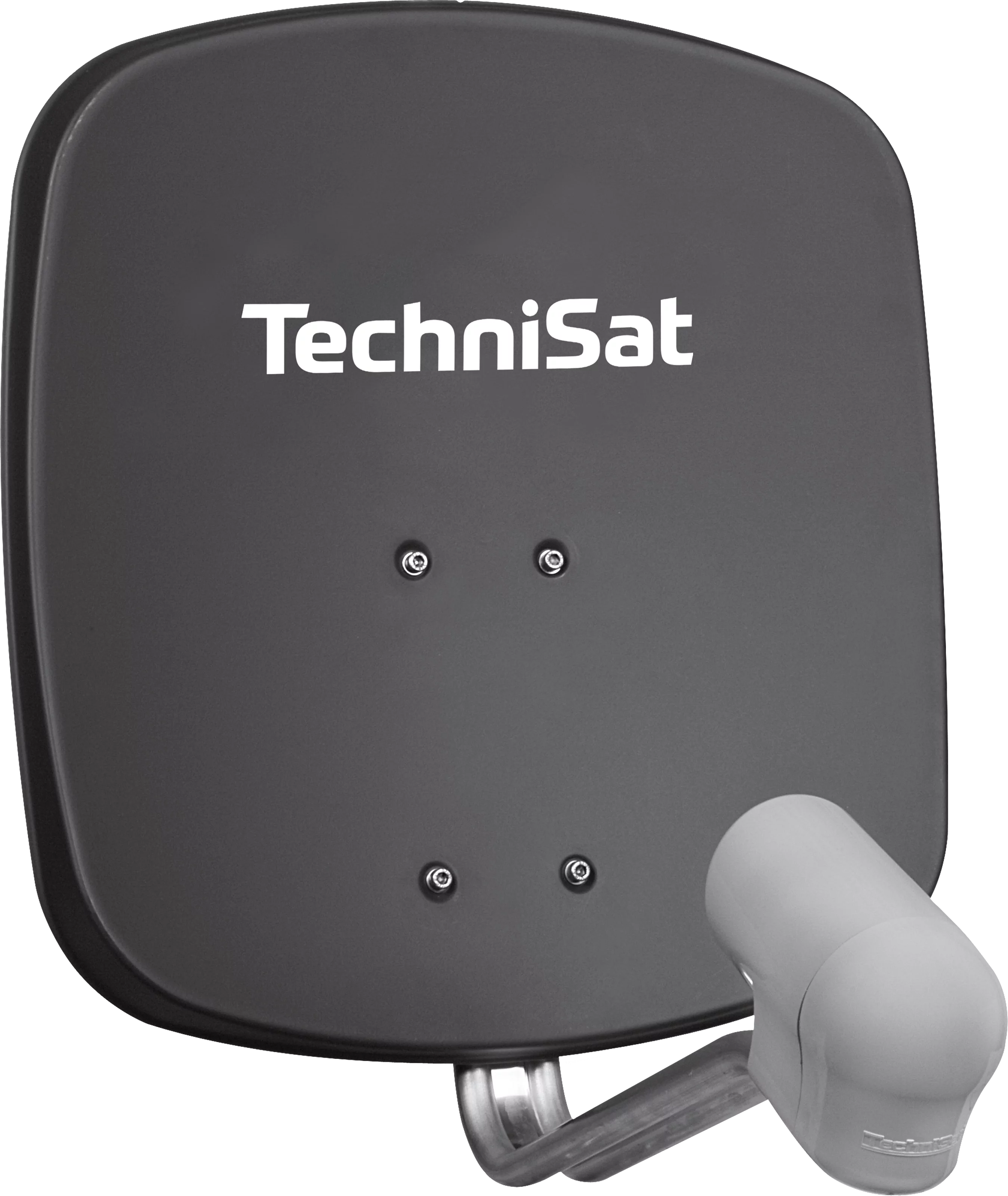

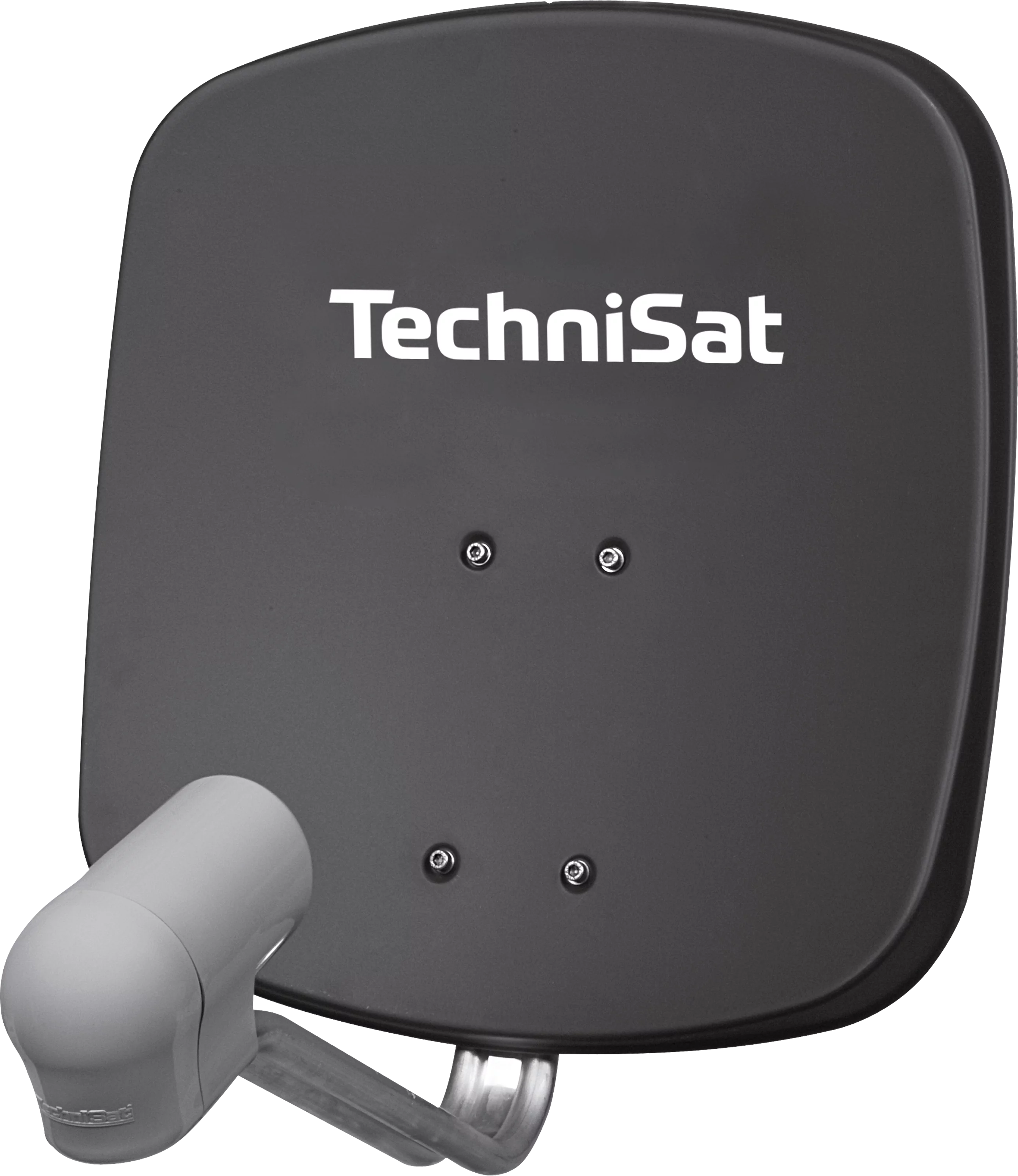

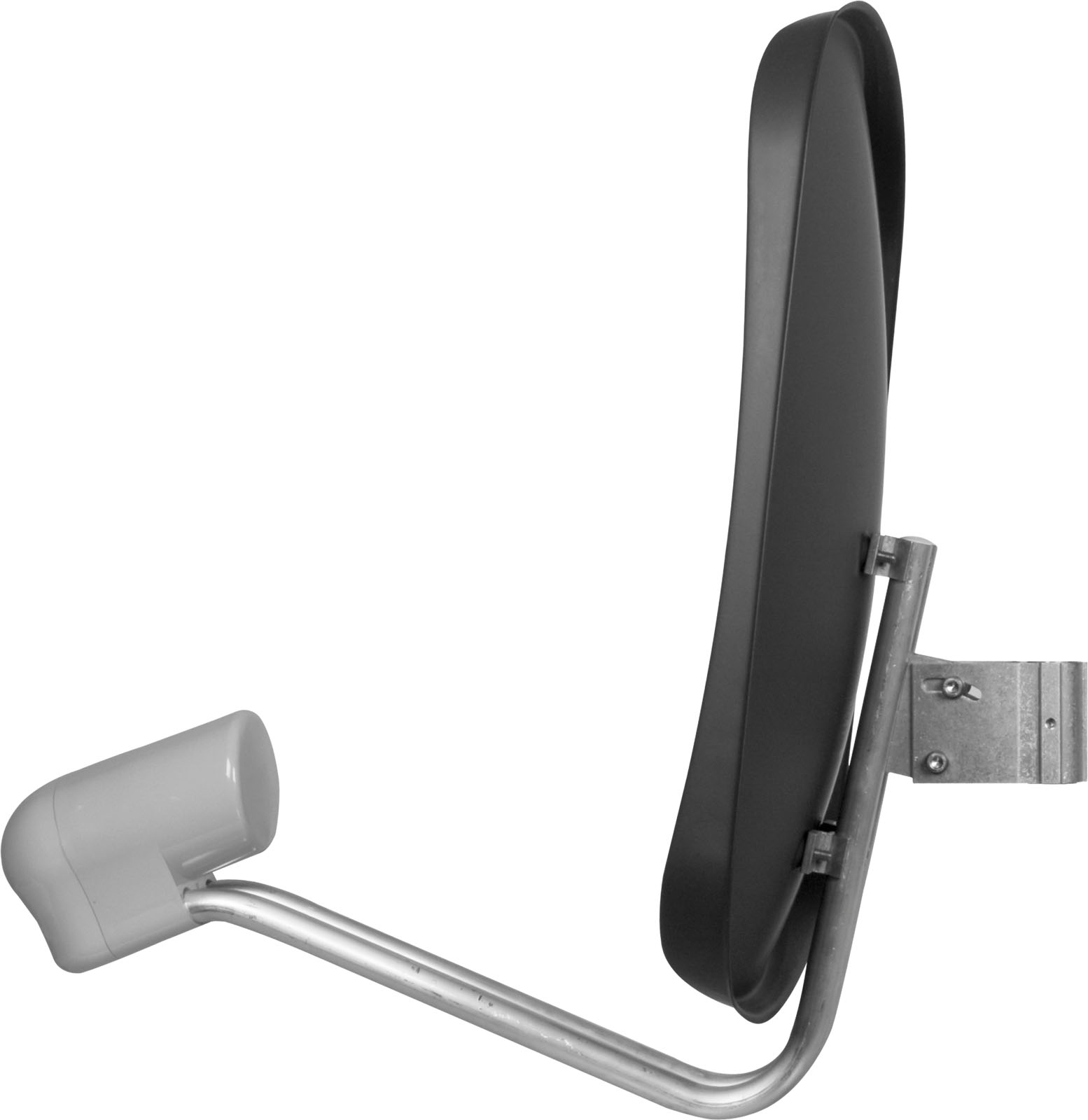

SATMAN 45, UNYSAT V/H-LNB slate/grey
PLN 450.00*
SATMAN 45, UNYSAT V/H-LNB
High-quality 45 cm large aluminium offset reflector in reliable SATMAN design (available as single and/or two-participant system)
PLN 450.00*
incl. VAT.
- A dish with a diameter of only 45 cm is made of the highest quality aluminum (powder coated on both sides)
- Includes LNB with outdoor housing
Satellite dish 45 cm, LNB, wall bracket, screws, tool, mounting instruction
High-performance offset dish
This aluminium offset dish comes in a SATMAN version, is intended for use by a single party, has a diameter of 45 cm, and provides exceptionally high performance. This elegant and stylish dish provides outstanding reception characteristics, as a result of the high-quality materials used, the precise shape of the antenna, and also because of the use an LNB of first-class quality. The high-quality reception electronics (LNB) is protected from harmful environmental influences by a special weatherproof housing. The weatherproofing of the antenna itself is ensured by the powder coating on both sides of the aluminium dish. All screws and washers are made of high-quality stainless steel. The external installation is thus exceptionally resistant.
Unobtrusive mounting
Thanks to its extremely small dimensions, the SATMAN 45 can even be mounted in locations in which larger dishes would detract from the appearance of a balcony or building. It is also easy to install two SATMAN 45 dishes, in order to receive signals from two satellite positions. This array would still take up less space than the more usual 85 cm diameter dish one would use for two satellites.
This aluminium offset dish comes in a SATMAN version, is intended for use by a single party, has a diameter of 45 cm, and provides exceptionally high performance. This elegant and stylish dish provides outstanding reception characteristics, as a result of the high-quality materials used, the precise shape of the antenna, and also because of the use an LNB of first-class quality. The high-quality reception electronics (LNB) is protected from harmful environmental influences by a special weatherproof housing. The weatherproofing of the antenna itself is ensured by the powder coating on both sides of the aluminium dish. All screws and washers are made of high-quality stainless steel. The external installation is thus exceptionally resistant.
Unobtrusive mounting
Thanks to its extremely small dimensions, the SATMAN 45 can even be mounted in locations in which larger dishes would detract from the appearance of a balcony or building. It is also easy to install two SATMAN 45 dishes, in order to receive signals from two satellite positions. This array would still take up less space than the more usual 85 cm diameter dish one would use for two satellites.
| Product Information | |
|---|---|
| EAN | 4019588349803 |
| Colour | slate/grey |
| Item no. | 1345/9800 |
| Weight (Box) | 3,7 kg |
| Weight | 2,9 kg |
| Device (W x H x D) | 45 x 48 cm |
| Box | 51 x 51 x 23 cm |
| sonstiges | |
|---|---|
| bf_filter_number_of_participants | 1 |
| bf_filter_number_satellites | 1 |
| bf_filter_austattung | with LNB |
| bf_filter_diameter | 45 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14,5 V |
| Horizontal | 16 - 19 V |
| General characteristics | |
|---|---|
| Top features | Only 45 cm small |
| Material | Aluminium |
| Top features | 1 participants |
| Top features | 1 orbital position (for example Astra 19.2° East) |
| Top features | Especially suitable for balcony installation / Ideal for the city |
| Top features | Ideal for ground and wall mounting |
| Material strength | 1 mm |
| Coating | Powder-coated on both sites |
| Colour | beige, polar white, slate-grey, brick-red |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,6 dB max. |
| Upper frequency range | 0,6 dB max. |
| Output frequency range | |
|---|---|
| Low band | 950 - 1.950 MHz |
| High band | 1.100 - 2.150 MHz |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 1 |
| Technical data | |
|---|---|
| Rated measurement | 0,45 m |
| F/D | 0,6 |
| Gain | 32,2 dBi @11,3 GHz |
| Offset angle | 30 ° |
| Feed reception | for UNYSAT-Universal-LNB |
