DIGIT ISIO S4

Name: DIGIT ISIO S4
Brand: TechniSat
SKU: 0000/4767
Price: 1190.0 PLN
Availability: SoldOut

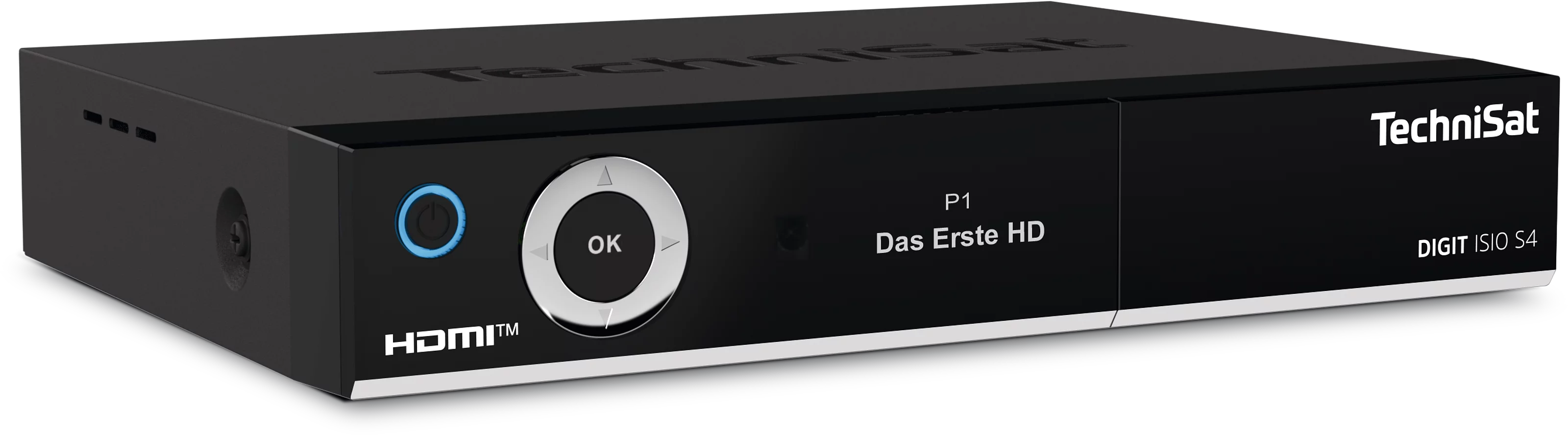

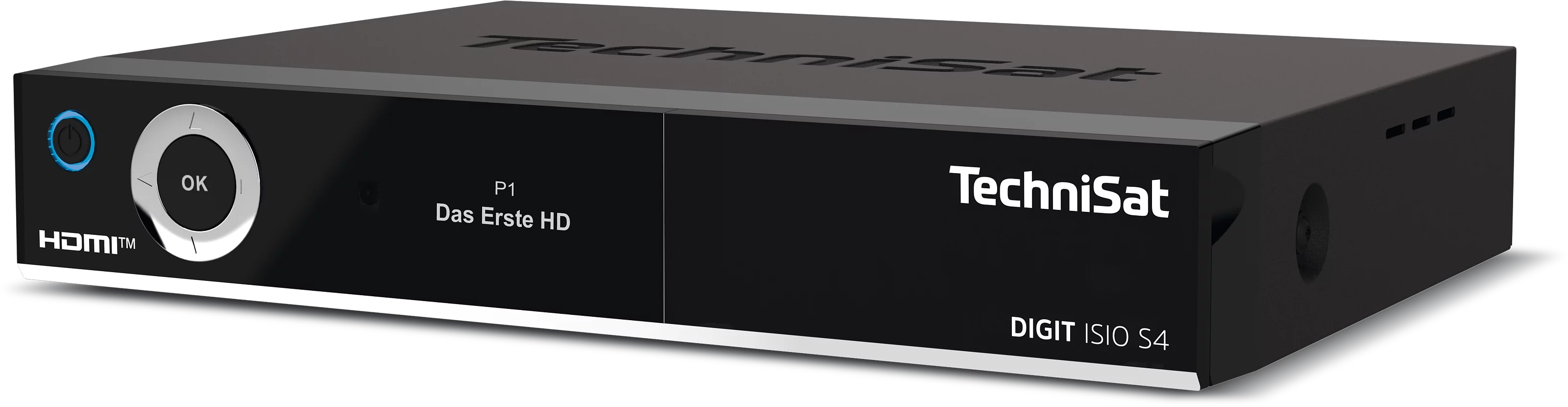

HDTV satellite receiver with twin tuner

Colour black titanium/black

PLN 1,190.00*

incl. VAT.

HDTV Twin tuner: Experience high-definition TV and record two programs simultaneously. Save recordings to USB or NAS for maximum flexibility
Multimedia hub: The receiver acts as a UPnP client/server within the home network, allowing you to stream and share multimedia content with other devices
HbbTV-compatible: Access broadcasters’ media libraries directly. Experience interactive TV and never miss your favorite shows again.
Easy operation: An installation assistant makes setup a breeze. The alphanumeric display and ISI mode with large font increase ease of use.

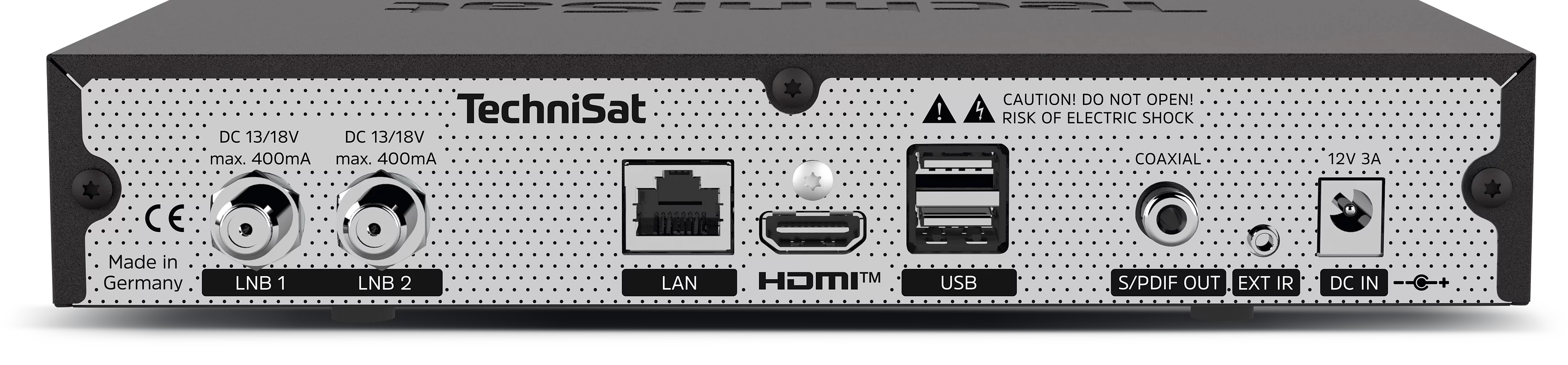

Versatile connections: equipped with HDMI, 2x USB, CI+, digital audio output, Ethernet, and connection for external infrared receiver. Also ideal for camping thanks to 12-volt option

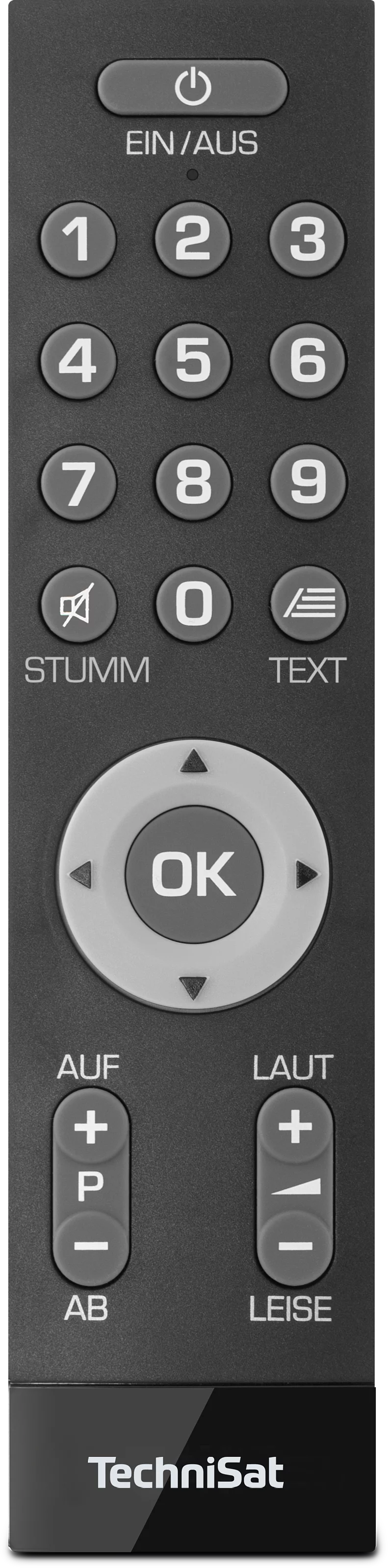

DIGIT ISIO S4, remote control TechniControl including batteries, power supply, HDMI cable, manual, warranty card

Product from the TechniSat PREMIUMLINE range. Exclusively available from authorized partners.

With the DIGIT ISIO S4 satellite receiver and integrated ISIO internet technologY, You have access to media libraries, ISIO applications and HbbTV. TwinTuner DVB-S/S2 will allow You, for example, to record Your favorite series and watch an interesting match at the same time. The recordings can be flexiblY stored on USB media or on the network (NAS) and plaYed back at anY time. In addition, the DIGIT ISIO S4 functions as an all-in-one multimedia center and can be used in Your home network as a UPnP client and server. The high-qualitY OLED screen displaYs station information. With the timer function, You can easilY control when the set-top box is turned on and off.

Technical Datasheet ( HTML / PDF )

html

Product Information
EAN	4019588047679
Colour	black
Item no.	0000/4767
Weight (Box)	1,29 kg
Weight	626 g
Device (W x H x D)	22 x 4 x 17,5 cm
Box	31 x 8 x 19,5 cm

Multimedia
DVR function	Yes
DVR storage medium	via USB
Timeshift	Yes
Recordings edition function	Yes
Recordings folder management	Yes

Filter-Navigation
Connections	USB
Resolution	Full HD
Features	App control
Reception type	Satellite (DVB-S/S2)
Tuner type	Twin tuner

WLAN
WLAN	with optional WLAN-Adapter 0005/3633

Ambient operating conditions
Ambient temperature	5 ... 35 °C
Humidity	10 ... 75 %

LNB control
Vertical	14 V
Horizontal	18 V
Band switch	22 kHz
Current consumption	max. 400 mA (short-circuit proof)
DiSEqC	1.0 / 1.2 / SCR1 / SCR2

TechniSat added value services
ISI-Mode	Yes
AUTOINSTALL	Yes
TECHNIMATIC	Yes
ISIPRO	Yes
TECHNIFAMILY	Yes
SFI	Yes

Internet/Network
HTML 5 support	Yes
Internet speed test	Yes
Webbrowser	Yes
HbbTV	Yes
ISIO Internet	Yes

Audio
Clear language from ARD	Yes via DVB

Connections
HDMI™ (out)	1
USB	2 (USB 2.0)
Common Interface Plus (CI+)	Yes
Digital electric audio output (S/PDIF)	Yes
F socket	2
Connector for external IR-Receiver	1
DC IN	1
Ethernet 1Gbit/s (RJ-45)	1

Decoder
Video decoder	MPEG-2 MP@HL/ML, H.264/MPEG-4 AVC
Audio decoder	MPEG-1 & MPEG-2 Layer I, II, III

Decryption system
CI+	Yes

Display
Picture in Picture (PIP)	Yes (2x HD, 2x SD, 1x SD u. 1x HD)
Picture and Picture (PAP)	Yes
Freeze frame	Yes
Zoom	Yes
SD	Yes
HD	Yes
1080p	Yes
1080i	Yes
720p	Yes
576p	Yes
576i	Yes
Type	7-segments, 4-digits, white

Handling/comfort
Page memory	1.000
Teletext subtitles	Yes
Media Player	Yes
Hotel mode	Yes
Remote control	Yes
Autostandby	Yes
Alarm	Yes
Teletext	Yes
Selection regional channels	Yes
Sleep timer	Yes
Ideal for camping	Yes
Channel presets	9.999
Clock	Yes

Hotel mode
Protected access to hotel mode	Yes
Customisable start screen	Yes
Lockable volume	Yes
Menu locking	Yes
Control panel lock	Yes
Integrated LED clock	Yes
Selectable start source	Yes
Selectable start channel	Yes

Network & communication
1000Base-T	Yes
IPv4	Yes
TCP/IP	Yes
RTP	Yes
DHCP	Yes
HTTPS	Yes
UDP	Yes
UPnP	Yes
HTTP	Yes
IGMP	Yes

Other features
OSD languages	German, Hungarian, Portuguese, Italian, Swedish, Greek, Spanish, Polish, English, French, Russian, Dutch, Czech, Turkish

Power consumption
Standby LED	0,4 W
In operation	17,1 W

Power supply
Nominal voltage	230 V
Frequency	50 Hz
Mains adapter	external DC12V/3A

Streaming
Cloud store	Ja
DLNA Client	Yes
Parental Control	Yes
DLNA Server	Yes

Supported formats & codecs
Video-Codecs	MPEG-2, MPEG-4, MPEG-1, H.264 (up to H.264/AVC Level 4.2)
Video-Formats	M4V, MP4, MKV, MOV, MPG, MTS, TS, TS4, VOB, M2TS, AVI, ASF
Picture-Formats	BMP, JPEG, GIF, PNG
Audio-Formats	WAV, MP3, AAC, FLAC, M4A, MP2, DDAC3, AIFF

Tuner
Tuner type	Twin-Tuner
DVB-S tuner	2
Single Cable Solution (SatCR)	SCR1 = EN50494, SCR2 = EN50607
Satellite radio	Yes
Internet radio	Yes
Reception on	HD-TV, SD-TV
DVB-IP (multicast)	1
TECHNIROUTER ready	Yes
TECHNISELECT 12 ready	Yes

Tuner - Sat
Reception range	950 ... 2.150 MHz
Viterbi rates	1/2, 2/3, 3/4, 5/6, 7/8 , (auto)
DVB-S	QPSK
DVB-S	2 ... 45
DVB-S2	8PSK-QPSK
DVB-S2	10 ... 31
FEC	RS, LDPC, BCH
