TECHNIKABEL 100 CU Weiß
PLN 195.00*
TECHNIKABEL 100 CU
Double shielded RG-6 coaxial cable for DVB-T, DVB-S, DVB-C with a copper conductor.
PLN 195.00*
incl. VAT.
- Inner conductor made of copper
- Physically foamed, stable PE dielectric = very good damping and aging resistance!
- Braid made of aluminum

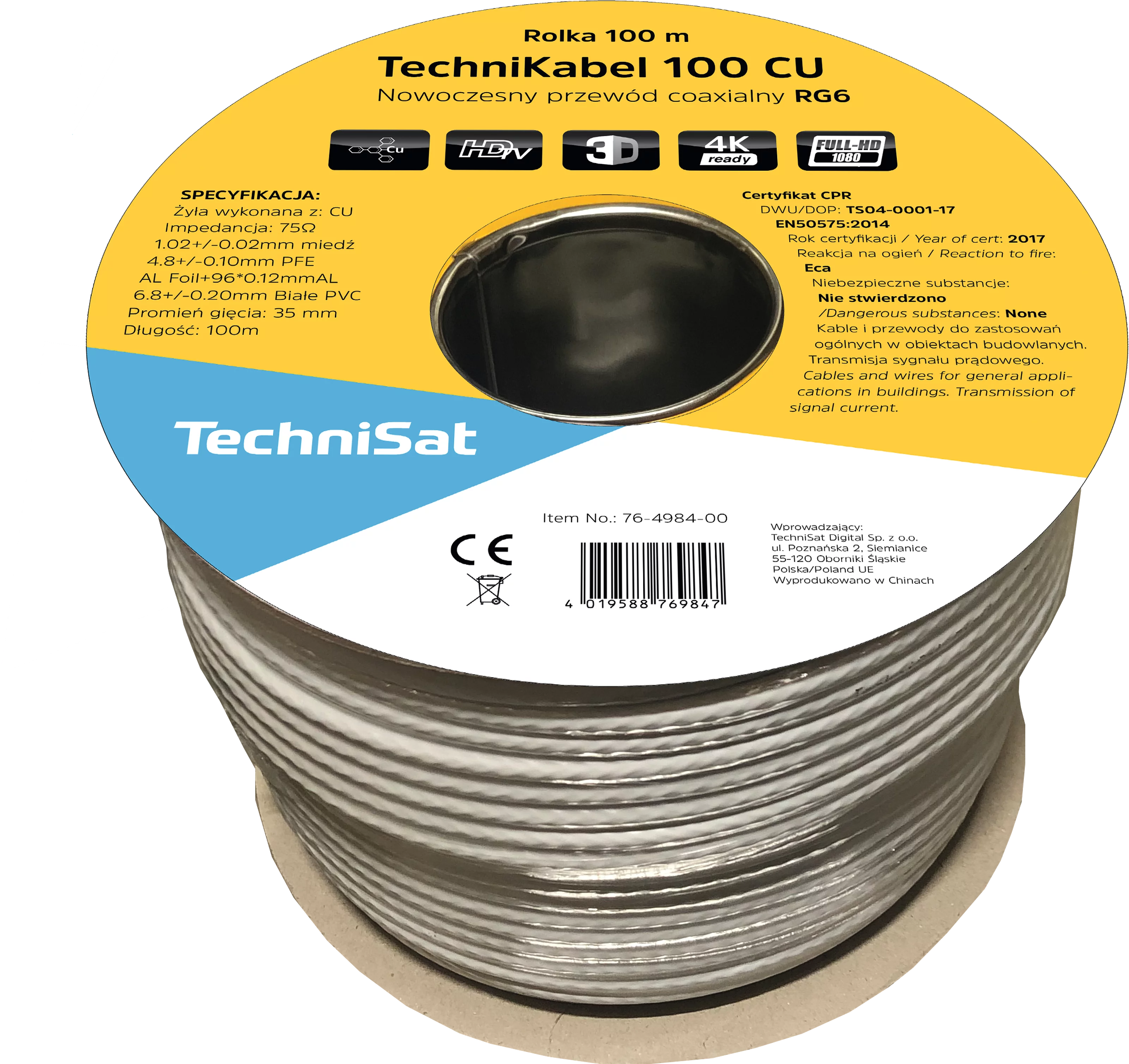

100m reel
Coaxial cable suitable for use in DVB-S, DVB-T and DVB-C networks. Copper conductor with a diameter of 1.02 mm. Dense aluminum braid and an additional laYer of aluminum foil provide effective insulation. The sheath diameter is 6.8 mm. Low bending radius of 35 mm, provides convenience during installation.
| Product Information | |
|---|---|
| EAN | 4019588769847 |
| Colour | Weiß |
| Item no. | 76-4984-00 |
| Attenuation | |
|---|---|
| 45 MHz | 5,2 |
| 100 MHz | 7,2 |
| 200 MHz | 10,2 |
| 450 MHz | 14,6 |
| 800 MHz | 20,1 |
| 1000 MHz | 21,5 |
| 1750 MHz | 28,8 |
| 2250 MHz | 33,5 |
| Technical data | |
|---|---|
| Frequency range | 5 ... 2.250 MHz |
| Impedance | 75 Ω (± 3) |
| Inner cable diameter | 102 mm (18AWG) |
| Inner cable material | Copper (OFC) |
| Isolation | Physically foamed PE |
| Diameter dielectric | 4,65 mm (± 0,1) |
| Outer cable | 1x aluminum foil + 1x aluminum braid |
| Sheath | PVC, withe |
| Diameter with coating | 6,8 mm (± 0,2) |
| Bending radius | ≥ 35 mm |
