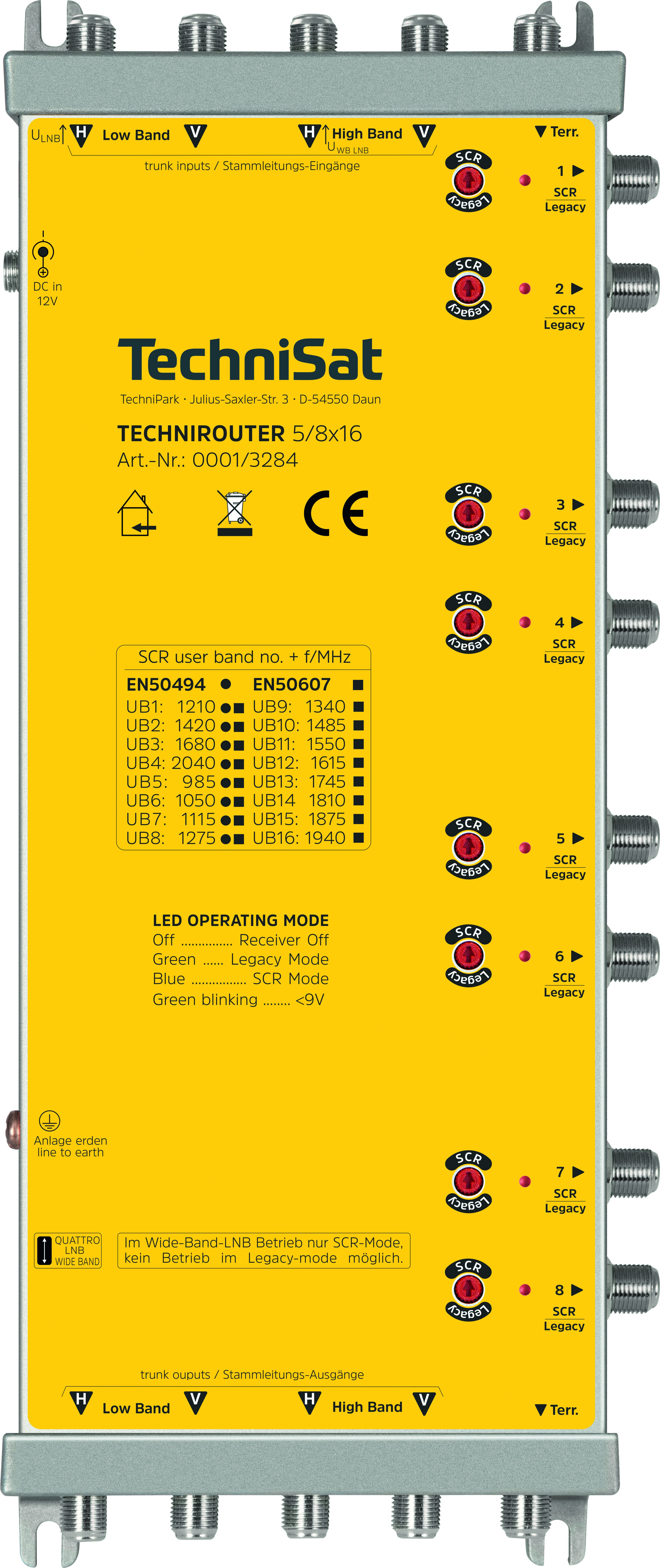

TECHNIROUTER 5/8X16 silver/yellow
PLN 1,920.00*
TECHNIROUTER 5/8X16
Distribution of 2 satellites to 8 times 16 participants
PLN 1,920.00*
incl. VAT.
TECHNIROUTER 5/8x16, Instruction manual, Power supply
With the TECHNIROUTER 5/8X16, you can build a single-cable converter distribution system and supply up to 128 subscribers with the complete television programs from up to two satellites (e.g., Astra 19.2°E and Eutelsat 13°E) as well as the terrestrial signal via a single cable. Existing cable infrastructure in residential buildings can be used without laying new cables. If more than 128 subscriber connections are required, additional TECHNIROUTER 5/8x16 units can be cascaded at the trunk line outputs. The system utilizes digital satellite channel router (SCR) technology according to EN50494/EN50607 and allows for the supply of receiving devices without any program restrictions. Multi-tuner devices (PVRs) can also be fully operated without the need to lay new antenna cables. Atmospheric attenuation losses, which lead to fluctuations in the received satellite signal level, are compensated for by the TECHNIROUTER 5/8x16 using a built-in automatic gain control (AGC).
Which LNB is required?
For operation with one orbital position, use Quattro LNBs; Quattro Switch LNBs are not suitable.
By using two WIDEBAND LNBs, two orbital positions can be distributed without restriction.
Use WIDEBAND LNBs with a LOF of 10.41 GHz.
How is the power supplied?
A 12V power adapter must be connected to the router to supply power to the LNBs!
Which LNB is required?
For operation with one orbital position, use Quattro LNBs; Quattro Switch LNBs are not suitable.
By using two WIDEBAND LNBs, two orbital positions can be distributed without restriction.
Use WIDEBAND LNBs with a LOF of 10.41 GHz.
How is the power supplied?
A 12V power adapter must be connected to the router to supply power to the LNBs!
| Product Information | |
|---|---|
| EAN | 4019588113848 |
| Colour | silver/yellow |
| Item no. | 0011/3284 |
| Weight (Box) | 996 g |
| Weight | 864 g |
| Device (W x H x D) | 12 x 4 x 28 cm |
| Box | 12,5 x 5 x 29,5 cm |
| Filter-Navigation | |
|---|---|
| Number participants | 128 |
| LNB control | |
|---|---|
| Current consumption | max. 500 mA |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 75 % |
| Ambient temperature | -25 ... 45 °C |
| Amplification | |
|---|---|
| Sat | 0 ... 30 dB AGC gesteuert |
| Terrestrial | -20 dB bezogen auf Eingang |
| Return path | -20 dB |
| Decoupling | |
|---|---|
| Trunks | ≥ 30 dB |
| General characteristics | |
|---|---|
| Top features | 128 participants on eight cables |
| Top features | SCR protocol according to EN 50494 & EN50607 |
| Top features | 2 orbit positions - for quattro or wideband LNB operation |
| Top features | Automatic gain control (AGC) |
| Top features | Switchable to legacy mode |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Mains adapter | external DC 12V/2,0A |
| Power consumption | max. 310 mA @13V, each SCR output |
| Reception range | |
|---|---|
| Terrestrial | 5 ... 790 MHz |
| Sat | 290 ... 2.340 MHz |
| Single-cable output | |
|---|---|
| Output frequency | 5 ... 2.150 MHz |
| Number of output channels | 8x 16 |
| Frequency of the output channels | 1210, 1420, 1680, 2040, 985, 1050, 1115, 1275, 1340, 1485, 1550, 1615, 1745, 1810, 1875, 1940 MHz |
| Frequency SAT | 950 ... 2.150 MHz |
| Frequency DVB-T | 5 ... 790 MHz |
| Output level | ≤ 90 typ. |
| Technical data | |
|---|---|
| Satellite inputs | 4 |
| Terrestrial input | 1 |
| Number of cable connections | 8 |
| Subscribers per cable | 16 |
| Transmission loss | |
|---|---|
| Sat | ≤ 6 dB |
| Terrestrial | ≤ 5 dB |
