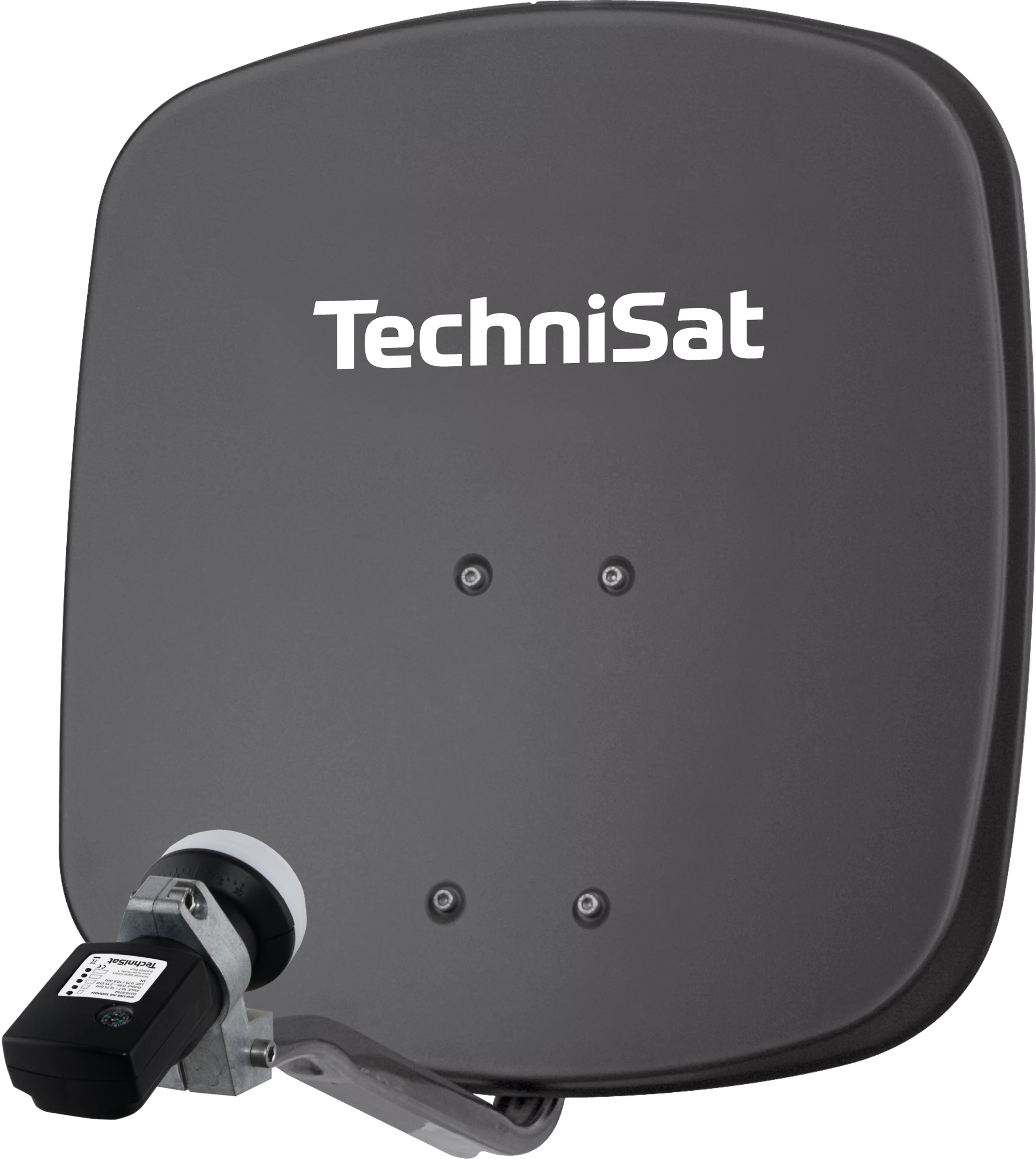

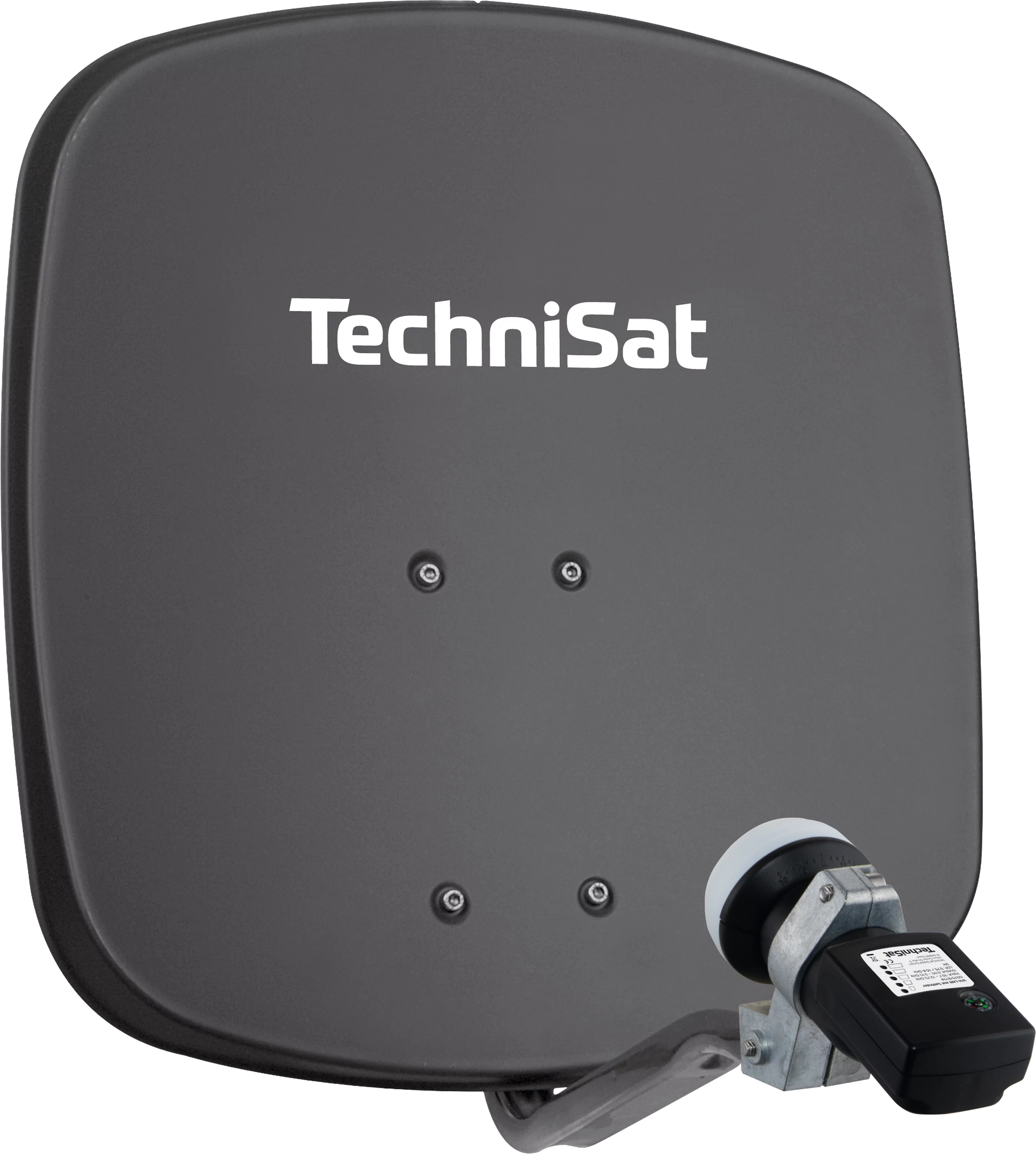

DIGIDISH 45 Satfinder V/H-LNB slate/grey
PLN 400.00*
High-performance aluminium offset dish antenna (45 cm)

The DigiDish 45 consists of high-quality aluminium and is powder-coated on both sides. The carefully calculated parabolic shape ensures that the reception performance of the DigiDish 45, which has a diameter of only 45 cm, is better than that of many 60 cm dishes - in spite of the much smaller size.

Simple installation
The DigiDish 45 is - just like the DigiDish 33 - ideal for mounting on balconies. The pre-assembled mounting bracket ensures installation of the dish is quick and easy.

Product Information
Colour slate grey
EAN 4019588341951
Item no. 1345/8195
Weight (Box) 3,5 kg
Weight 2,7 kg
Device (W x H x D) 45 x 48 cm
Box 51 x 51 x 23 cm
Filter-Navigation
Diameter 45 cm
Number participants 1
Number satellites 1
Features with LNB
Handling/comfort
SAT-Finder Yes
Noise factor
Lower frequency range 0,7 dB max.
Upper frequency range 0,7 dB max.
Noise figure typ. 0,9 dB
Output frequency range
Low band 950 - 1.950 MHz
High band 1.100 - 2.150 MHz
Input frequency range
Low band 10,7 ... 11,7 GHz
High band 11,7 ... 12,75 GHz
LNB control
Vertical 12 - 14,5 V
Horizontal 16 - 20 V
Band switch 22 kHz
Local oscillator
Low band 9,75 GHz
High band 10,6 GHz
Phase noise -75 @10kHz
Temperature drift ± 2,5 MHz
Accuracy ± 1 MHz
Technical data
Rated measurement 0,45 m
F/D 0,6
Gain 32,2 dBi @11,3 GHz
Offset angle 30 °
Feed reception 40 mm
Prepared for
Number of orbit positions 1
Number of clients 1
General characteristics
Material Aluminium
Material strength 1 mm
Coating Powder-coated on both sites
including Wall bracket Yes
Colour beige, polar white, slate-grey, brick-red
Power supply
LNB voltage supply 12 ... 20 V
Power consumption typ. 150 mA
