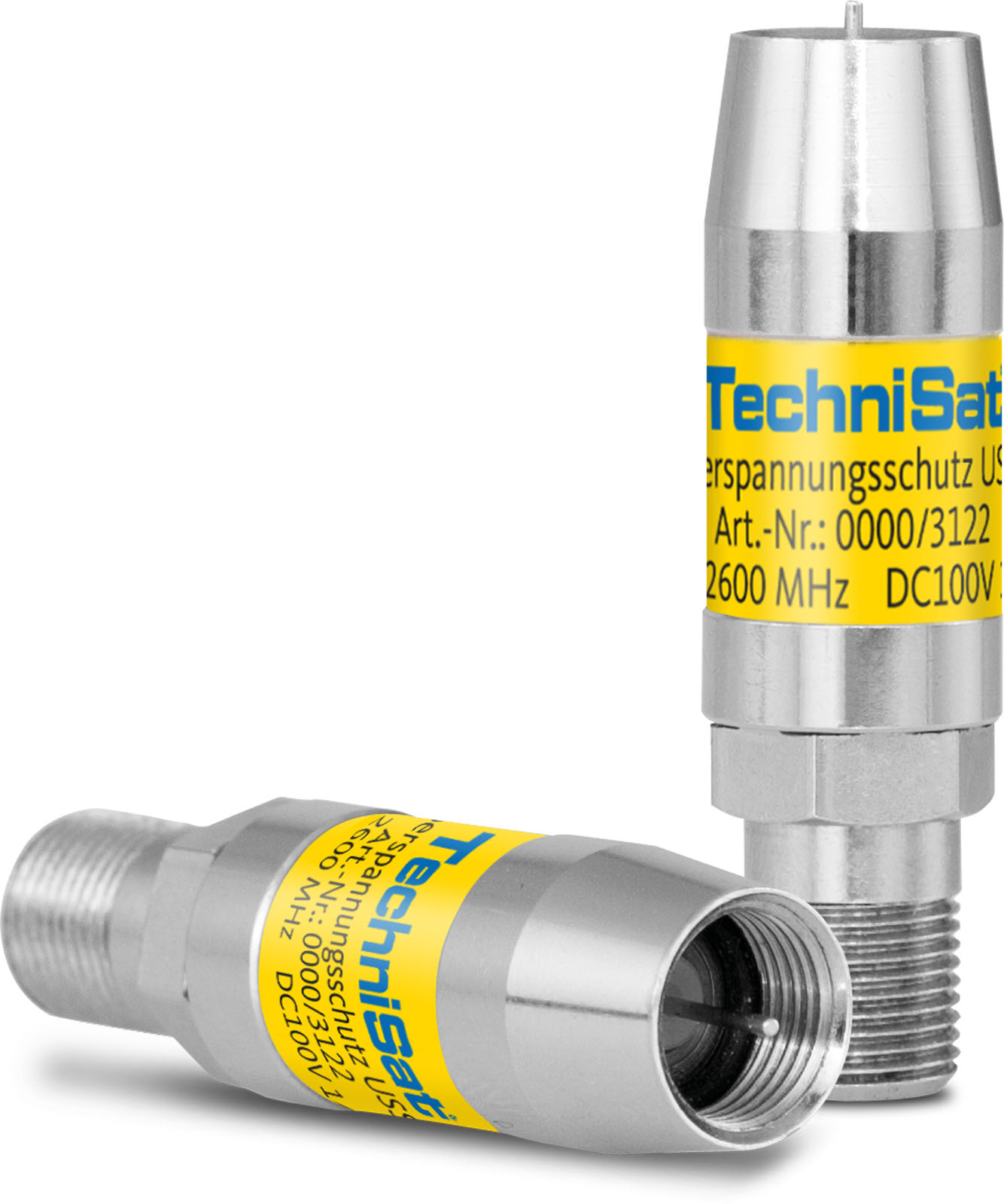

Surge protection USS1 silver/yellow
PLN 40.00*
Surge protection USS1
For the protection of all satellite reception equipment
PLN 40.00*
incl. VAT.
- Overvoltage protection according to IEC 61000-4-5 Class 4 (4KV)
- DC pass-through
- Protection for all satellite distribution systems
- Also suitable for satellite receivers, TVs, and cable modems with F-connector
- Waterproof to IP67 thanks to O-ring, suitable for outdoor use
1 x Surge Protector USS1
The USS1 coaxial surge arrester reliablY protects sensitive electrical equipment and electronic components in satellite TV signal reception and distribution sYstems from voltage surges that maY occur in the event of a nearbY lightning strike or as a result of static discharge.
In addition to equalizing lightning potentials, USS1 effectivelY protects electronic devices against surges of up to 4,000 volts. Installation is verY simple: in USS1 satellite distribution sYstems, simplY screw it to the inputs of the multiswitch devices that are to be protected (preferablY in combination with grounding brackets).
The USS1 can also be used as surge protection on the antenna inputs of satellite receivers or F-connected TVs and cable modems.
USS1 can be used in the frequencY range up to 2.6 GHz (e.g. in antenna, broadband, microwave, GPS, mobile communications and CATV sYstems).
In addition to equalizing lightning potentials, USS1 effectivelY protects electronic devices against surges of up to 4,000 volts. Installation is verY simple: in USS1 satellite distribution sYstems, simplY screw it to the inputs of the multiswitch devices that are to be protected (preferablY in combination with grounding brackets).
The USS1 can also be used as surge protection on the antenna inputs of satellite receivers or F-connected TVs and cable modems.
USS1 can be used in the frequencY range up to 2.6 GHz (e.g. in antenna, broadband, microwave, GPS, mobile communications and CATV sYstems).
| Product Information | |
|---|---|
| Colour | silver/yellow |
| EAN | 4019588031227 |
| Item no. | 0000/3122 |
| Weight (Box) | 38 g |
| Weight | 20 g |
| Device (W x H x D) | 1,4 x 4,5 x 1 cm |
| Box | 5 x 8 x 6 cm |
| Ambient operating conditions | |
|---|---|
| IP class | 67 |
| Temperature | -25 ... 55 °C |
| Humidity | 5 ... 99 % |
| Operating altitude | 2.000 m ü.NN |
| DC outlet | |
|---|---|
| SAT | 100 V / 1 A |
| Technical data | |
|---|---|
| Frequency range | 5 ... 2.600 MHz |
| Transmission loss | < 0,5 dB |
| Shielding factor | > 100 dB ≙ EN 50083-2 (Klasse A+) |
| Connector type | F female/F male |
| Impedance | 75 Ω |
