VIOTENNE 55 with V/H-LNB grey
PLN 9,999,999.00*
VIOTENNE 55 with V/H-LNB
Viotenne 55
PLN 9,999,999.00*
incl. VAT.
Outdoor unit for satelliteLNBScrewsToolsWall mountManual

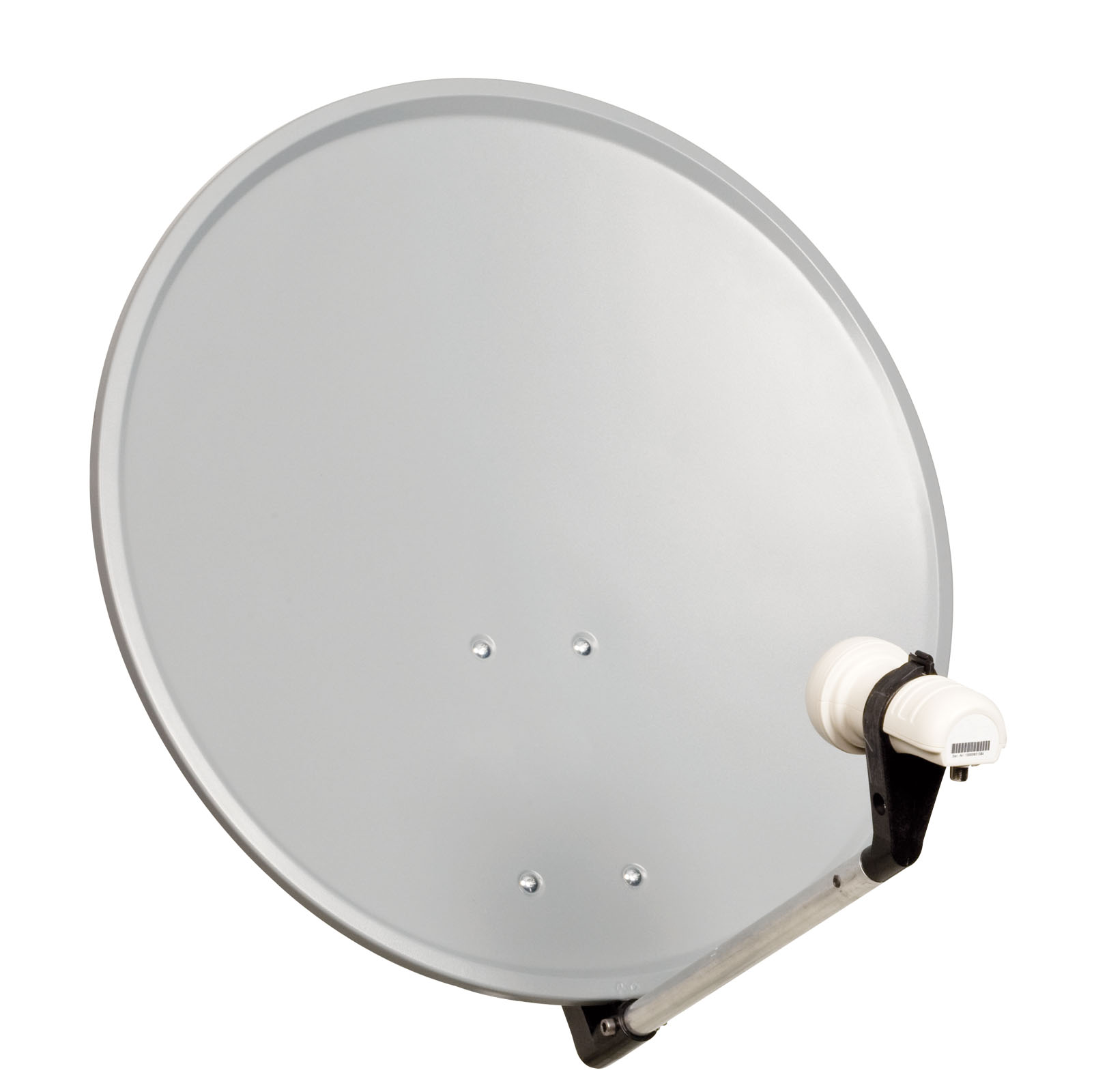

The VIOTENNE 55 is a satellite dish with a diameter of 55 cm, powder coated, with either a single LNB for the reception with a device, or TWIN LNB to receive two units. The dish is already largely pre-assembled with a few screws and the system is ready for use. This saves time and money.
| Product Information | |
|---|---|
| EAN | 4047292720564 |
| Item no. | 77-2056-00 |
| Colour | grey |
| Device (W x H x D) | 55 x 55 cm |
| Box | 59 x 61 x 14 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| General characteristics | |
|---|---|
| Material | Stahl |
| Material strength | 0,5 mm |
| Coating | Powder-coated on both sites |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Technical data | |
|---|---|
| Rated measurement | 0,55 m |
| F/D | 0,6 |
| Offset angle | 20 ° |
| Gain | 32 dBi @11,3GHz |
| Feed reception | 40 mm |
