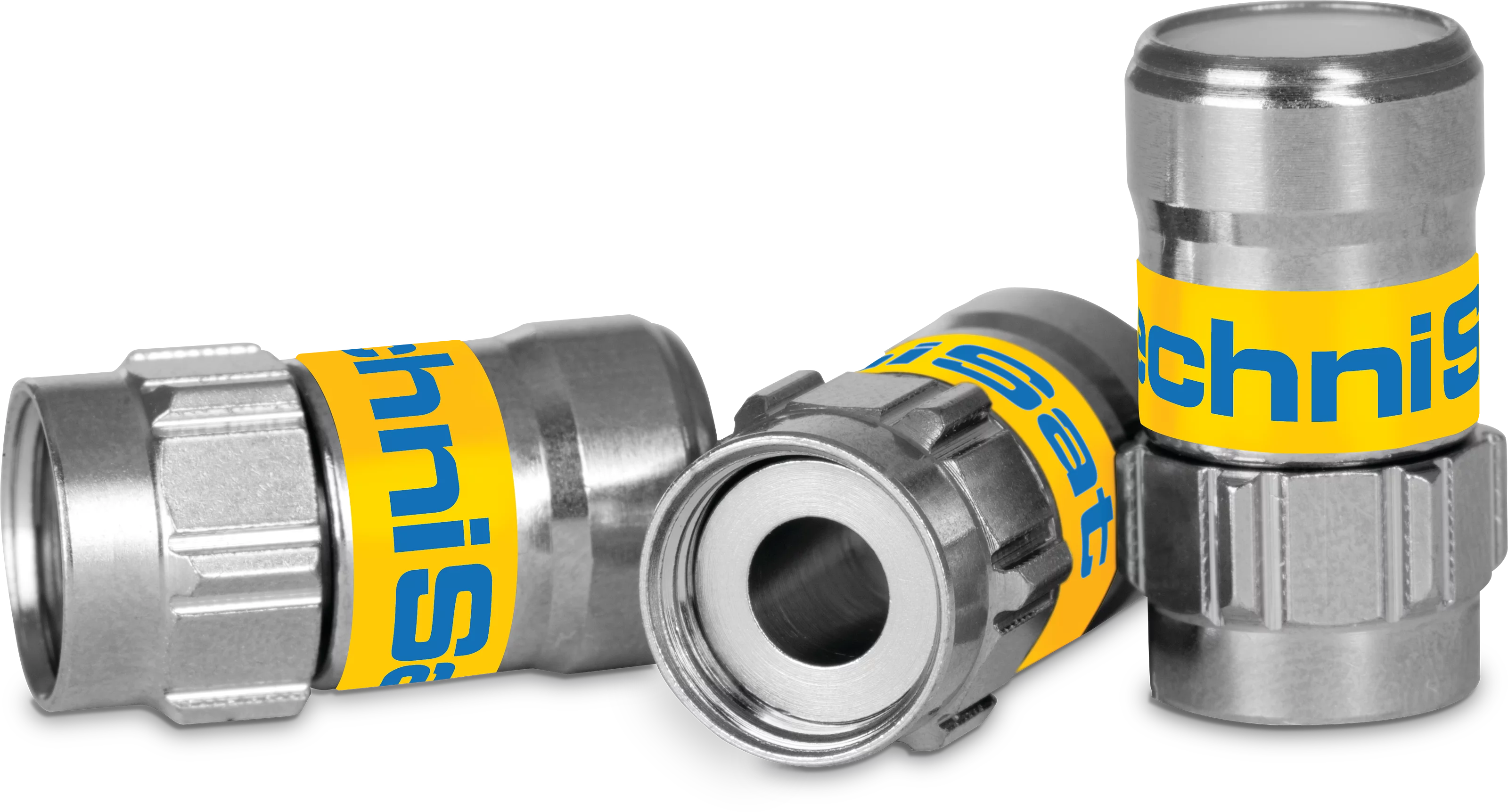

F plug Self-Install™ 4.9, 100 pcs. silver
PLN 304.00*
F plug Self-Install™ 4.9, 100 pcs.
4.9 Professional F male connector for tool-free assembly
PLN 304.00*
incl. VAT.
- F-connector for tool-free installation
- Easy and secure installation in seconds
- Operable up to 3 GHz.
- Suitable for COAXSAT 140-4.6 and COAXSAT 120-4.6 from TechniSat.
- geeignet für alle RG6-Koaxialkabel 1.0/4.6
- Suitable for all coaxial cables with approx. 4.5 mm dielectric and 6.6 - 7.0 mm outer diameter
Pack: 100 piece
Professional installation for home - in seconds.
| Product Information | |
|---|---|
| EAN | 4019588133723 |
| Colour | silver |
| Item no. | 0100/3372 |
| Attenuation | |
|---|---|
| 10 MHz | 0,01 |
| 100 MHz | 0,01 |
| 450 MHz | 0,02 |
| 862 MHz | 0,04 |
| 1000 MHz | 0,06 |
| 2250 MHz | 0,06 |
| Return loss | |
|---|---|
| 30 - 65 MHz | ≥ 38 dB |
| 65 - 470 MHz | ≥ 38 dB |
| 470 - 1800 MHz | ≥ 26 dB |
| 1800 - 2450MHz | ≥ 26 dB |
| Shielding | |
|---|---|
| 30 - 1000 MHz | > 120 dB CoMeT |
| 1000 - 2250 MHz | > 110 dB CoMeT |
| Technical data | |
|---|---|
| Impedance | 75 Ω |
| Transfer impedance | |
|---|---|
| 5MHz | < 4 CoMeT |
| 30 MHz | < 4 CoMeT |
