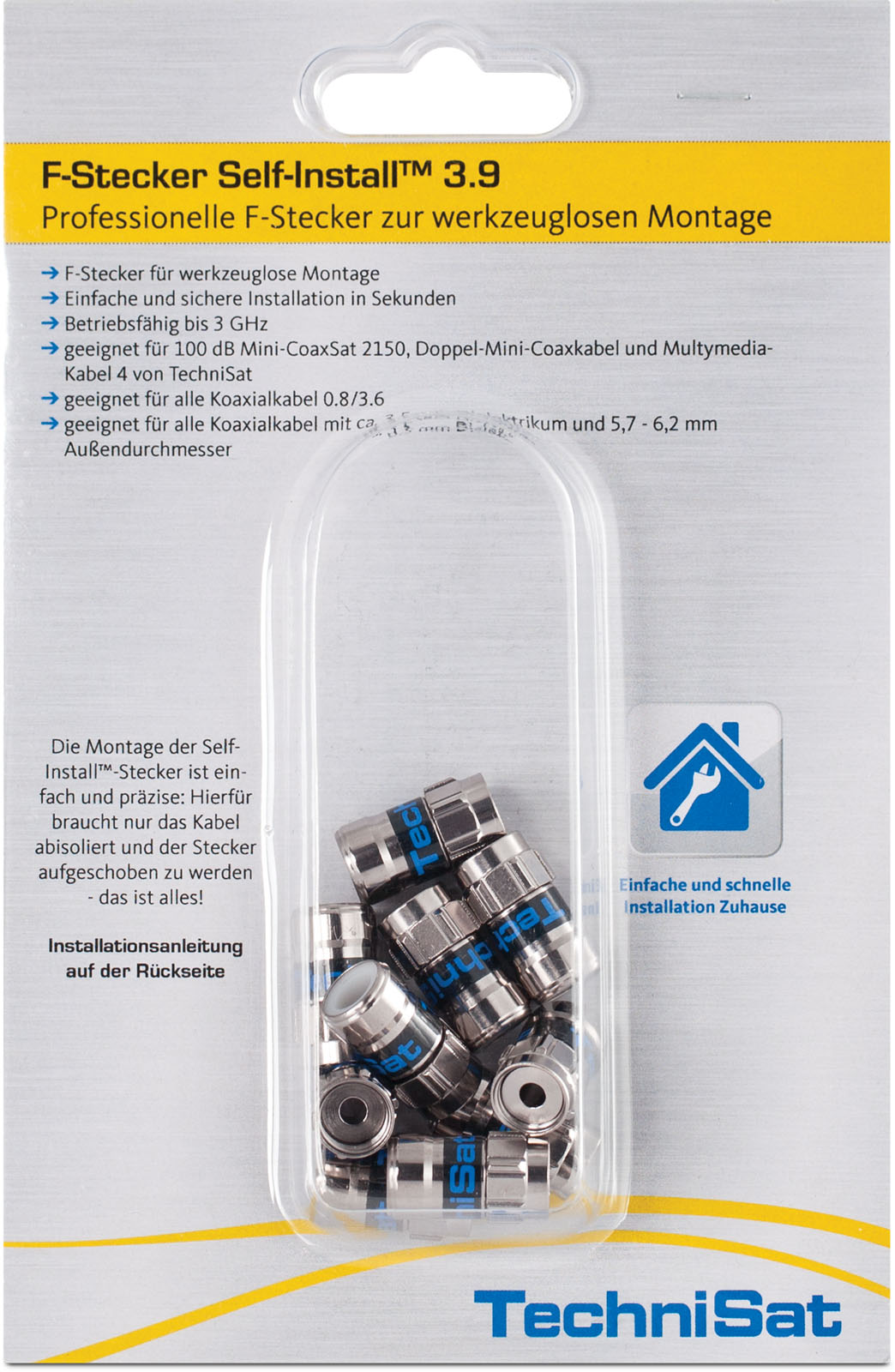

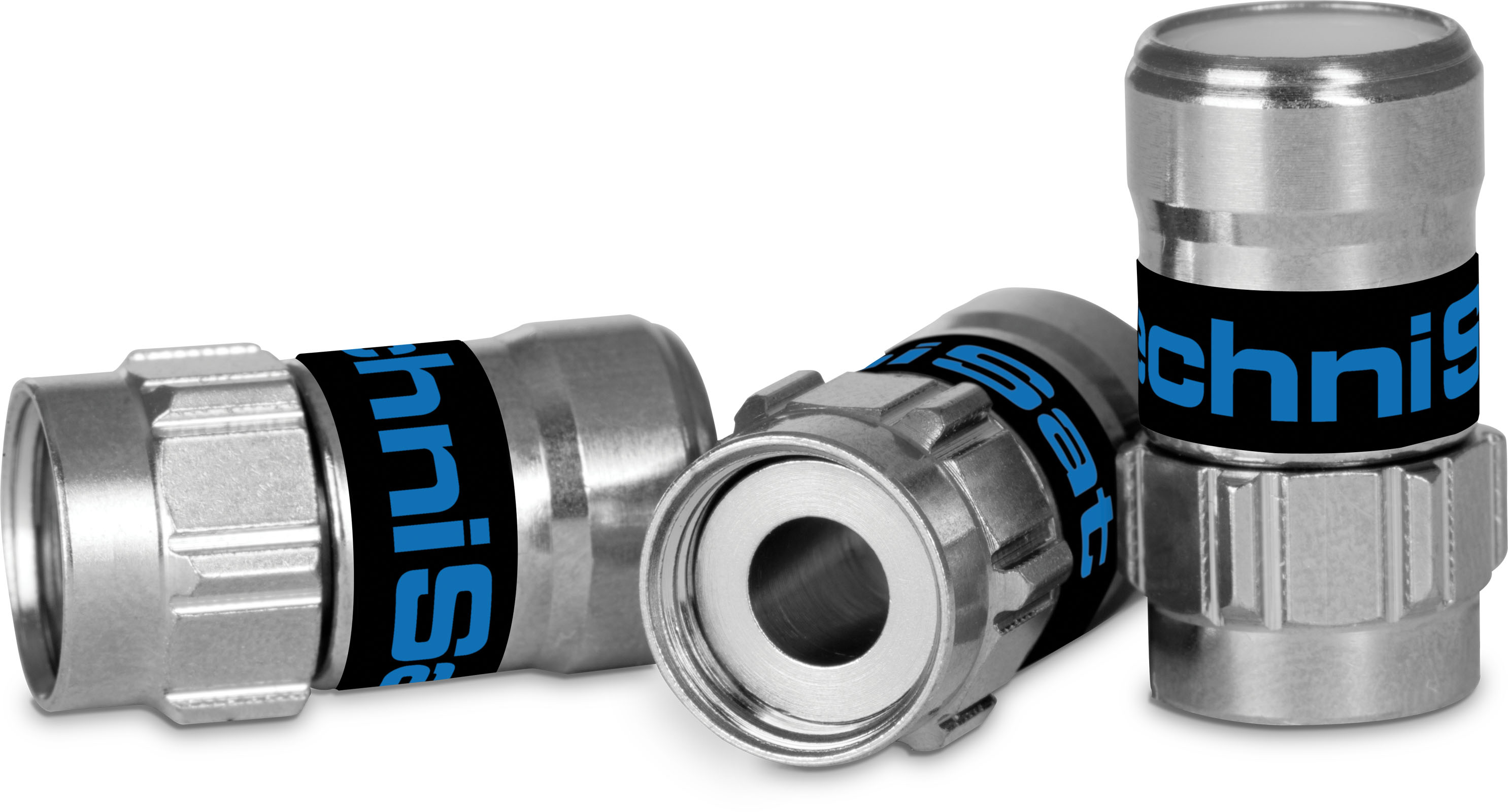

F plug Self-Install™ 3.9, 10 pcs. blister silver
PLN 48.00*
F plug Self-Install™ 3.9, 10 pcs. blister
3.9 Professional F male connector for tool-free assembly
PLN 48.00*
incl. VAT.
- Professional 3.9 F-connector for tool-free installation
- The F self-install connector is a unique quality product developed, among other things, to replace the low-quality screw-on connectors often used in DIY installations
- Installation is easier and more precise than ever: simply strip the cable and slide on the connector – that’s all
- Perfectly suited for TechniSat coaxial cables: COAXSAT 115 cable
- Scope of delivery: 10 x F connectors self-install 3.9 in blister pack
Pack:10 piece
Professional installation for home - in seconds.
| Product Information | |
|---|---|
| EAN | 4019588133716 |
| Item no. | 0010/3371 |
| Colour | silver |
| Weight (Box) | 100 g |
| Weight | 100 g |
| Box | 12 x 18,5 x 2 cm |
| Attenuation | |
|---|---|
| 10 MHz | 0,1 |
| 100 MHz | 0,01 |
| 450 MHz | 0,01 |
| 862 MHz | 0,01 |
| 1000 MHz | 0,01 |
| 2250 MHz | 0,01 |
| Return loss | |
|---|---|
| 30 - 65 MHz | ≥ 38 dB |
| 65 - 470 MHz | ≥ 38 dB |
| 470 - 1800 MHz | ≥ 38 dB |
| 1800 - 2450MHz | ≥ 36 dB |
| Shielding | |
|---|---|
| 30 - 1000 MHz | > 110 dB CoMeT |
| 1000 - 2250 MHz | > 110 dB CoMeT |
| Technical data | |
|---|---|
| Impedance | 75 Ω |
| Transfer impedance | |
|---|---|
| 5MHz | < 0,9 CoMeT |
| 30 MHz | < 0,9 CoMeT |
