100 dB MINI-COAXSAT 2150, 100 m ring

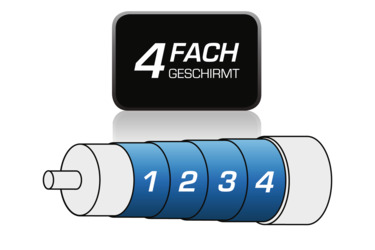

High-end 4-way shielded thin coaxial cable, 100 dB screening

Colour white

PLN 240.00*

incl. VAT.

Content: 100 metre (PLN 2.40 / 1 metre)

This product is manufactured in Germany and represents the highest quality standards. Precise workmanship and strict controls ensure long-lasting reliability.

The TechniSat Mini-CoaxSat high-frequency cable is suitable for use in the Sat-field and in the BK-field.
Because of its small diameter of 5.4 mm it is particularly suitable for laying in narrow conduits.
The high shielding makes it secure against radio interference of all kinds.

Technical Datasheet ( HTML / PDF )

html

Product Information
EAN	4019588130111
Colour	white
Item no.	0001/3011
Weight (Box)	3,8 kg
Weight	3,8 kg
Box	340 x 100 x 340 mm

Attenuation
5 MHz	2,45
10 MHz	3,34
25 MHz	5,05
45 MHz	6,57
65 MHz	7,75
100 MHz	7,2
200 MHz	11,8
450 MHz	17,8
800 MHz	24,6
1000 MHz	28,7
1350 MHz	33,2
1750 MHz	38,6
2050 MHz	42,9

Return loss
5 - 30 MHz	≥ 21 dB
30 - 65 MHz	≥ 33 dB
65 - 470 MHz	≥ 27 dB
470 - 1800 MHz	≥ 26 dB
1800 - 2450MHz	≥ 26 dB

Shielding
30 - 470 MHz	≥ 115 dB
470 - 1800 MHz	≥ 110 dB
1800 - 2450 MHz	≥ 110 dB

Technical data
Impedance	75 Ω (± 3)
Inner cable diameter	0,8 mm
Inner cable material	Cu blank
Isolation	Zell-PE
Diameter dielectric	3,6 mm (± 0,1)
Outer cable	1 x Alu-Folie doppelt kaschiert und geklebt, 2 x Cu-Geflecht Sn 16 x 3 x 0.13 mm, 1 x Alu-Folie doppelt kaschiert
Sheath	PVC, weiß
Diameter with coating	5,6 mm (± 0,2)
Bending radius	≥ 50 mm
Coupling resistance	≤ 0,5 @ 5 MHz
Capacity	55 pF
Shrinkage factor	0,85

Transfer impedance
5MHz	≤ 0,5
30 MHz	≤ 0,05
