IEC angular antenna cable; 3 m, white Weiß
PLN 25.00*
IEC angular antenna cable; 3 m, white

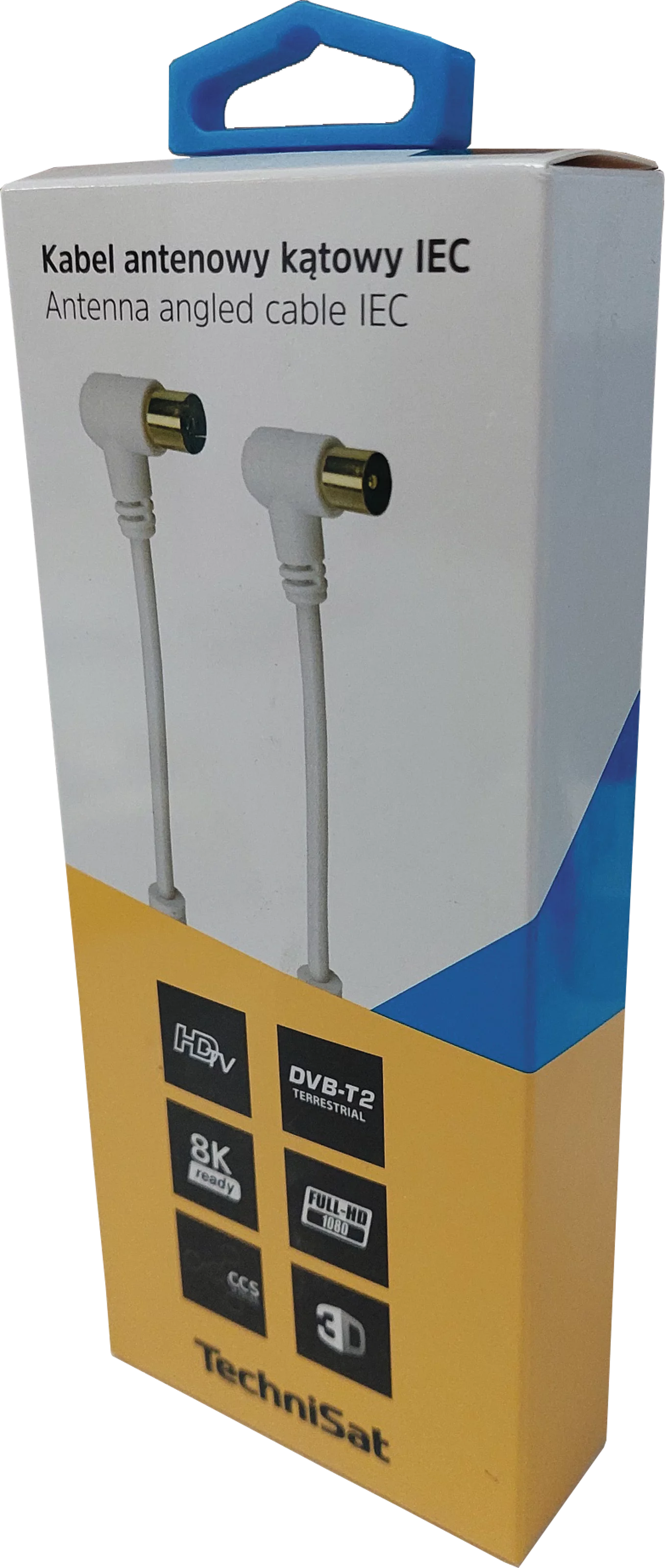

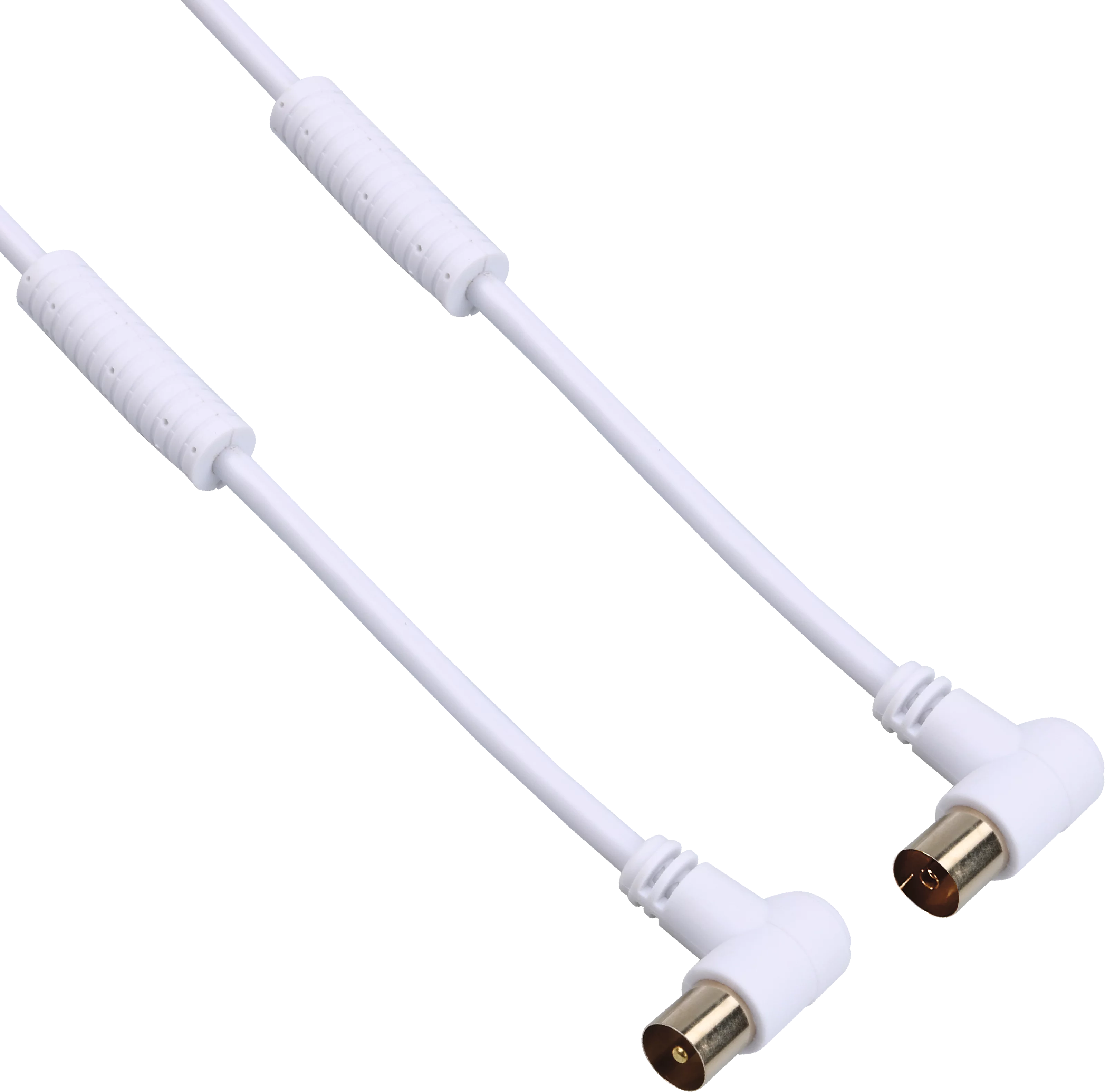

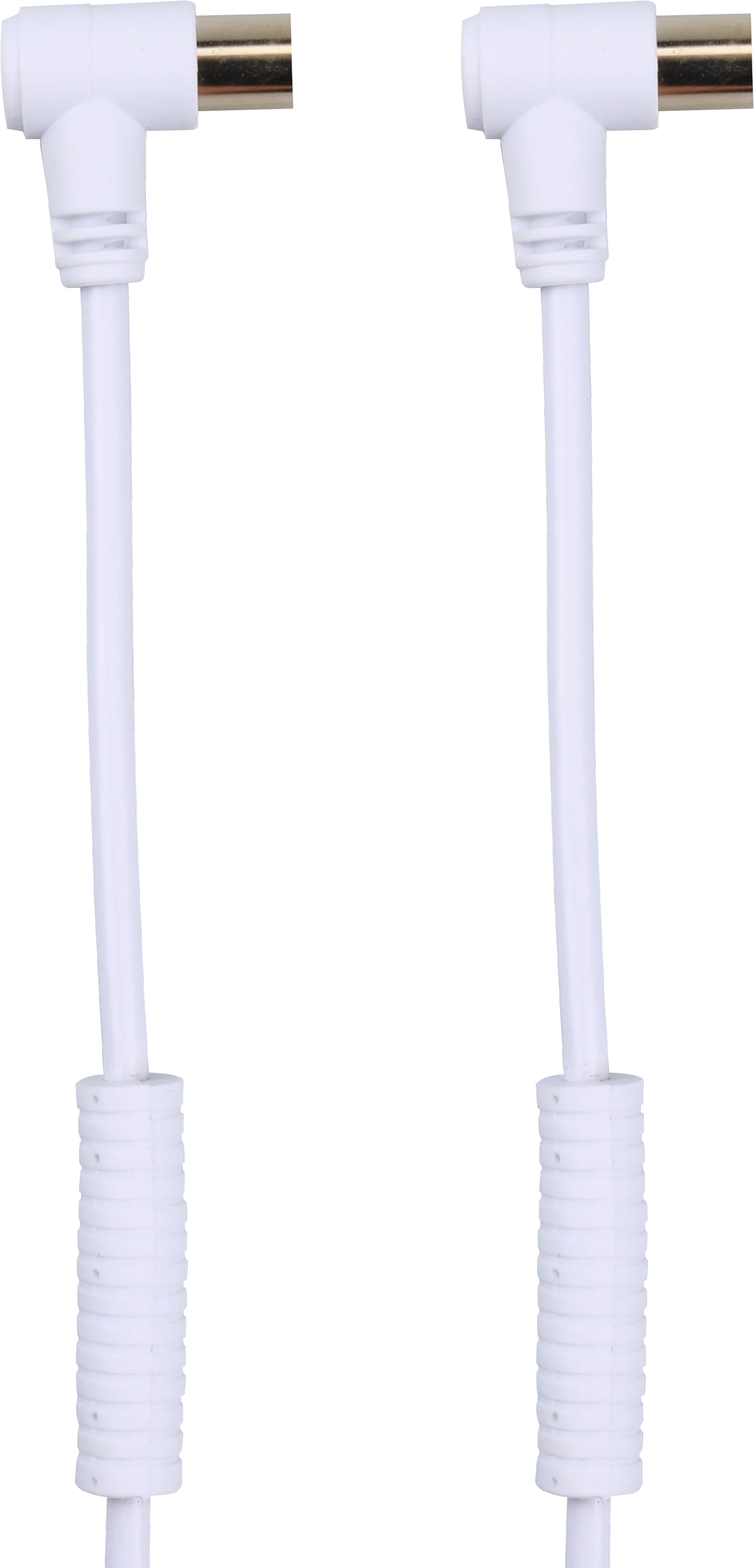

Antenna cable terminated with male and female angular IEC connectors, packed in blister
PLN 25.00*
incl. VAT.
Content:
3 metr
(PLN 8.33 / 1 metr)
- Inner copper conductor (CCS)
- Braid made of aluminum
Antenna cable terminated with male and female angular IEC connectors, packed in blister
Antenna cable terminated with male and female angled TV connectors. It allows you to connect a TV set or DVB-T / DVB-T2 set-top box with an RTV socket. The cable has an anti-interference ferrite filter. Ready solution that does not require the assembly of plugs.
| Product Information | |
|---|---|
| EAN | 4019588763234 |
| Colour | weiß |
| Item no. | 76-4832-03 |
| Attenuation | |
|---|---|
| 45 MHz | 8,2 |
| 100 MHz | 9,5 |
| 200 MHz | 10,8 |
| 450 MHz | 14,8 |
| 800 MHz | 20,1 |
| 1000 MHz | 21,5 |
| 1750 MHz | 29 |
| 2250 MHz | 33,5 |
| Technical data | |
|---|---|
| Frequency range | 5 ... 2.250 MHz |
| Impedance | 75 Ω (± 3) |
| Inner cable diameter | 102 mm (18AWG) |
| Inner cable material | CCS (OFC) |
| Isolation | Physically foamed PE |
| Diameter dielectric | 4,65 mm (± 0,1) |
| Outer cable | 1x aluminum foil + 1x aluminum braid |
| Sheath | PVC, white |
| Diameter with coating | 6,8 mm (± 0,2) |
| Bending radius | ≥ 35 mm |
