8-way splitter, diode decoupled silver
PRODUCT NO LONGER AVAILABLE

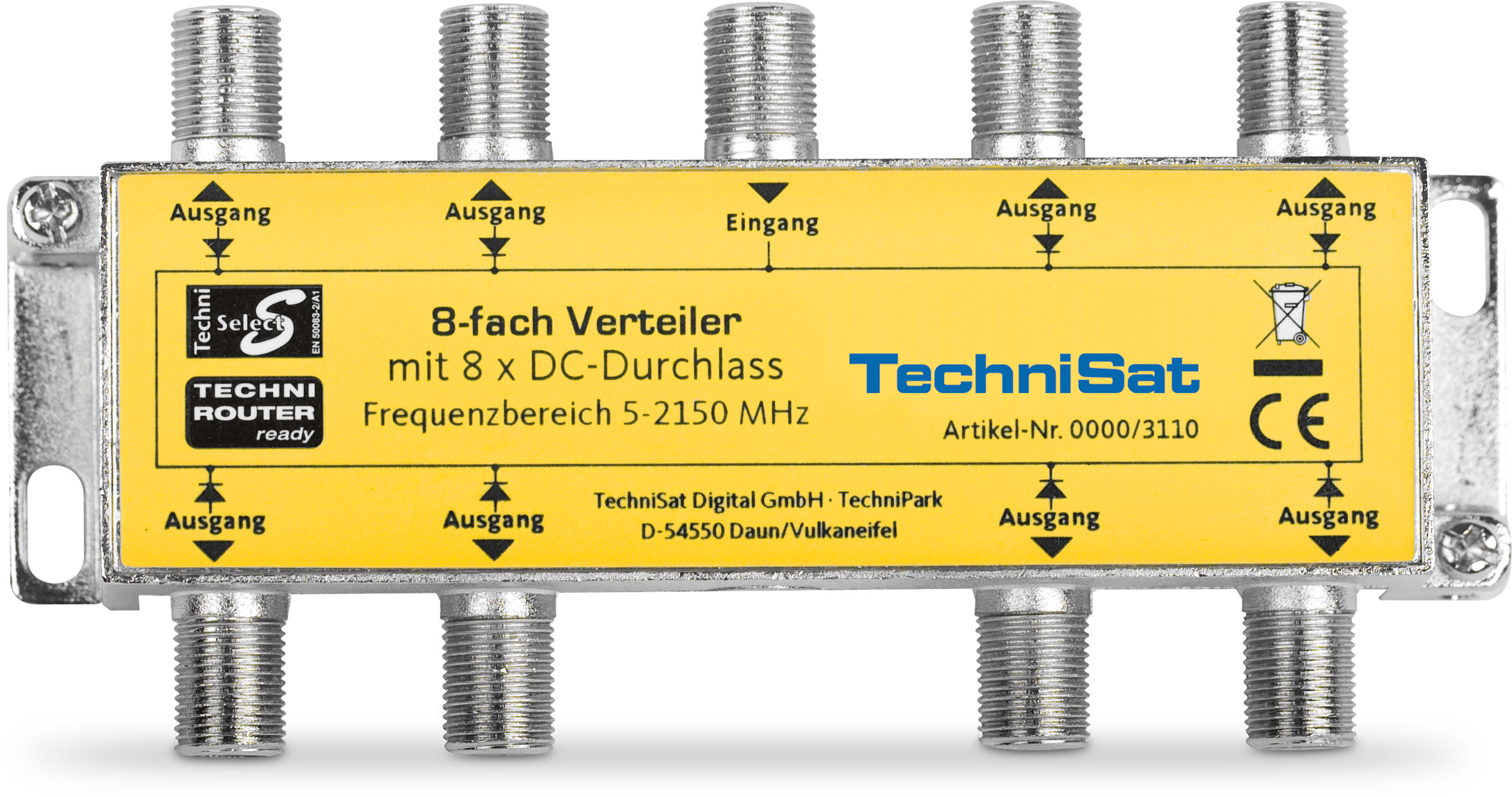

8-way splitter, diode decoupled
(0000/3110)
for the 8-fold distribution of Sat signals
| Product Information | |
|---|---|
| EAN | 4019588031104 |
| Colour | silver |
| Item no. | 0000/3110 |
| Weight (Box) | 130 g |
| Weight | 130 g |
| Device (W x H x D) | 12,2 x 2,9 x 4,4 cm |
| Box | 13 x 5,7 x 21,2 cm |
| Decoupling | |
|---|---|
| 5 - 862 MHz | Typ. 22 dB |
| 950 - 1750 MHz | Typ. 22 dB |
| 1750 - 2150 MHz | Typ. 21 dB |
| General characteristics | |
|---|---|
| Top features | DC power pass |
| Top features | diode decoupled |
| Top features | DiSEqC-compatible |
| Top features | TECHNIROUTER-compatible |
| Return loss | |
|---|---|
| 5 - 862 MHz | Typ. 9 dB |
| 950 - 1750 MHz | Typ. 13 dB |
| 1750 - 2150 MHz | Typ. 11 dB |
| Technical data | |
|---|---|
| Input | 1 |
| Outputs | 8 |
| Frequency range | 5 ... 2.150 MHz |
| Shielding factor | ≥ 75 dB EN 50083-2 (Class A) |
| Connector type | F female |
| Impedance | 75 Ω |
| Transmission loss | |
|---|---|
| 5 - 862 MHz | Typ. 12 dB (± 1) |
| 950 - 1750 MHz | Typ. 15 dB (± 1) |
| 1750 - 2150 MHz | Typ. 18 dB (± 1) |
