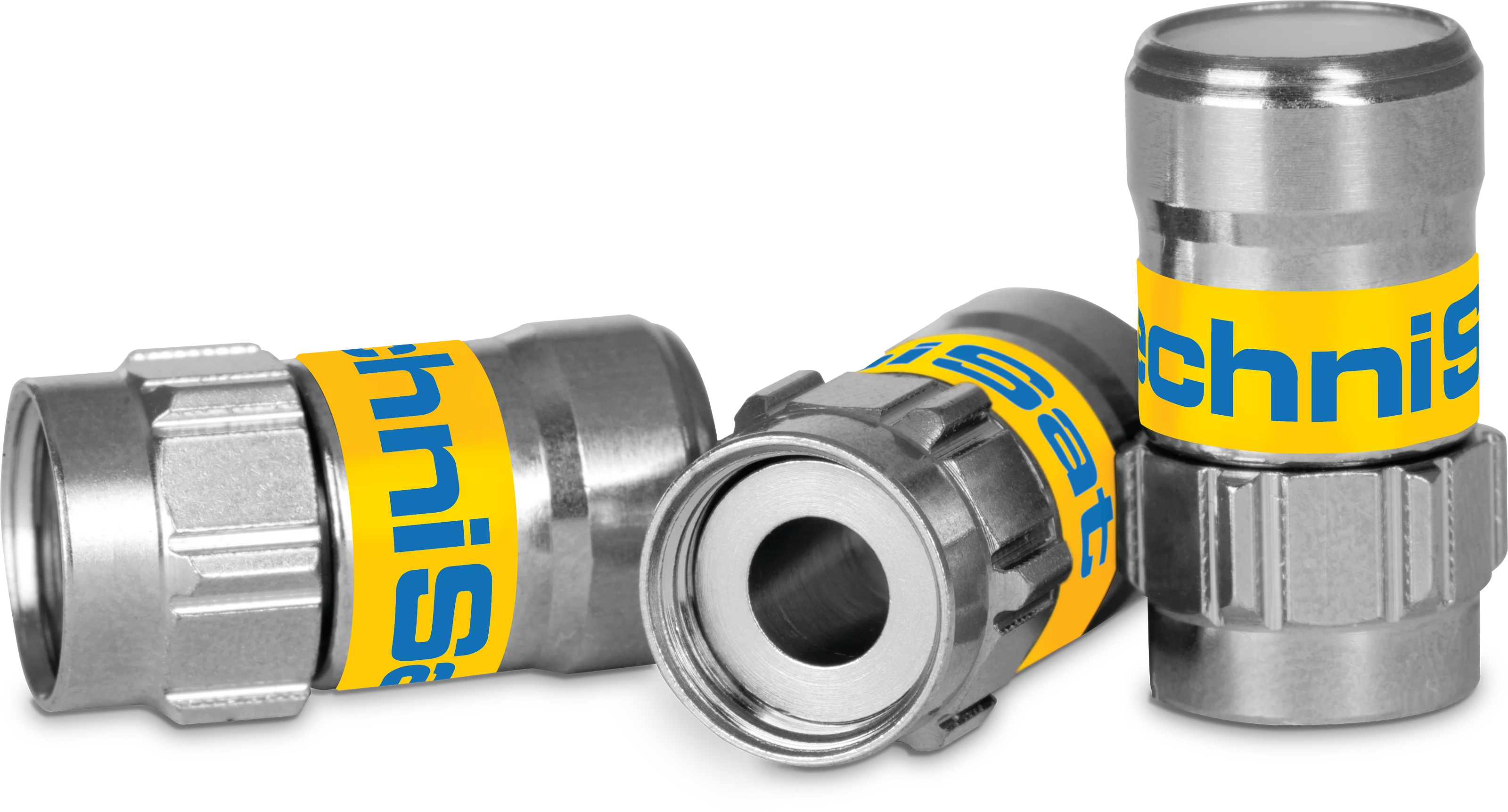

F plug Self-Install™ pack 4.9
4.9 Professional F male connector for tool-free assembly
| Colour |
EAN |
Item no. |
Device (W x H x D) |
Box |
| silver |
4019588103726 |
0010/3372 |
1 x 1 x 1 cm |
1 x 1 x 1 cm |
| silver |
4019588103726 |
0010/3372 |
1 x 1 x 1 cm |
1 x 1 x 1 cm |
| Top Features |
- Professional 4.9 F-connector for tool-free installation, suitable for all coaxial cables with approx. 4.5 mm dielectric and 6.6–7.0 mm outer diameter
- The F self-install connector is a unique quality product developed, among other things, to replace the often lower-quality screw-on connectors used in DIY installations.
- Installation is simple and precise: Strip the cable and push on the connector – that’s all.
- Perfectly suitable for TechniSat coaxial cables: COAXSAT 140-4.6 and COAXSAT 120-4.6.
|
| Attenuation |
| 10 MHz: 0,01 |
| 100 MHz: 0,01 |
| 450 MHz: 0,02 |
| 862 MHz: 0,04 |
| 1000 MHz: 0,06 |
| 2250 MHz: 0,06 |
| Return loss |
| 30 - 65 MHz: ≥ 38 dB |
| 65 - 470 MHz: ≥ 38 dB |
| 470 - 1800 MHz: ≥ 26 dB |
| 1800 - 2450MHz: ≥ 26 dB |
| Shielding |
| 30 - 1000 MHz: > 120 dB CoMeT |
| 1000 - 2250 MHz: > 110 dB CoMeT |
| Technical data |
| Impedance: 75 Ω |
| Transfer impedance |
| 5MHz: < 4 CoMeT |
| 30 MHz: < 4 CoMeT |
| Scope of Delivery |
| Pack: 10 piece |
