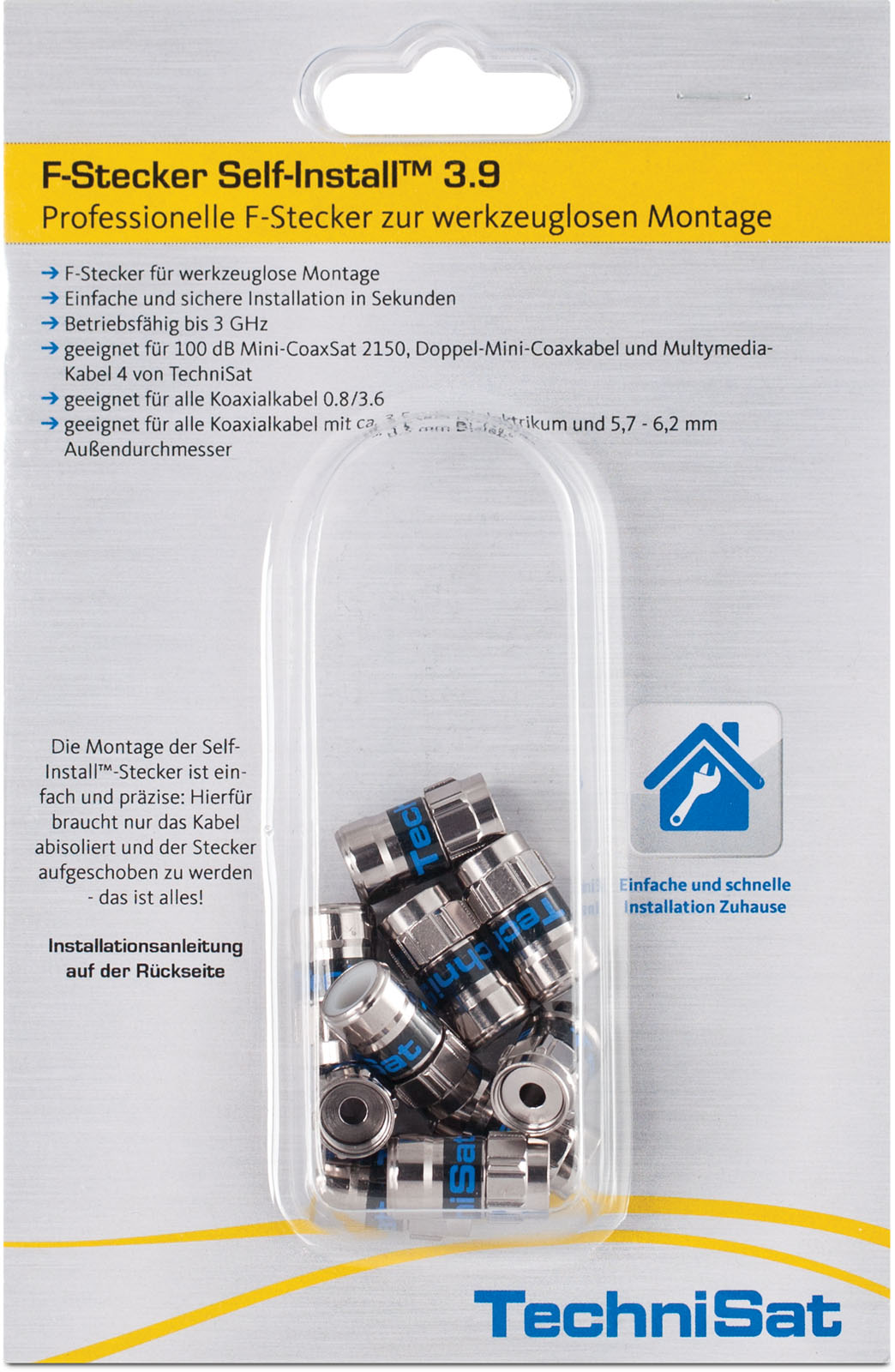

F plug Self-Install™ pack 3.9
3.9 Professional F male connector for tool-free assembly
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Box |
| silver |
4019588133716 |
0010/3371 |
100 g |
100 g |
12 x 18,5 x 2 cm |
| Top Features |
- Professional 3.9 F-connector for tool-free installation
- The F self-install connector is a unique quality product developed, among other things, to replace the low-quality screw-on connectors often used in DIY installations
- Installation is easier and more precise than ever: simply strip the cable and slide on the connector – that’s all
- Perfectly suited for TechniSat coaxial cables: COAXSAT 115 cable
|
| Attenuation |
| 10 MHz: 0,1 |
| 100 MHz: 0,01 |
| 450 MHz: 0,01 |
| 862 MHz: 0,01 |
| 1000 MHz: 0,01 |
| 2250 MHz: 0,01 |
| Return loss |
| 30 - 65 MHz: ≥ 38 dB |
| 65 - 470 MHz: ≥ 38 dB |
| 470 - 1800 MHz: ≥ 38 dB |
| 1800 - 2450MHz: ≥ 36 dB |
| Shielding |
| 30 - 1000 MHz: > 110 dB CoMeT |
| 1000 - 2250 MHz: > 110 dB CoMeT |
| Technical data |
| Impedance: 75 Ω |
| Transfer impedance |
| 5MHz: < 0,9 CoMeT |
| 30 MHz: < 0,9 CoMeT |
| Scope of Delivery |
| Pack:10 piece |
