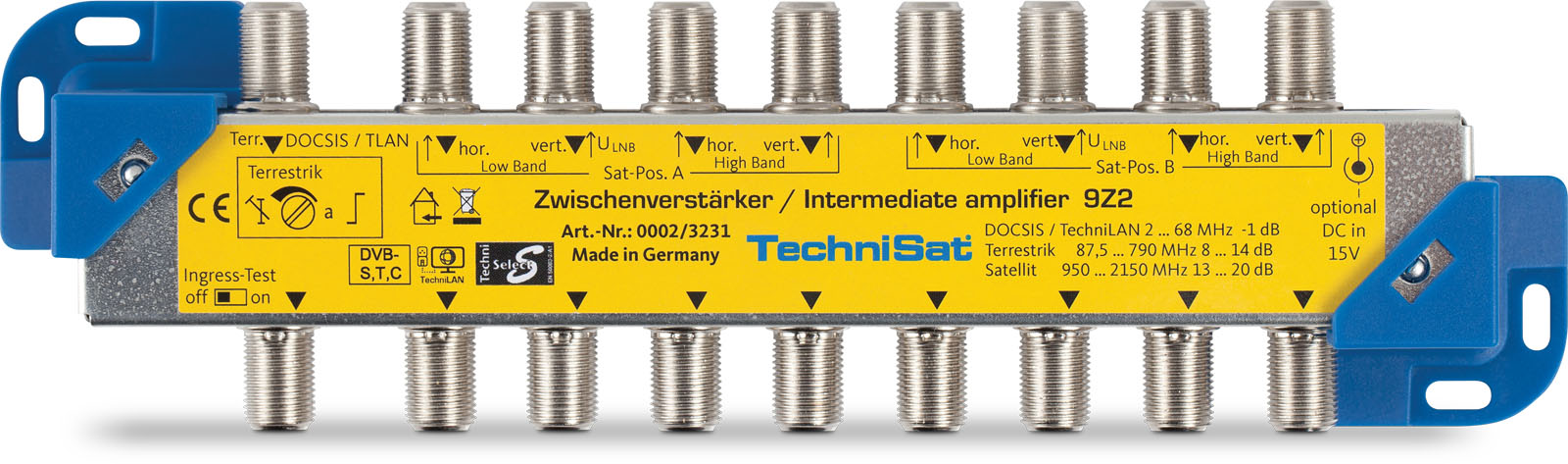

Line Amplifier 9Z2
Amplifier for signal gain for 2 orbital positions
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588232310 |
silver/yellow |
0002/3231 |
280 g |
190 g |
20,8 x 5,5 x 3,2 cm |
25,2 x 7,4 x 4,7 cm |
| LNB control |
| Current consumption: max. 850 mA |
| Ambient operating conditions |
| Ambient temperature: -25 ... 55 °C |
| Amplification |
| Sat: 15 ... 20 dB fest, schräglagenentzerrt |
| Terrestrial: 7 ... 14 dB einstellbar |
| Return path: -1 dB |
| General characteristics |
| Top features: Kompensiert die Dämpfung von bis zu 60 m Koaxkabel |
| Top features: Rückkanaltauglich von 2...68 MHz |
| Top features: Optionale Stromversorgung über Steckernetzteil |
| Top features: Gleiches Rastermass der F-Buchsen wie GigaSwitch 9/8 und TechniRouter 9/8 |
| Power consumption |
| In operation: 5,5 W |
| Power supply |
| Nominal voltage: 15 V DC |
| Mains adapter: external (Optional) |
| Power consumption: typ. 340 mA @15 V |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 87 ... 790 MHz |
| Return path: 2 ... 68 MHz |
| Technical data |
| Satellite inputs: 8 |
| Terrestrial input: 1 |
| Scope of Delivery |
| Line Amplifier 9Z2, instruction manual |
