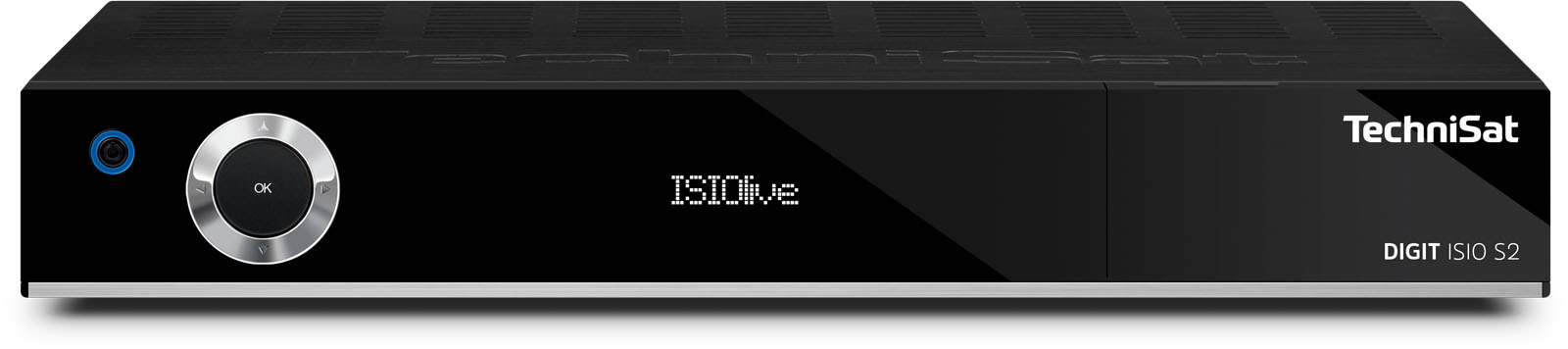

DIGIT ISIO S2
HDTV satellite receiver with twin tuner
| VPE Karton | Hard drive | VPE Palette | EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|---|---|
| 7 | extern | 168 | 4019588047563 | black anodised | 0000/4756 | 1,6 kg | 900 g | 28,6 x 4,6 x 15,5 cm | 37,2 x 8,4 x 17,6 cm |
| Top Features |
|---|
|
| Multimedia |
|---|
| DVR function: Ja |
| DVR storage medium: via USB |
| Timeshift: Yes |
| Recordings edition function: Yes |
| Recordings folder management: Yes |
| Ambient operating conditions |
|---|
| Humidity: 10 ... 75 % |
| Ambient temperature: 5 ... 35 °C |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 / SCR1 / SCR2 |
| TechniSat added value services |
|---|
| ISIPRO: Yes |
| TECHNIFAMILY: Yes |
| AUTOINSTALL: Yes |
| TECHNIMATIC: Yes |
| SFI: Yes |
| Internet/Network |
|---|
| Webbrowser: Yes |
| Internet speed test: Yes |
| HbbTV: Yes |
| ISIO Internet: Yes |
| HTML 5 support: Yes |
| Audio |
|---|
| AC3 Dolby Digital bitstream out: Yes |
| audio_klare_sprache: Yes über DVB |
| Card reader |
|---|
| SD card: Yes |
| Connections |
|---|
| HDMI™ (out): 1 |
| USB: 3 (USB 2.0) |
| Common Interface Plus (CI+): Yes |
| Smartcard reader: Yes |
| Digital electric audio output (S/PDIF): Yes |
| Digital optical audio out: Yes |
| Audio out analogue (RCA): Yes ( rechts / links ) |
| Scart: 1 Mini SCART (0000/3602) |
| Ethernet 10/100 (RJ-45): Yes |
| F socket: 2 |
| Connector for external IR-Receiver: 1 |
| DC IN: 1 |
| Decoder |
|---|
| Video decoder: MPEG-2 MP@HL/ML, H.264/MPEG-4 AVC |
| Audio decoder: MPEG-1 & MPEG-2 Layer I, II, III |
| Decryption system |
|---|
| Conax: Yes |
| CI+: Yes |
| Display |
|---|
| Picture in Picture (PIP): Yes (2x HD, 2x SD, 1x SD u. 1x HD) |
| Picture and Picture (PAP): Yes |
| Freeze frame: Yes |
| Zoom: Yes |
| SD: Yes |
| HD: Yes |
| 1080p: Yes |
| 1080i: Yes |
| 720p: Yes |
| 576p: Yes |
| 576i: Yes |
| Type: VF-Display |
| Handling/comfort |
|---|
| Page memory: 1.000 |
| Teletext: Yes |
| Teletext subtitles: Yes |
| Media Player: Yes |
| Clock: Yes |
| Sleep timer: Yes |
| Alarm: Yes |
| Ideal for camping: Yes |
| Autostandby: Yes |
| Remote control: Yes |
| Hotel mode: Yes |
| Quick start: Yes |
| Channel presets: 10.000 |
| Manual control elements: Yes |
| Selection regional channels: Yes |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Control panel lock: Yes |
| Integrated LED clock: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| Network & communication |
|---|
| TCP/IP: Yes |
| IPv4: Yes |
| DHCP: Yes |
| HTTP: Yes |
| UPnP: Yes |
| 100Base-T: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Power consumption |
|---|
| Standby fast start: 8,4 W |
| Standby LED: < 0,37 W |
| In operation: 13 W |
| Power supply |
|---|
| Mains adapter: external DC 12 V / 3 A |
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Streaming |
|---|
| DLNA Server: Yes |
| Cloud store: Ja |
| Parental Control: Yes |
| DLNA Client: Yes |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264 |
| Video-Formats: MKV, MP4, MOV, MPG, TS, TS4, VOB, WMV, AVI, ASF |
| Picture-Formats: BMP, JPEG, GIF, PNG, TIFF |
| Audio-Formats: WAV, MP3, AAC, FLAC, M4A, MP2, OGG, DDAC3 |
| TechniSat CONNECT |
|---|
| SFI: Yes |
| Tuner |
|---|
| Tuner type: Twin-Tuner |
| DVB-S tuner: 2 |
| Single Cable Solution (SatCR): SCR1 = EN50494, SCR2 = EN50607 |
| Satellite radio: Yes |
| Reception on: HD-TV, SD-TV |
| TECHNISELECT 12 ready: Yes |
| TECHNIROUTER ready: Yes |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 |
| DVB-S2: 8PSK-QPSK |
| DVB-S2: 10 ... 31 |
| FEC: Viterbi and Reed-Solomon |
| Scope of Delivery |
|---|
| DIGIT ISIO S2,TECHNICONTROL remote control with batteries, external mains adapter, HDMI cable, Instruction manual, warranty card |
Test Results DIGIT ISIO S2
Note: Sehr gut (93,5%)
SATVISION (09/2014)
KAUFTIPP
SFT (11/2014)
Testurteil: Sehr gut (1,3)
SFT (11/2014)
