TECHNIMOUNT FLEX

TECHNIMOUNT FLEX

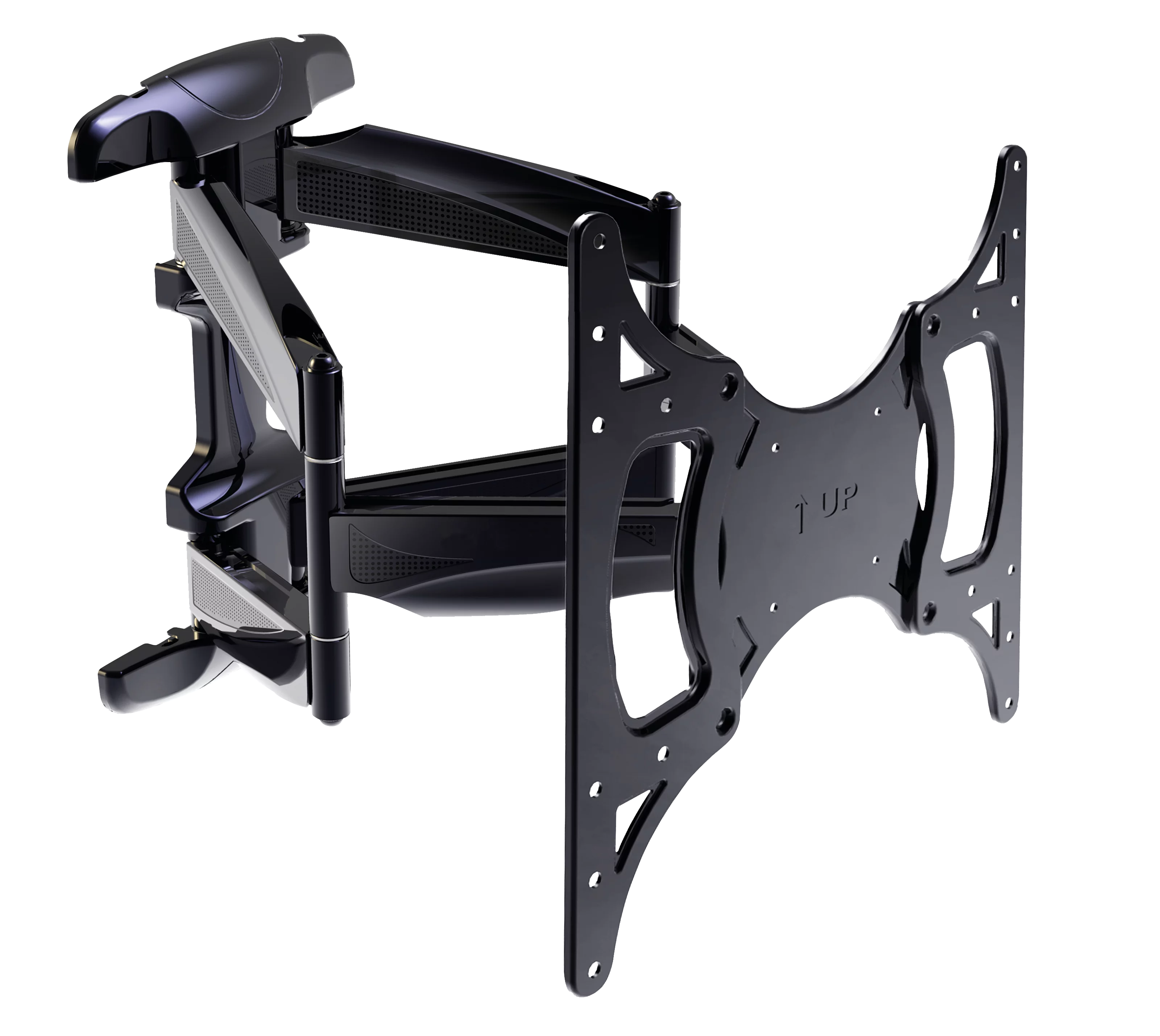

Full-motion TV wall bracket with dual articulated cantilever
Colour Distance from wall EAN Item no. Weight (Box) Weight Device (W x H x D) Box
black 47 mm 4019588227613 2020/2761 7,6 kg 6,6 kg 43 x 43 x 4,7 cm 57 x 43 x 7 cm
Top Features
  • Hole distance: VESA 100, 200, 400, 200 x 400
  • Weight capacity: max. 45 kg
  • Distance to the wall: 47 mm ... 486 mm
  • Tilt angle: -2° ... 12°
  • Swivel angle: ± 60° (depending on TV size)
  • attached bubble level for the horizontal adjustment
  • integrated cable routing in the articulated cantilever
  • Suitably for: TechniPlus ISIO, TechniLine Exklusiv, TechniSmart
  • Color: black
Filter-Navigation
Load capacity: 45 kg
General characteristics
Hole distance: VESA 100, 200, 300, 400, 200 x 400, 100 x 200, 200 x 300, 300 x 400
Load carrying capacity: max. 45 kg
Distance from wall: 47 ... 486 mm
Screen inclination: -2 ... 12 °
Recommended TV size: 26 ... 75 in
Integrated level: Yes (Bubble level)
Compatible with: TechniPlus ISIO, TechniLine Exklusiv, TechniSmart
Colour: black
Scope of Delivery
TECHNIMOUNT FLEX, mounting accessories, installation manual
