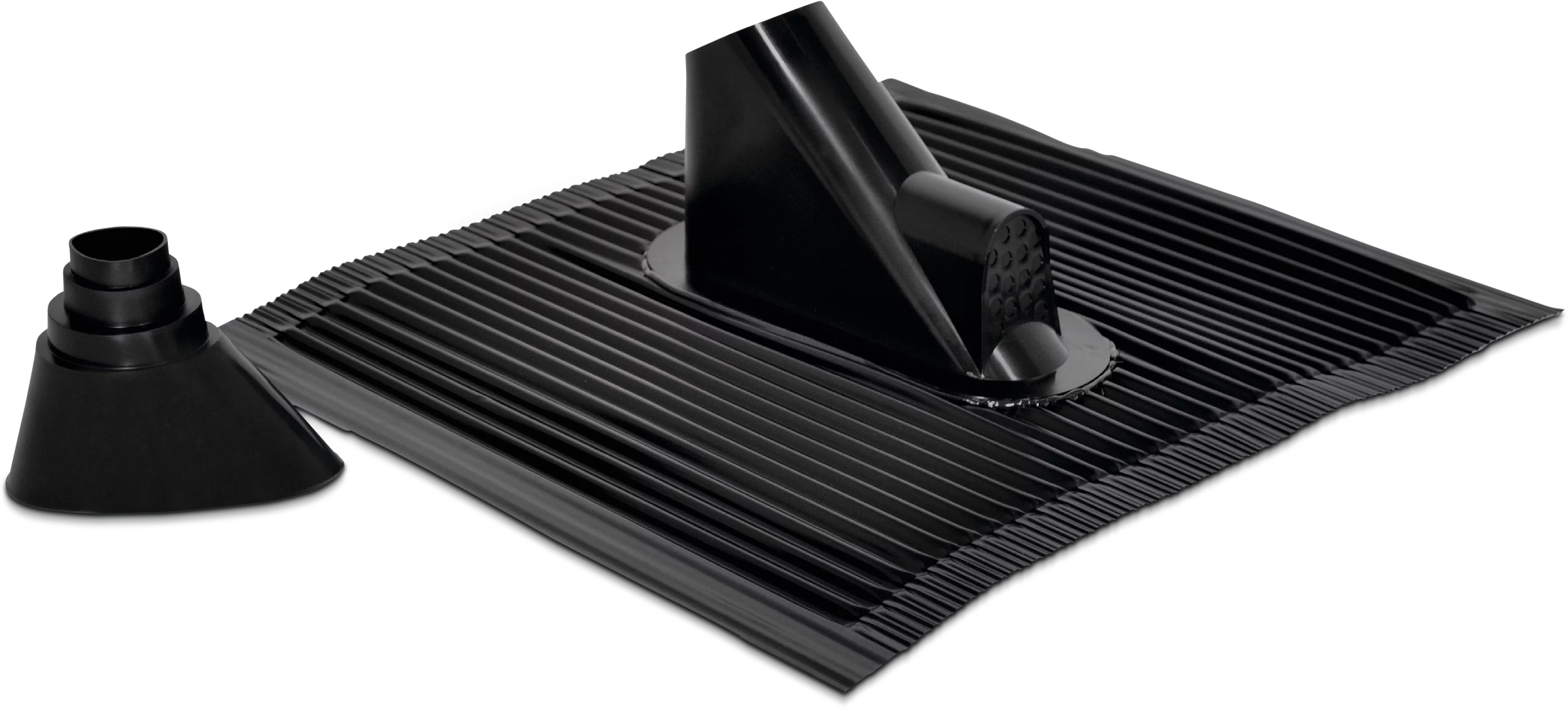

Alu Roof Tile

Alu Roof Tile

Roof entering for antenna mast

Colour	EAN	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
black	4019588817104	0000/1718	600 g	500 g	50 x 15 x 45 cm	24 x 15,5 x 48,5 cm
brick/red	4019588071186	0000/1719	600 g	600 g	50 x 15 x 45 cm	24 x 15,5 x 48,5 cm

Top Features

The aluminum roof tile allows a waterproof mast and cable entry, independent of the standard roof tile

Aluminum tile element measures 450 x 500 mm, adapts to all tile shapes and is suitable for all masts from 38-60 mm

For optimal sealing, the aluminum roof tile is equipped with strong adhesive, self-welding adhesive strips at the bottom edge and side edges

Cable entry for up to 16 cables at the mast base

General characteristics
Top features: Made of aluminium and plastic
Top features: In black or brick-red
Top features: Allows up to 16 cables to be fed into the base of the mast
Top features: Environmentally friendly - contains no heavy metals

Scope of Delivery
Alu roof tile, cover collar
