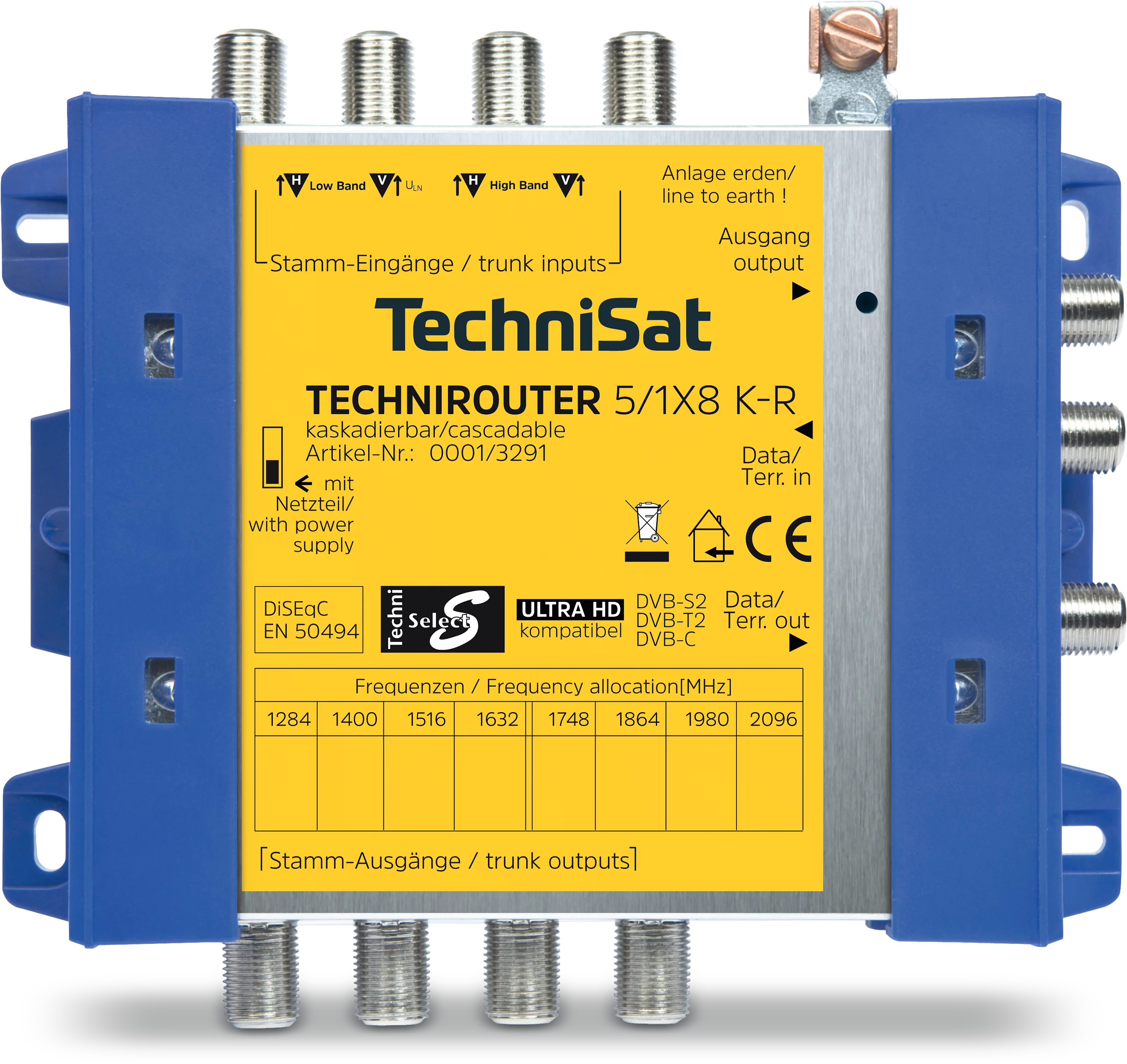

TECHNIROUTER 5/1x8 K-R
TECHNIROUTER-Kaskade, Rückkanal-tauglich. Ermöglicht den Anschluss von 4 ZF-Ebenen (SatBlöcke) und einem terrestrischen Eingang zur Verteilung auf einen Kabelstrang für 8 Teilnehmer
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588132917 | silber/gelb | 0001/3291 | 426 g | 260 g | 14 x 13 x 3,2 cm | 24,5 x 13,5 x 5,5 cm |
| sonstiges |
|---|
| bf_filter_number_of_participants: 8 |
| Ambient operating conditions |
|---|
| Ambient temperature: -25 ... 55 °C |
| Humidity: 10 ... 75 % |
| Amplification |
|---|
| Sat: 13 ... 18 dB |
| Terrestrial: -8 dB |
| Decoupling |
|---|
| Trunks: 45 dB |
| General characteristics |
|---|
| Top features: DiSEqC according to EN 50494 |
| Top features: 1 orbit position without restrictions |
| Top features: Return channel compatible |
| Top features: No new wiring required |
| Top features: Energy-saver - can be used without power supply |
| Top features: Can be integrated into a multi-switch distribution |
| Power supply |
|---|
| Power consumption: 210 mA @13V (SCR-Ausgang) |
| Reception range |
|---|
| Return path: 5 ... 65 MHz |
| Terrestrial: 65 ... 862 MHz |
| Sat: 950 ... 2.150 MHz |
| Single-cable output |
|---|
| Output frequency: 5 ... 2.150 MHz |
| Number of output channels: 8 |
| Frequency of the output channels: 1284, 1400, 1516, 1632, 1748, 1864, 1980, 2096 MHz |
| Frequency SAT: 950 ... 2.150 MHz |
| Frequency DVB-T: 65 ... 862 MHz |
| Technical data |
|---|
| Satellite inputs: 4 |
| Terrestrial input: 1 |
| Number of cable connections: 1 |
| Subscribers per cable: maximal 8 |
| Transmission loss |
|---|
| Sat: 2 ... 5 dB |
| Terrestrial: 2 ... 3 dB |
| Tuner |
|---|
| TECHNIROUTER ready: Yes |
| Scope of Delivery |
|---|
| TECHNIROUTER5/1x8 K-R, Bedienungsanleitung |
