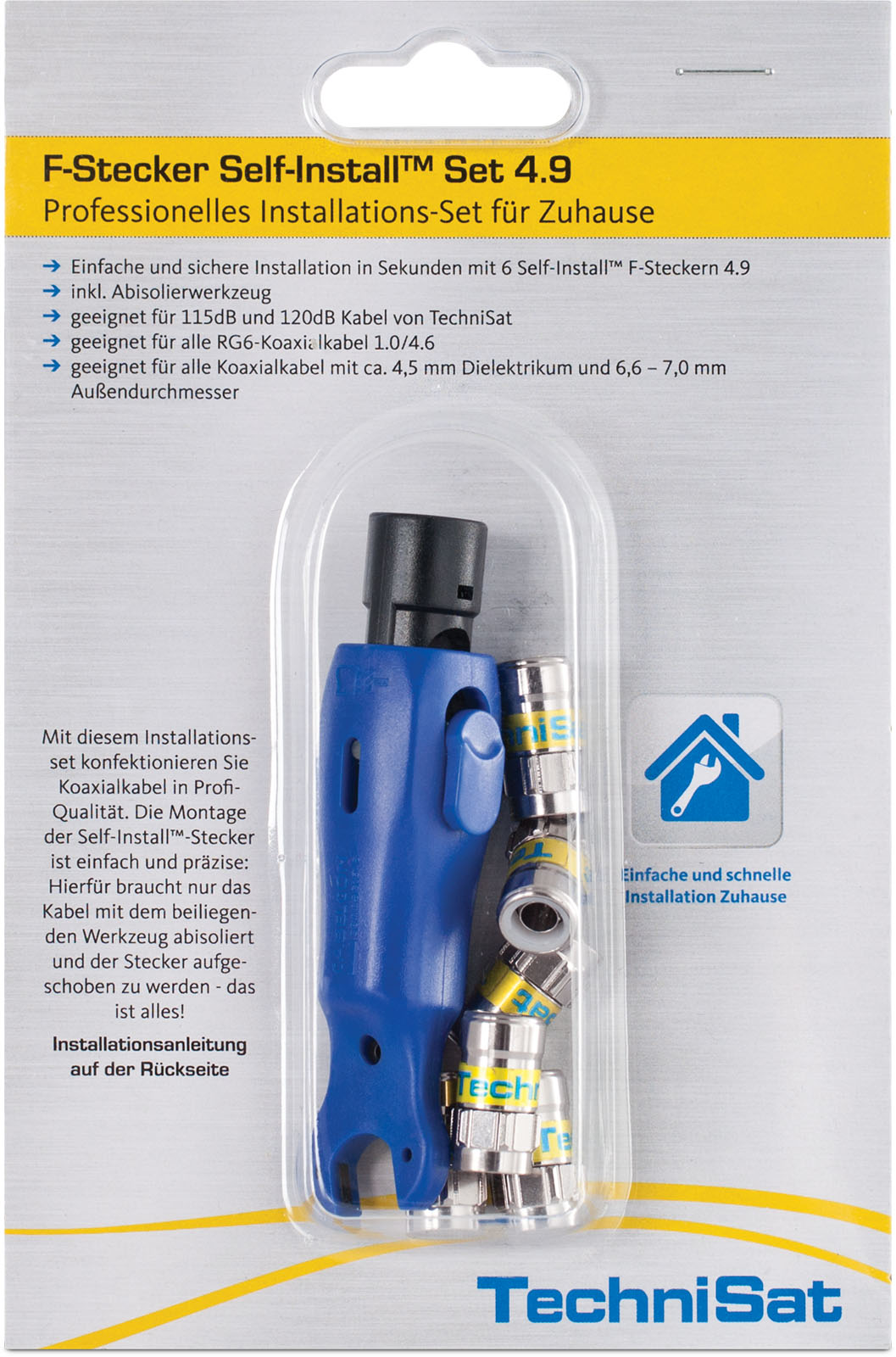

F plug Self-Install™ 4.9 set

F plug Self-Install™ 4.9 set

4.9 Professional Installation kit for home
EAN Colour Item no. Weight (Box) Weight Box
4019588633704 silver 0006/3370 100 g 100 g 12,2 x 18,7 x 2,5 cm
Top Features
  • Easy and safe installation in seconds
  • with 6 Self-Install™ F-connectors 4.9
  • including stripping tool
  • Suitable for 115dB and 120dB cables from TechniSat
  • Suitable for all RG6 coaxial cables 1.0/4.6
  • Suitable for all coaxial cables with approx. 4.5 mm dielectric and 6.6 - 7.0 mm outer diameter
Attenuation
10 MHz: 0,03
100 MHz: 0,03
450 MHz: 0,03
800 MHz: 0,05
862 MHz: 0,06
1000 MHz: 0,06
2250 MHz: 0,06
Return loss
30 - 65 MHz: ≥ 38 dB
65 - 470 MHz: ≥ 38 dB
470 - 1800 MHz: ≥ 26 dB
1800 - 2450MHz: ≥ 26 dB
Technical data
Impedance: 75 Ω
Transfer impedance
5MHz: ≤ 0,2
30 MHz: ≤ 0,2
Scope of Delivery
6 x F-connectors Self-Install™ 4.9<CRLF>1 x stripping tool<CRLF>
