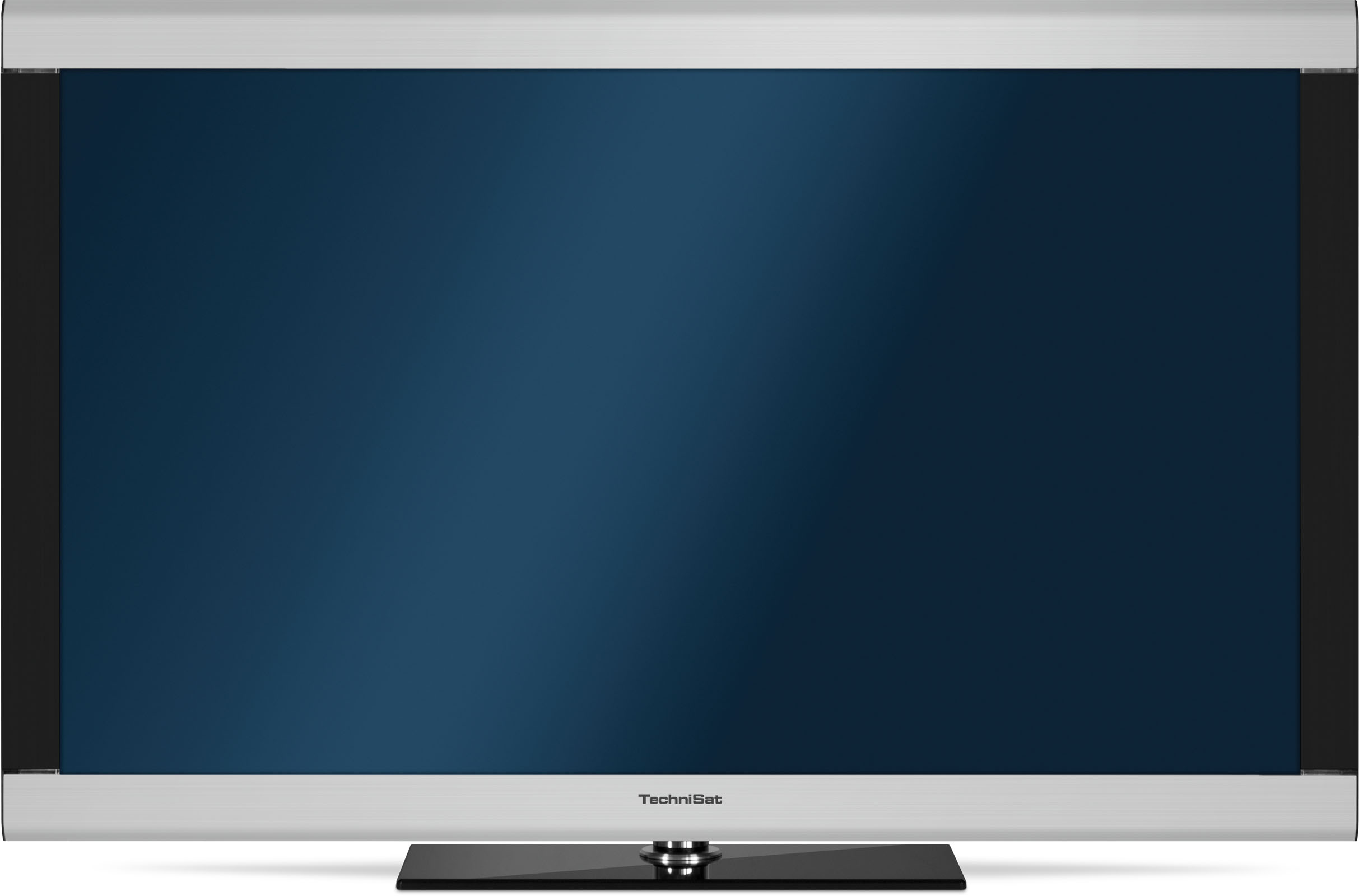

TECHNILINE 40 ISIO Exklusiv
Full-HD Smart-TV with QuattroTuner Twin for receiving digital television and radio including HDTV, integrated Internet functionality incl. HTML5 and digital video recorder function via USB and built-in 2.1 audio system in an elegant aluminum design. Supports control and streaming via MyTechniSat App.
| Colour | EAN | Item no. | Unit without stand (W x H x D) |
|---|---|---|---|
| silver mat/black mat | 4019588540606 | 5540/6500 | 972 x 602 x 74 mm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Ambient temperature: 5 ... 35 °C |
| Humidity: 10 ... 75 % |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 / Sat-CR |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Internet/Network |
|---|
| HbbTV: Yes |
| HTML 5 support: Yes |
| Audio |
|---|
| Speakers: 2.1 sound system with subwoofer (2x2W / 1x12W) |
| AC3 Dolby Digital bitstream out: Yes |
| Connections |
|---|
| HDMI™ (in): 3 |
| Digital electric audio output (S/PDIF): Yes |
| Digital optical audio out: Yes |
| Audio out analogue (RCA): Yes |
| Audio in/AUX in: Yes (3,5mm Klinke) |
| VGA: Yes |
| Scart: 1 |
| Ethernet 10/100 (RJ-45): Yes |
| F socket: 2 |
| IEC-Connector: Yes |
| Decryption system |
|---|
| CI+: Yes |
| Dimensions / Weight |
|---|
| Set width without stand: 972 mm |
| Set height without stand: 602 mm |
| Set depth without stand: 74 mm |
| Weight without stand: 16 kg |
| Display |
|---|
| Size (cm): 102 cm |
| Frequency: 200 Hz TechniMotion |
| Format: 16:9 |
| Contrast ratio: 5.000:1 |
| Picture in Picture (PIP): Yes (2 x SD, 1 x SD u. 1 x HD) |
| Brightness: 450 cd/m² |
| Response time: 6 ms |
| Angle of view: 178° V / 178° H |
| Picture and Picture (PAP): Yes (2 x SD, 1 x SD u. 1 x HD) |
| Freeze frame: Yes |
| Zoom: Yes |
| Resolution (vertical and horizontal): 1920 x 1080 |
| Type: Full-HD eLED |
| 1080i: Yes |
| SD: Yes |
| Size (inches): 40 |
| HD: Yes |
| 720p: Yes |
| General characteristics |
|---|
| Appearance: Slim 55mm |
| Handling/comfort |
|---|
| Alarm: Yes |
| Sleep timer: Yes |
| Clock: Yes |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Control panel lock: Yes |
| Radio mode: Yes |
| Alarm function: Yes |
| Sleep timer: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory: 5.000 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| Energy class: B |
| Standby fast start: < 19,6 W |
| In operation: 86 W |
| annual energy consumption when switched on: 126 kilowatt hour per annum |
| Standby: 0,05 W |
| Off status: 0 W |
| Power switch: Yes |
| Contains no mercury: Yes |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264, VC-1 |
| Video-Formats: MKV, MP4, MOV, MPG, TS, TS4, VOB, WMV, Xvid, M2TS, AVI, ASF |
| JPEG: Yes |
| Audio-Formats: AAC, MP3, MP2, DDAC3, WMA |
| Tuner |
|---|
| Tuner type: Doppel-QuattroTuner |
| DVB-S tuner: 2 |
| DVB-C Tuner: 2 |
| DVB-T Tuner: 2 |
| Analogue UHF/VHF/CATV tuner: 2 |
| Reception on: HDTV (MPEG-4 & 2), SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| TECHNISELECT 12 ready: Yes |
| TECHNISELECT K: Yes |
| Tuner - Analogue |
|---|
| Reception range: 47 ... 862 MHz |
| Video standards: PAL B/G, D/K, L/L, I |
| Tuner - Cable |
|---|
| Reception range: 47 ... 862 MHz |
| Demodulation: 16-, 32-, 64-, 128-, 256-QAM |
| Symbol rate: 1,5 ... 7,2 |
| FEC: Reed-Solomon (204, 188) |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 (MCPC / SCPC) |
| DVB-S2: 8PSK - QPSK |
| DVB-S2: 10 ... 31 (MCPC / SCPC) |
| FEC: RS, LDPC, BCH |
| Tuner - Terrestrial |
|---|
| Reception range 1: 174 ... 230 MHz |
| Reception range 2: 470 ... 862 MHz |
| Demodulation: COFDM (QPSK, 16-QAM, 64-QAM) |
| Transmission mode: 2k/8k |
| Bitrate: 4,98 ... 31,67 |
| FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
| Voltage supply: 5 V |
| Power supply: 0,03 A |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 200 x 200 |
| Scope of Delivery |
|---|
| TechniLine ISIO Exklusiv, Standfuß, Fernbedienung (TechniControl Plus mit www-Taste) inkl. 2 AAA Batterien, 230 V Euro-Netzanschlusskabel, Bedienungsanleitung, Kurzanleitung inkl. Garantiekarte. |
