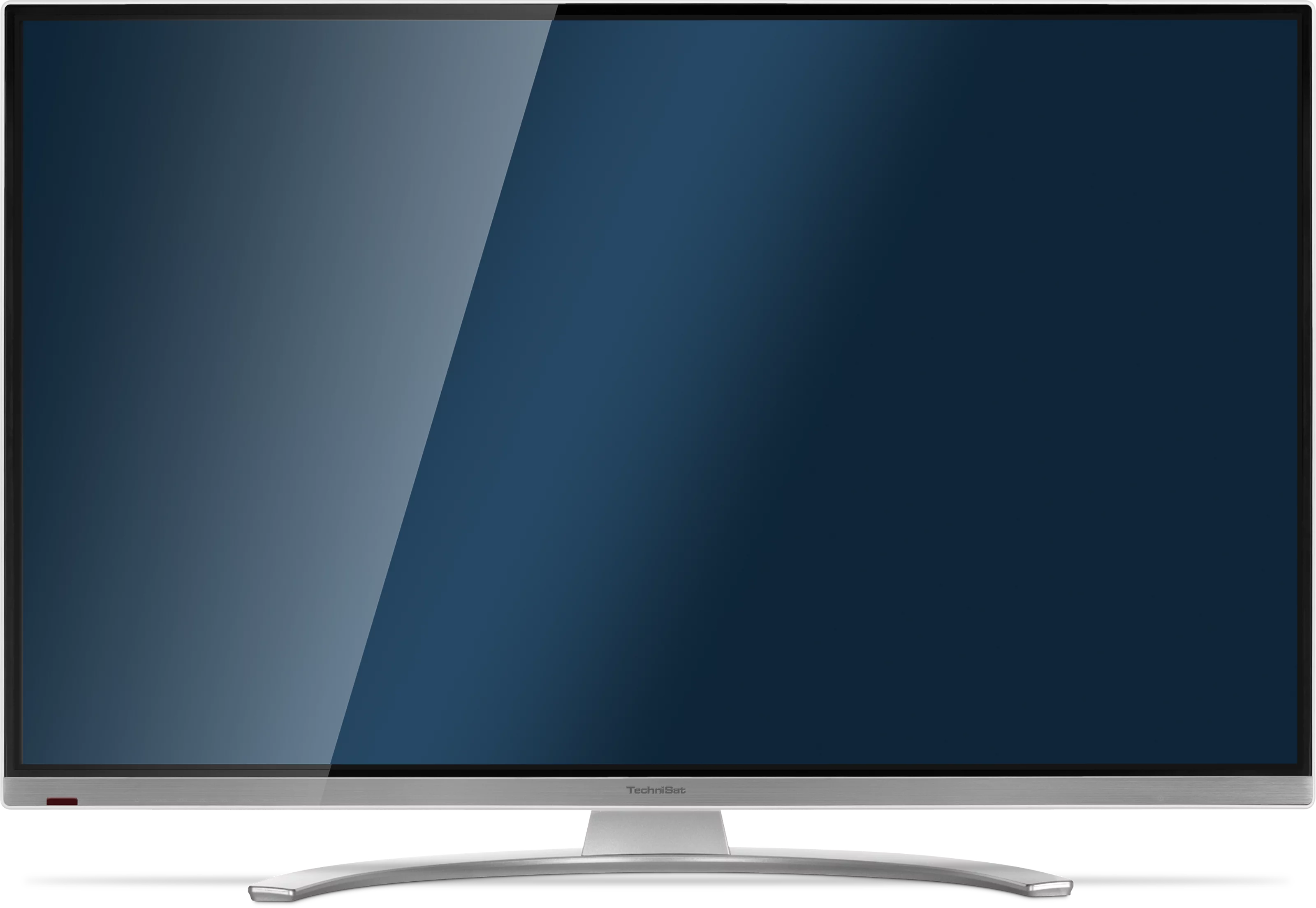

TECHNIPLUS ISIO 32

Ambient operating conditions
Ambient temperature: 5 ... 35 °C
Humidity: 10 ... 75 %

LNB control
Vertical: 14 V
Horizontal: 18 V
Band switch: 22 kHz
Current consumption: max. 400 mA (kurzschlussfest)
DiSEqC: 1.0 / 1.2 / Sat-CR

TechniSat added value services
SFI+: Yes
TECHNIFAMILY: Yes
ISIPRO: Yes
AUTOINSTALL: Yes
TECHNIMATIC: Yes

Internet/Network
ISIO Internet: Yes
HbbTV: Yes
VoD services: Ja
Webbrowser: Yes
Internet speed test: Yes
HTML 5 support: Yes

Audio
Speakers: 2 x 1-way sound system
AC3 Dolby Digital bitstream out: Yes

Connections
HDMI™ (in): 3
Digital electric audio output (S/PDIF): Yes
Digital optical audio out: Yes
Audio out analogue (RCA): Yes
Audio in/AUX in: Yes (3,5mm Klinke)
Scart: 1 (über Adapter)
Ethernet 10/100 (RJ-45): Yes
F socket: 2
IEC-Connector: Yes

Decryption system
CI+: Yes

Dimensions / Weight
Set depth without stand: 63 mm
Set height without stand: 445 mm
Set width without stand: 735 mm
Weight without stand: 9 kg

Display
Size (cm): 81 cm
Frequency: 200 Hz TechniMotion
Format: 16:9
Contrast ratio: 1200:1
Picture in Picture (PIP): Yes (2 x SD, 1 x SD u. 1 x HD)
Brightness: 310 cd/m²
Response time: < 9 ms
Angle of view: 178° / 178°
Picture and Picture (PAP): Yes (2 x SD, 1 x SD u. 1 x HD)
Freeze frame: Yes
Zoom: Yes
Type: HD eLED
1080i: Yes
Resolution (vertical and horizontal): 1366 x 768
Size (inches): 32
SD: Yes
HD: Yes
720p: Yes

General characteristics
Appearance: Slim 55mm

Handling/comfort
Quick start: Yes
Parental Control: Ja
Media Player: Yes
Channel number mix: Yes
Teletext: Yes
Autostandby: Yes
Hotel mode: Yes
Clock: Yes
Alarm: Yes
Sleep timer: Yes

Hotel mode
Protected access to hotel mode: Yes
Customisable start screen: Yes
Energy card function: Yes
USB cloning function: Yes
Multimedia connectors: Yes
Lockable volume: Yes
Menu locking: Yes
Control panel lock: Yes
Radio mode: Yes
Alarm function: Yes
Sleep timer: Yes
Mixing of channel slots: Yes
Multicode remote control: Yes
Selectable start source: Yes
Selectable start channel: Yes

materials contained
Lead: Yes

Other features
OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian
Total programme memory: 5.000
Regional channel selection: Yes

Power consumption
SFIplus updating: 17 W
Software update: 17 W
Energy class: A
Standby fast start: 16 W
In operation: 42 W
annual energy consumption when switched on: 58 kilowatt hour per annum
Standby: 0,3 W
Off status: 0 W
Power switch: Yes
Contains no mercury: Yes

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Mains adapter: internal

Supported formats & codecs
Video-Codecs: MPEG-2, MPEG-4, H.264, VC-1
Video-Formats: MKV, MP4, MOV, MPG, TS, TS4, VOB, WMV, Xvid, M2TS, AVI, ASF
JPEG: Yes
Audio-Formats: AAC, MP3, MP2, DDAC3, WMA

Tuner
Tuner type: Doppel-QuattroTuner
DVB-S tuner: 2
DVB-C Tuner: 2
DVB-T Tuner: 2
Analogue UHF/VHF/CATV tuner: 2
Reception on: HDTV (MPEG-4), SD (MPEG-2)
Input impedance: 75 Ω
TECHNIROUTER ready: Yes
TECHNISELECT 12 ready: Yes

Tuner - Analogue
Reception range: 47 ... 862 MHz
Video standards: PAL B/G, D/K, L/L, I

Tuner - Cable
Reception range: 47 ... 862 MHz
Demodulation: 16-, 32-, 64-, 128-, 256-QAM
Symbol rate: 1,5 ... 7,2
FEC: Reed-Solomon (204, 188)

Tuner - Sat
Reception range: 950 ... 2.150 MHz
DVB-S: QPSK
DVB-S: 2 ... 45 (MCPC / SCPC)
DVB-S2: 8PSK - QPSK
DVB-S2: 10 ... 31 (MCPC / SCPC)
FEC: RS, LDPC, BCH

Tuner - Terrestrial
Reception range 1: 174 ... 230 MHz
Reception range 2: 470 ... 862 MHz
Demodulation: COFDM (QPSK, 16-QAM, 64-QAM)
Transmission mode: 2k/8k
Bitrate: 4,98 ... 31,67
FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8
Voltage supply: 5 V
Power supply: 0,03 A

wall bracket
VESA wall mounting standards: VESA 200 x 100
