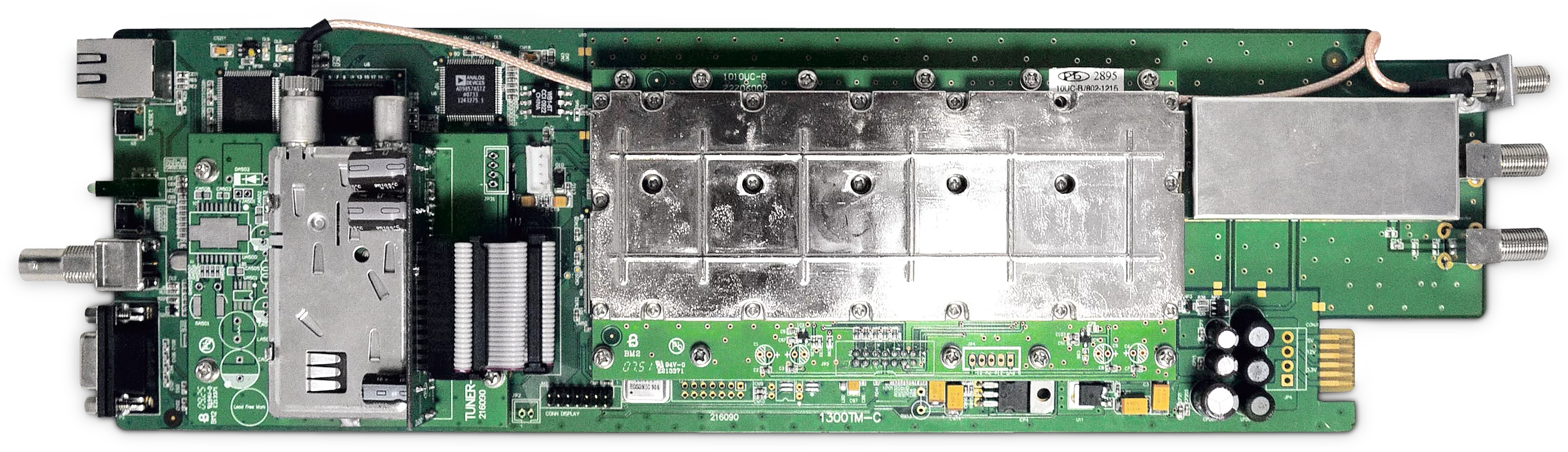

ASI/DVB-T Transmodulator
Professional DVB-T modulator
| Colour | EAN | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| Silber | 4019588059788 | 0000/5978 | 300 g | 300 g | 4 x 11 x 40,5 cm | 6 x 23,3 x 48,5 cm |
| Ambient operating conditions |
|---|
| Ambient temperature: 0 ... 45 °C |
| Humidity: 10 ... 90 % |
| ASI input |
|---|
| Interface: BNC-socket, 75 Ohm |
| Effective data rate: 100 |
| DVB-T output |
|---|
| Modulation: QPSK, 16-QAM, 64-QAM |
| Channel bandwidth: 6, 7, 8 MHz |
| FFT mode: 2k |
| Guard interval: 1/4, 1/8, 1/16, 1/32 |
| FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
| Symbol rate: 6,75 @ 8MHz BW |
| I/Q amplitude error: < 0,3 % |
| I/Q phase error: < 0,3 ° |
| Phase jitter: < 0,5 ° |
| MER: > 36 dB (64-QAM, Equalizer) |
| Frequency range: 48 ... 860 MHz (10 kHz Schrittweite) |
| Output level: 97 ... 110 (1 dB Schrittweite) |
| Secondary wave suppression: > 55 dB |
| Signal output: F-Socket |
| Output impedance: 75 Ω |
| Return loss: > 12 dB |
| General characteristics |
|---|
| Top features: DVB-T modulator / EN 300744 |
| Top features: ASI input |
| Top features: Output frequency range from 48-860 Mhz (K2 to K69); suitable for adjacent channels |
| Top features: output leven adjustable from 97-110 dBµV |
| Top features: NIT generation |
| Scope of Delivery |
|---|
| TechniNet ASI/DVB-T transmodulator, Front panel, Back panel, Ethernet Patch-cable, BNC-connection cable |
