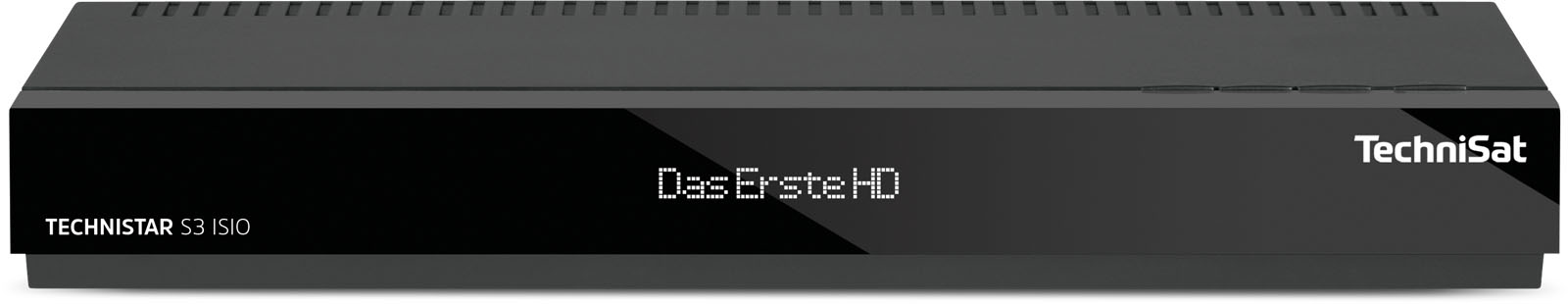

TECHNISTAR S3 ISIO
HDTV satellite receiver with twin tuner
| Colour | EAN | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| black | 4019588047488 | 0000/4748 | 1 kg | 520 g | 28 x 3,8 x 13,5 cm | 39,5 x 5,8 x 21,5 cm |
| Top Features |
|---|
|
| Multimedia |
|---|
| DVR function: USB |
| Timeshift: Yes |
| Ambient operating conditions |
|---|
| Humidity: 10 ... 75 % |
| Ambient temperature: 5 ... 35 °C |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 |
| TechniSat added value services |
|---|
| SFI: Yes |
| TECHNIMATIC: Yes |
| TECHNIFAMILY: Yes |
| ISIPRO: Yes |
| AUTOINSTALL: Yes |
| Internet/Network |
|---|
| Webbrowser: Yes |
| Internet speed test: Yes |
| HbbTV: Yes |
| ISIO Internet: Yes |
| HTML 5 support: Yes |
| Connections |
|---|
| HDMI™ (out): 1 |
| USB: 2 (USB 2.0) |
| Common Interface Plus (CI+): Yes |
| Smartcard reader: Yes |
| Digital electric audio output (S/PDIF): Yes |
| Audio out analogue (RCA): Yes ( rechts / links ) |
| Scart: 1 |
| Ethernet 10/100 (RJ-45): Yes |
| F socket: 1 |
| Connector for external IR-Receiver: 1 |
| Decryption system |
|---|
| Conax: Yes |
| CI+: Yes |
| Display |
|---|
| Freeze frame: Yes |
| Zoom: Yes |
| SD: Yes |
| HD: Yes |
| 1080i: Yes |
| 720p: Yes |
| 576p: Yes |
| 576i: Yes |
| Handling/comfort |
|---|
| Teletext subtitles: Yes |
| Media Player: Yes |
| Sleep timer: Yes |
| Alarm: Yes |
| Channel presets: 5.000 |
| Teletext: Yes |
| Ideal for camping: Yes |
| Clock: Yes |
| Quick start: Yes |
| Autostandby: Yes |
| Parental Control: Ja |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Control panel lock: Yes |
| Integrated LED clock: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Power consumption |
|---|
| Standby fast start: 5,48 W |
| Standby LED: 0,2 W |
| In operation: 10 W |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: external DC12V/3A DC 12 V / 2,0 A |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, H.264, VC-1 |
| Video-Formats: MKV, MP4, MOV, TS, TS4, VOB, WMV, M2TS, AVI, ASF |
| JPEG: Yes |
| Audio-Formats: AAC, MP3, MP2, DDAC3 |
| TechniSat CONNECT |
|---|
| SFI: Yes |
| Tuner |
|---|
| Tuner type: DigitalSat |
| DVB-S tuner: 1 |
| Single Cable Solution (SatCR): SCR1 = EN50494 |
| Reception on: HD-TV, SD-TV, DVB-Radio |
| TECHNIROUTER ready: Yes |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 |
| DVB-S2: 8PSK - QPSK |
| DVB-S2: 10 ... 31 |
| FEC: Viterbi and Reed-Solomon |
| Scope of Delivery |
|---|
| TECHNISTAR S3 ISIO, remote control (incl. batteries), external power supply, manual, warranty card |
