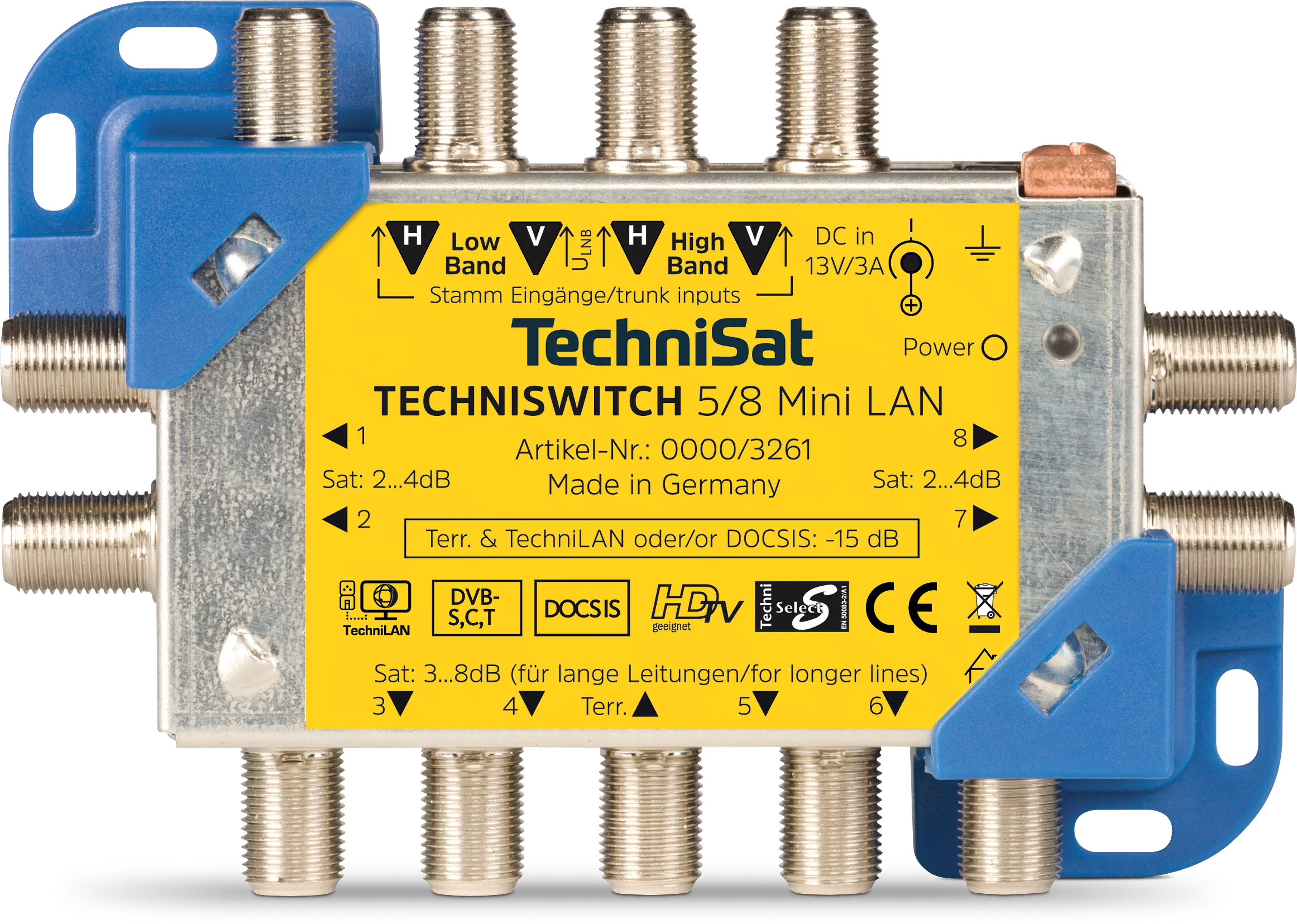

TECHNISWITCH 5/8 Mini LAN

TECHNISWITCH 5/8 Mini LAN

Compact multiswitch for distribution of 4 IF levels and terrestrial signals for 8 participants. Including TECHNILAN support to distribute Internet and other network services over the existing satellite wiring
EAN Colour Item no. Weight (Box) Weight Device (W x H x D) Box
4019588032613 blue/yellow 0000/3261 500 g 160 g 7,9 x 3,3 x 11,5 cm 23 x 6 x 15,2 cm
Top Features
  • The multiswitch distributes one orbital position (4 satellite blocks) to up to 8 subscribers, incl. LAN and injection of DVB-T/DAB+/FM or cable TV for analog, digital, HD, 3D operation
  • Scope of delivery: 1 x TECHNISWITCH 5/8 MINI LAN and user manual – In best quality from TechniSat
  • The transmission of DOCSIS signals from the distributor allows simultaneous use of internet and telephone services from cable providers
  • All outputs are slope pre-compensated, enabling cable lengths of up to 100m from the LNB to the antenna socket
  • incl. LAN connection for distributing internet & network services via satellite wiring (corresponding satellite sockets required) – no external power supply needed
Ambient operating conditions
Humidity: 10 ... 75 %
Ambient temperature: -25 ... 45 °C
Amplification
Sat: 2 ... 4 dB , bottom taps 3 ... 8 dB
Terrestrial: -15 dB
Decoupling
Output: > 30 dB
General characteristics
Top features: Gain in satellite range
Top features: Slope fixed correction
Top features: For Quattro-LNB
Top features: TechniLAN suitable
Top features: Input for terrestrial signals
Top features: Suitable for DOCSIS
Power supply
Mains adapter: Extern, DC 13 V / 3 A
Nominal voltage: 100 ... 240 V
Frequency: 50 ... 60 Hz
Reception range
Sat: 950 ... 2.150 MHz
Terrestrial: 80 ... 790 MHz
Return path: 2 ... 65 MHz
Technical data
Satellite inputs: 4
Terrestrial input: 1
Outputs: 8
Distribution length: max. 100 m
Scope of Delivery
TECHNISWITCH 5/8 Mini LAN, instruction manual, power supply (13 V/3 A)
