TECHNISWITCH 5/8 Mini

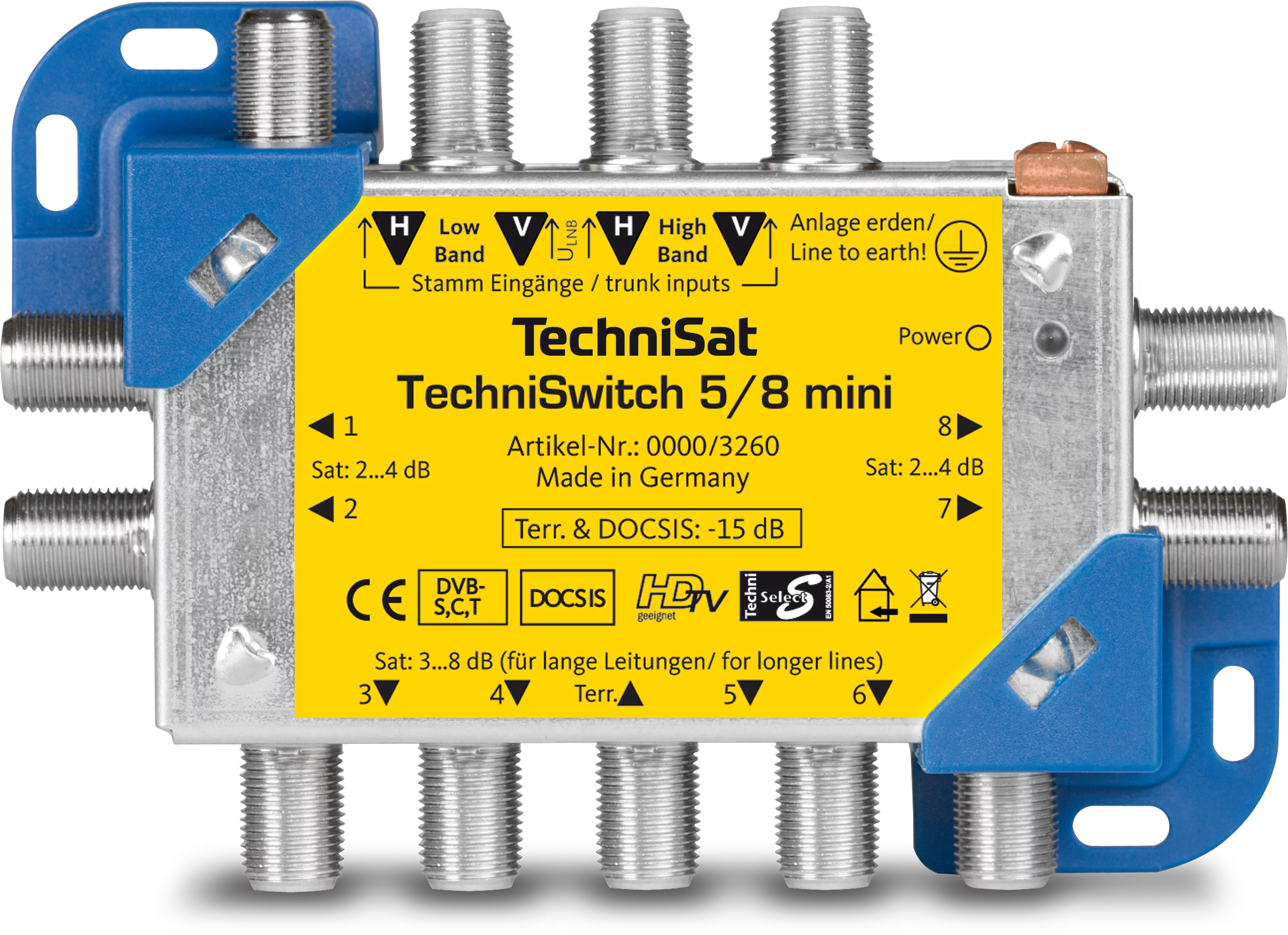

TECHNISWITCH 5/8 Mini

Compact multiswitch for distribution of 4 IF levels and terrestrial signals for 8 participants.
EAN Colour Item no. Weight (Box) Weight Device (W x H x D) Box
4019588032606 blue/yellow 0000/3260 200 g 160 g 7,9 x 3,3 x 11,5 cm 9,5 x 4 x 12,2 cm
Top Features
  • The multiswitch distributes one orbital position (4 satellite blocks) to up to 8 users, including injection of DVB-T/DAB+/FM or cable TV for analog, digital, HD, 3D operation
  • Package includes: 1 x TECHNISWITCH 5/8 MINI and user manual – in top quality from TechniSat
  • DOCSIS signal transmission enables simultaneous use of internet and telephone services from cable providers
  • All outputs are pre-compensated for slope, allowing cable lengths of up to 100 meters from LNB to antenna socket
  • Energy-efficient multiswitch is powered by the receiver and does not require an external power supply
Ambient operating conditions
Humidity: 10 ... 75 %
Ambient temperature: -25 ... 45 °C
Amplification
Sat: 2 ... 4 dB , bottom taps 3 ... 8 dB
Terrestrial: -15 dB
Decoupling
Output: > 30 dB
General characteristics
Top features: Gain in satellite range
Top features: Slope fixed correction
Top features: For Quattro-LNB
Top features: Energy saving - usable without mains adapter
Top features: Input for terrestrial signals
Top features: Suitable for DOCSIS
Reception range
Sat: 950 ... 2.150 MHz
Terrestrial: 2 ... 790 MHz
Technical data
Satellite inputs: 4
Terrestrial input: 1
Outputs: 8
Distribution length: max. 100 m
Scope of Delivery
TECHNISWITCH 5/8 Mini, instruction manual
