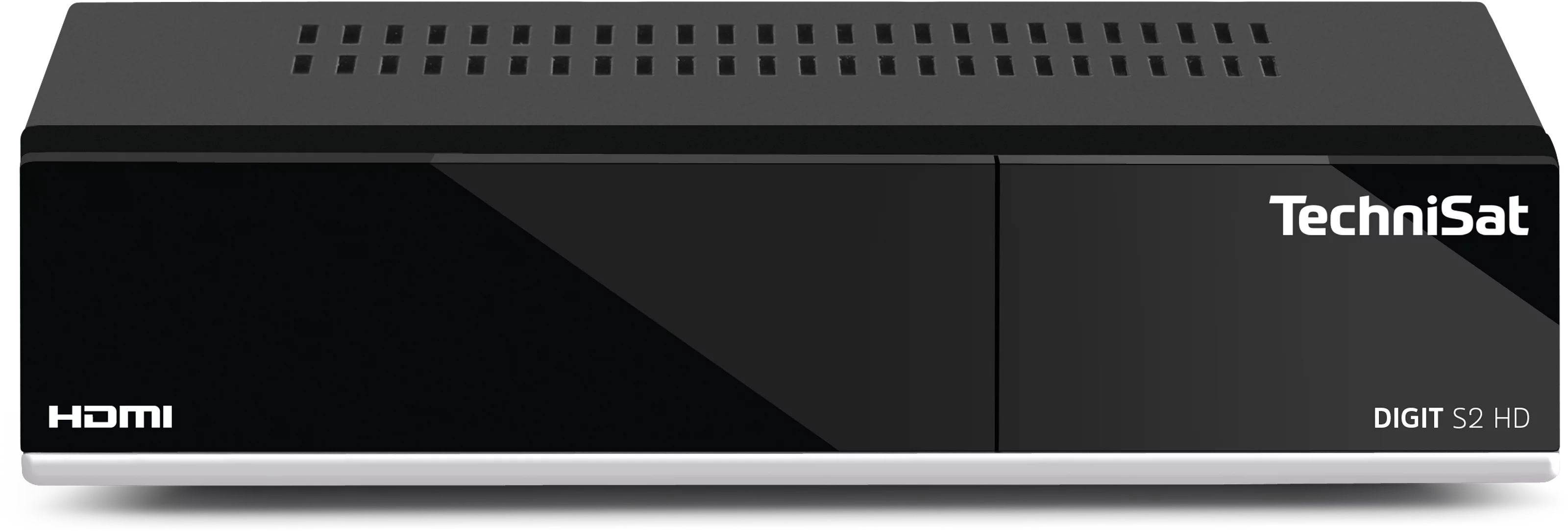

DIGIT S2 HD
Compact Set-Top-box for the reception of FTA channels via satellite, also in HD-quality
| EAN | Colour | Item no. |
|---|---|---|
| 4019588047389 | black | 0000/4738 |
| 4019588147386 | black | 0001/4738 |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Humidity: 10 ... 75 % |
| Ambient temperature: 5 ... 35 °C |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Audio |
|---|
| Clear language from ARD: Yes über DVB |
| Connections |
|---|
| HDMI™ (out): 1 |
| USB: 1 (USB 2.0) |
| Digital electric audio output (S/PDIF): Yes |
| Scart: 2 |
| F socket: 1 |
| Display |
|---|
| Freeze frame: Yes |
| Zoom: Yes |
| 576p: Yes |
| 720p: Yes |
| HD: Yes |
| 1080p: Yes |
| SD: Yes |
| 1080i: Yes |
| 576i: Yes |
| Handling/comfort |
|---|
| Sleep timer: Yes |
| Alarm: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory: 4.000 |
| Regional channel selection: Yes |
| Loopthrough: Yes |
| Power consumption |
|---|
| Standby fast start: 3,1 W |
| Standby LED: 0,46 W |
| In operation: 6 W |
| Power supply |
|---|
| Mains adapter: intern |
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Supported formats & codecs |
|---|
| Video-Codecs: H.264, MPEG-2 |
| Video-Formats: MKV, MP4, MOV, TS, TS4, VOB, M2TS, AVI |
| JPEG: Yes |
| Audio-Formats: MP2, MP3, OGG |
| Tuner |
|---|
| Tuner type: DigitalSat |
| DVB-S tuner: 1 |
| Single Cable Solution (SatCR): SCR1 = EN50494 |
| Reception on: HDTV (MPEG-4 & 2), SD (MPEG-2) |
| TECHNIROUTER ready: Yes |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 |
| DVB-S2: 8PSK - QPSK |
| DVB-S2: 10 ... 31 |
| FEC: RS, LDPC, BCH |
| Scope of Delivery |
|---|
| DIGIT S2 HD, remote control (incl. batteries), manual |
Test Results DIGIT S2 HD
Energiesparer
SATVISION (05/2013)
Testsieger / Note: Gut / 81,5%
SATVISION (05/2013)
