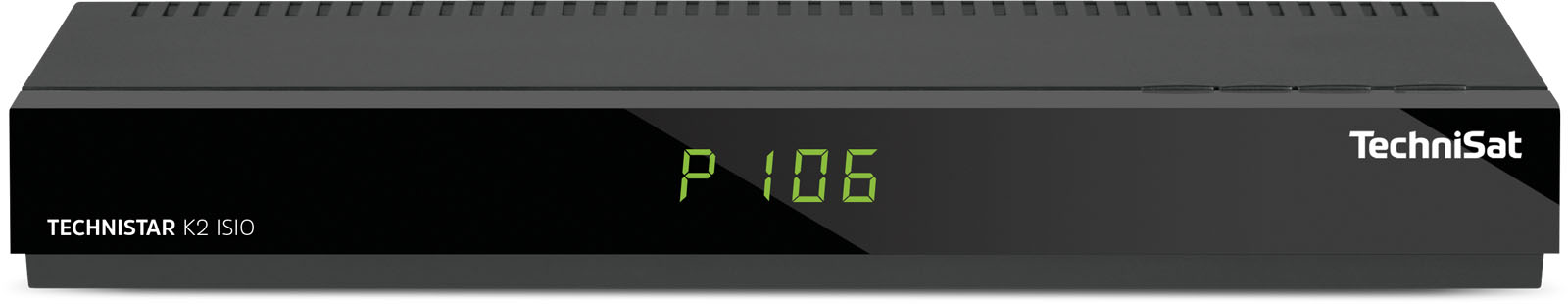

TECHNISTAR K2 ISIO
HDTV DVB-C Set-Top-Box with integrated Conax CAS, Chipset-Pairing, Internet access and DVR functionality via USB for the record of TV- and radio channels to an external HDD
| Packaging unit: pallet | EAN | Colour | Item no. | Hard drive | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|---|
| 188 | 4019588047778 | black | 0000/4777 | extern GigaByte | 1,17 kg | 500 g | 28 x 3,8 x 13,5 cm | 39,6 x 5,6 x 21,2 cm |
| Top Features |
|---|
|
| Multimedia |
|---|
| DVR function: Ja |
| DVR storage medium: via USB |
| Timeshift: Yes |
| Recordings edition function: Yes |
| Recordings folder management: Yes |
| Ambient operating conditions |
|---|
| Humidity: 10 ... 75 % |
| Ambient temperature: 5 ... 35 °C |
| TechniSat added value services |
|---|
| TECHNIFAMILY: Yes |
| AUTOINSTALL: Yes |
| ISIPRO cable: Yes |
| TECHNIMATIC: Yes |
| SFI: Yes |
| Internet/Network |
|---|
| Internet speed test: Yes |
| ISIO Internet: Yes |
| HbbTV: Yes |
| Webbrowser: Yes |
| Connections |
|---|
| HDMI™ (out): 1 |
| USB: 2 (USB 2.0) |
| Common Interface Plus (CI+): Yes |
| Smartcard reader: Yes |
| Digital electric audio output (S/PDIF): Yes |
| Audio out analogue (RCA): Yes |
| Scart: 1 |
| Ethernet 10/100 (RJ-45): Yes |
| IEC-Connector: Yes |
| IEC (out): 1 |
| Connector for external IR-Receiver: 1 |
| Decoder |
|---|
| Video decoder: MPEG-2: MP@HL/ML, MPEG4/AVC: MP@L3, HP@L4 |
| Audio decoder: MPEG-1 & MPEG-2 Layer I, II, III |
| Decryption system |
|---|
| Conax: Yes |
| Conax CSP: Yes |
| CI+: Yes |
| Display |
|---|
| Freeze frame: Yes |
| SD: Yes |
| HD: Yes |
| 1080i: Yes |
| 720p: Yes |
| 576i: Yes |
| Type: 7-Segment, 4-stellig, grün |
| General characteristics |
|---|
| Hard drive: external GigaByte |
| Handling/comfort |
|---|
| Autostandby: Yes |
| Clock: Yes |
| Sleep timer: Yes |
| Alarm: Yes |
| Teletext: Yes |
| Ideal for camping: Yes |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Control panel lock: Yes |
| Integrated LED clock: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Italian, Lithuanian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory: 5.000 |
| Loopthrough: Yes |
| Power consumption |
|---|
| Standby fast start: 5,5 W |
| Standby LED: 0,23 W |
| In operation: 8 W |
| Power supply |
|---|
| Mains adapter: external DC 12V/1,5A |
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Ready for reception |
|---|
| M7: Yes |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264, DivX, VC-1 |
| Video-Formats: MKV, MP4, MOV, TS, TS4, VOB, WMV, Xvid, M2TS, AVI, ASF |
| Picture-Formats: BMP, JPEG, PNG |
| Audio-Formats: AAC, MP3, MP2, DDAC3 |
| TechniSat CONNECT |
|---|
| SFI: Yes |
| Tuner |
|---|
| Tuner type: DigitalCable |
| DVB-C Tuner: 1 |
| Cable radio: Yes |
| Reception on: HD-TV, SD-TV, radio |
| DVB-IP (multicast): 1 |
| Tuner - Cable |
|---|
| Reception range: 47 ... 862 MHz |
| Demodulation: 16 / 32 / 64 / 128 / 256 QAM |
| Symbol rate: 1,5 ... 7,2 |
| FEC: Reed-Solomon (204, 188) |
| Scope of Delivery |
|---|
| TECHNISTAR K2 ISIO, remote control TechniControl (inkl. batteries), external power supply, HDMI cable, antenna cabel, manual |
Test Results TECHNISTAR K2 ISIO
Kabel-Receiver Test: Testurteil Gut (2,0)
KABEL-BLOG.DE TEST (05/2014)
Testurteil sehr gut (1,4)
Heimkino (4/5-2013)
Testurteil Spitzenklasse ( 1,4) | Preis/Leistung: sehr gut
Digital Home (02/2013)
Testurteil Sehr gut (92,0%)
Satvision (03/2013)
